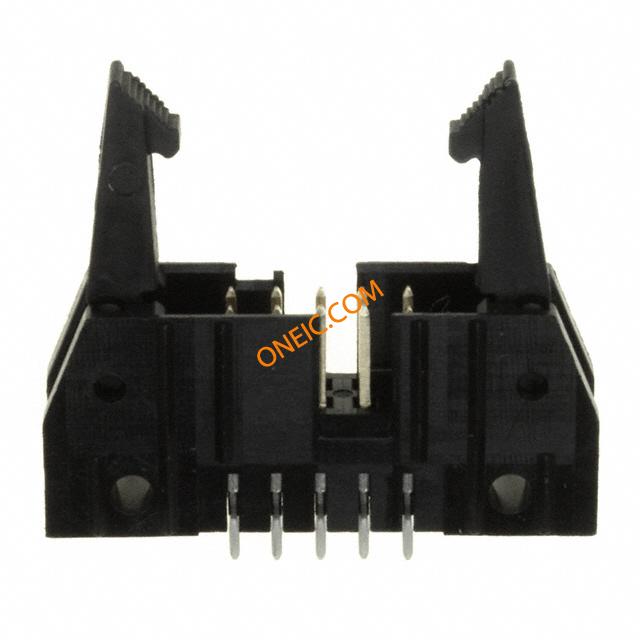

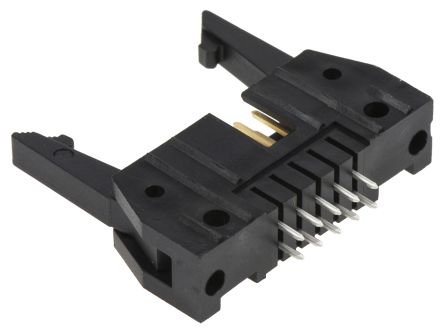

5499922-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 10 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 102.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 10WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,10POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 10P VERT LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 54 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 最大额定电流 | 1A |
| 绝缘电阻 | :1Gohm | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 27.31 mm |
| 长度 | :32.1mm | 重量 | 0.0508 |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Dual Polarizing Bar, Military | 第二连接器 | With |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Universal Ejection Pin Headers |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 紧固类型 | Latch, Long/Eject Hooks |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 4-Sided | 电路板厚度 | 1.57 [0.062] |
| 锁定特性 | Latch | 外形（宽 x 高） | Standard |
| 触头材料 | :Brass, Phosphor Bronze | 壳体材料 | Thermoplastic |
| 总长度 | 32 mm | 主要材料 | InterconnectSystem |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 配接方向 | With | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 [0.110] |
| 接触镀层厚度 | 15µin (0.38µm) | 安装面板厚度 | :27.94mm |
| 第一连接器安装类型 | :Straight | ||
产品信息
| 备注 | Pin headers in 10- and 14-position sizes have only one slot for snap-in polariz | 类型 | Ejector Header |
| 连接器性别 | HDR | 系列 | 5499922 |
| 极性 | :Bump/Clip | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :50 | 温度额定值 | Standard |
| 工作温度 | -65C to 105C | ||
