点击放大查看

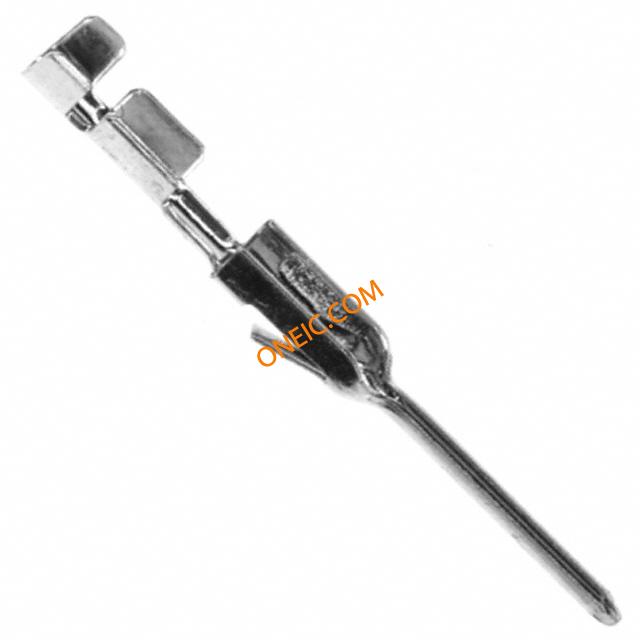

102107-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN PIN 22-26AWG TIN CRIMP Headers & Wire Housings CRIMP SNAP-IN PINS 26-22 AWG 102107-3 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:Crimp Snap-In PinsWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MOD IV PIN LP |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189 |
电气参数
| 额定电压 | 250 VAC | 供电电压 | 250 |
| 接触电阻 | 12 mΩ | 输入电阻 | 5000 |
| 钳位电压 | 750 | 连接器阻抗 | 压接 |
| 最大额定电流 | 3 A | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | 分离式导线 |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin Over Nickel |
| 压力（PSI） | 标准 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | 1000 |
| 绝缘高度 | 是 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 接触件端接 | Crimp |
| 绝缘直径 | 1.55 mm [ .061 in ] | 镀层厚度（通用） | 锡 |
| 兼容外壳尺寸（如TM-700等） | 母端接触件 | 接触镀层厚度 | 100µin (2.54µm) |
| 触点镀层厚度 - 柱（配合端） | 100 – 200 | ||
产品信息
| 备注 | (*) For use with Model "K" machines. Call the Technical Assistance Center (1-800-522-6752) for part numbers of applicators for use with Model "G" machines, as well as other bench machines and fully automatic AMPOMATOR lead making machines. | 连接器性别 | PIN |
| 系列 | AMPMODU MOD IV | 产品子类型 | Contacts |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
