点击放大查看

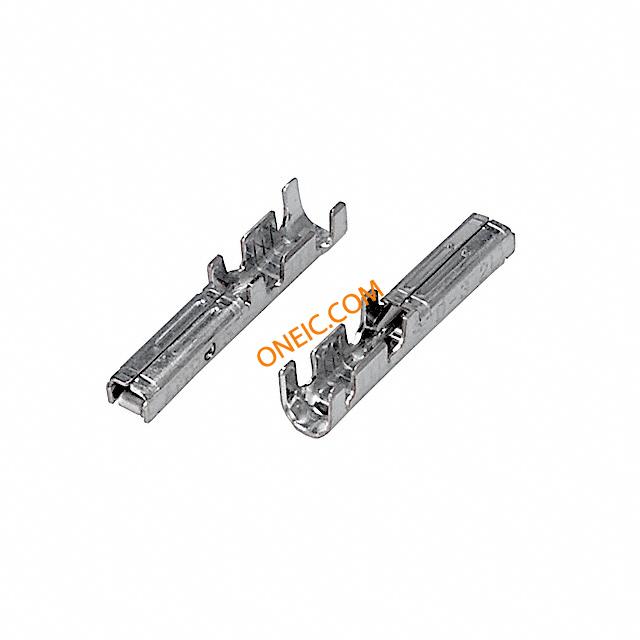

1-917511-5
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings RECPT 16-14 AWG TIN Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP TIN Contact female crimp 16-14AWG Sn 2L D-3 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, SOCKET, 16-14AWG, CRIMP TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 REC CONT 2L L/P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 8 A |
机械参数
| 重量 | 0.000001 | 包装方式 | Bulk |
| 导线线规 | 16-14 | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Tin |
| 安装样式 | Wire | 插入力 | High |
| 触头材料 | Copper Alloy | 包装数量 | Bag |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 端接表面处理 | Tin | 接触件端接 | Crimp |
| 绝缘直径 | 2.20-2.80 [.086-.110] | 线规或范围 - AWG | 2L |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | ||
产品信息
| 连接器性别 | SKT | 系列 | D3 |
| 产品子类型 | Contacts | 连接类型 | Wire |
