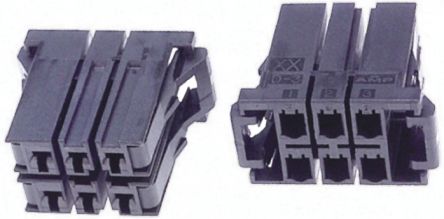

点击放大查看
1-917659-8
| 制造商 | |
| 描述 | Conn Housing RCP 20 POS 5.08mm ST Bag Dynamic Series Connectors CONN RCPT 5.08 20POS DUAL KEY-XX Headers & Wire Housings 20 POS RECPT 5.08 KEY XX DUAL Dynamic Series Connectors Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 20KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, D-3200M, 20WAY HousingFH20w2rowRec5.08mmXXkeyD-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 20 路 直 母 电缆安装 PCB 壳体 DYNAMIC 3200 REC HSG 20P |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Latched | 额定交流电压 | 600 |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 导线线规 | 16 AWG | 排间距 | 0.300" (7.62mm) |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Free Hanging | 排数 | 2 |
| 锁定特性 | :Latch | 本体材料 | :Glass Filled Thermoplastic |
| 壳体材料 | Thermoplastic Polyester | 包装数量 | Bag |
| 主要材料 | Connector | 第一触头极性 | Socket (Female) |
| 触点数 | 20 | 接触件端接 | Crimp |
| 位数 | 20 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3200M (Modular Type) |
| 产品特性 | Polarizing Key | 钥匙类型 | XX |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Housing | 连接类型 | Wire |
| 适用产品/相关产品 | :D-3200M Socket Contacts | ||
