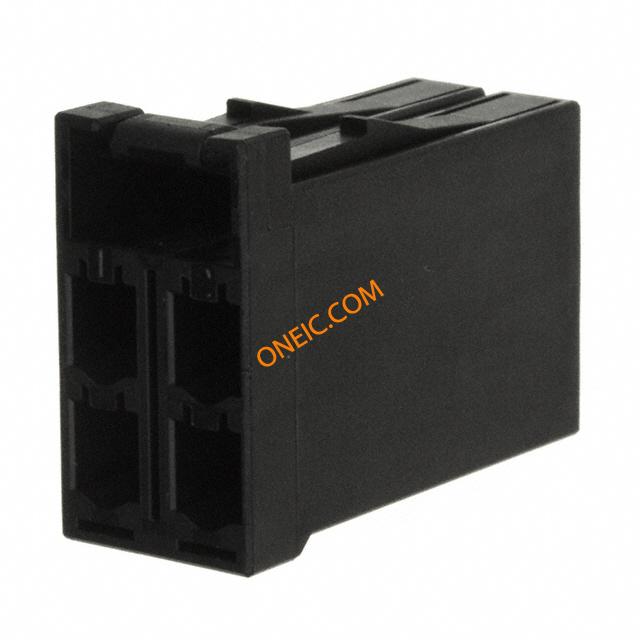

175363-2
| 制造商 | |
| 描述 | Conn Housing RCP 4 POS 5.08mm ST Bag Dynamic Series Connectors CONN RECEPT 5.08 4POS 2ROWS Housing FH 4 way Rec 5.08mm D-3 Dynamic Series Connectors Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 4Not KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HousingFH4wayRec5.08mmD-3 TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 4 路 直 母 电缆安装 PCB 壳体 DYNAMIC D-3500 REC HSG 4P |
| 分类 |
商业参数
| 其他名称 | A29841 | 标准包装规格 | 450 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 600 | 额定交流电压 | 600 |
机械参数
| 颜色 | Black | 深度 | 22.8mm |
| 间距 | 5.08 mm | 宽度 | 21mm |

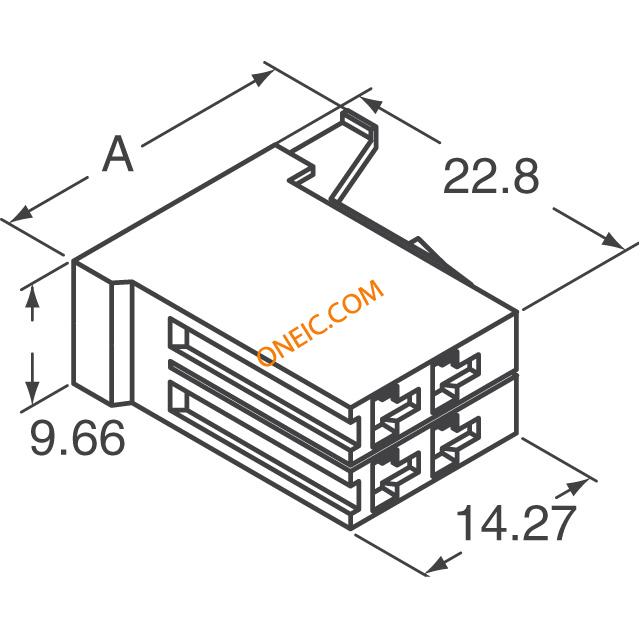

| 高度 | 22.8 mm [ .897 in ] | 长度 | 9.66mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | CableMount |
| 排数 | 2 | 插入力 | 9.8 牛顿 |
| 壳体材料 | Thermoplastic Polyester | 包装数量 | Bag |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | 插座 | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 兼容外壳尺寸（如TM-700等） | 插头外壳和接头 | 典型触点布局 | 网络 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3500D (Sensor) |
| 可密封 | 否 | 编码、键控 | No |
| 制造商全称 | D-3000Series | 预装 | 否 |
| 产品子类型 | Housing | 连接类型 | Wire |
| 选择性装载 | No | 其他规格 | Without |
| 适用产品/相关产品 | Sensor Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
