点击放大查看

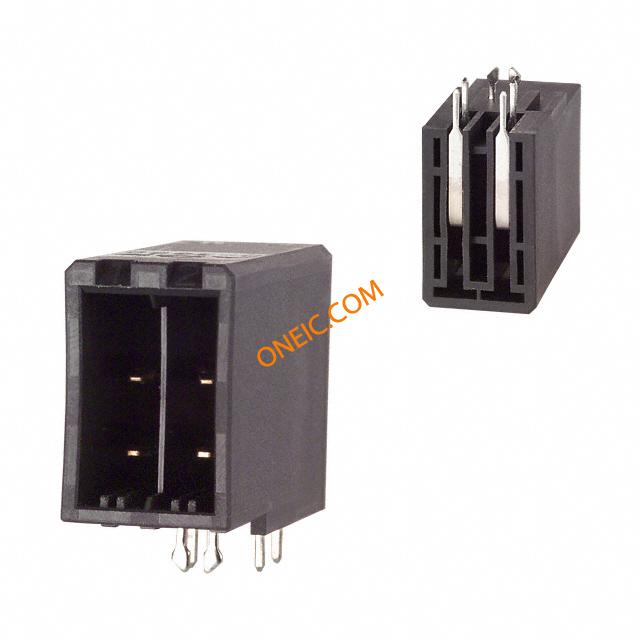

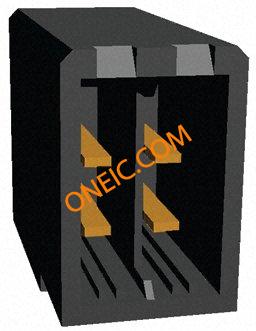

1376133-2
| 制造商 | |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port Box Dynamic Series Connectors CONN HEADER 4POS R/A DUAL 15GOLD D-3000 4 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac 1376133-2 Conn Power HDR 4 POS 5.08mm Solder RA Thru-Hole 4 Terminal 1 Port Box Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 4Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONNECTOR, HEADER, THT, R/A, 4WAY Headerhoriz4way2row5.08mmD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 4路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC D-3500 HDR ASSY 4P |
| 分类 |
商业参数
| 其他名称 | A29854 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac | 额定交流电压 | 600 |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 排间距 | 0.200" (5.08mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 5.08 x 5.08 [.200 x .200] |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold (15) |
| 安装样式 | Thru Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 包装数量 | Box | 主要材料 | Power |
| 触点数 | 4 | 端接表面处理 | Gold over Nickel |
| 接触件端接 | :Through Hole Right Angle | 位数 | 4 |
| 接触镀层厚度 | 15µin (0.38µm) | 第一连接器安装类型 | :PCB |
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | HDR | 系列 | D-3500D (Sensor) |
| 产品特性 | Board Lock | 编码、键控 | No |
| 制造商全称 | D-3000Series | 产品子类型 | Header |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
