点击放大查看

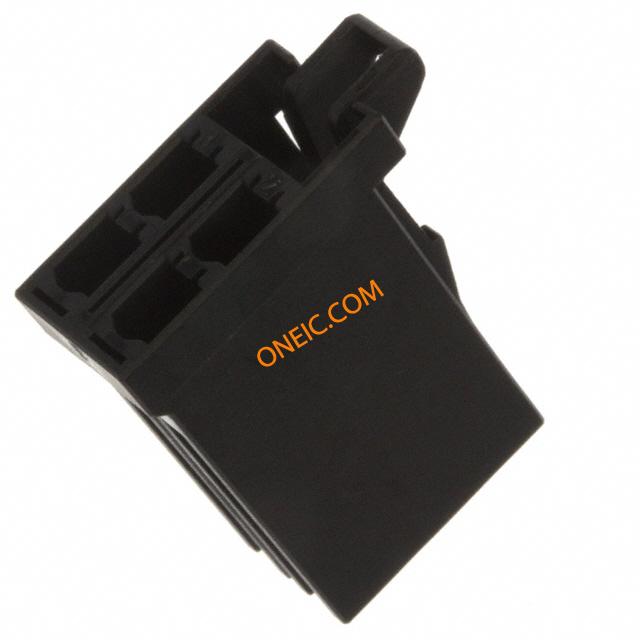

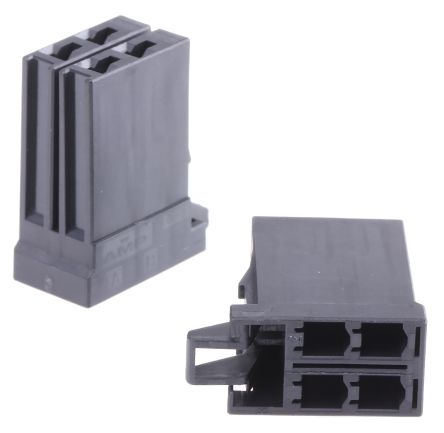

175363-1
| 制造商 | |
| 描述 | Conn Housing RCP 4 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 5.08 4POS 2ROWS Housing rcpt.4 way,5.08mm,180°,black Heavy Duty Power Connectors REC HSG 4P Conn Housing RCP 4 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 4Not KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, SOCKET, 4WAY Housingrcpt.4way,5.08mm,180°,black TE Connectivity Dynamic 3000 系列 2 行 5.08mm 节距 4 路 直 母 电缆安装 PCB 壳体 DYNAMIC D-3500 REC HSG 4P |
| 分类 |
商业参数
| 其他名称 | A29840 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 450 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 VAC | 额定交流电压 | 600 |
机械参数
| 颜色 | Black | 深度 | 22.8mm |
| 间距 | 5.08 mm | 宽度 | 21mm |
| 长度 | 9.66mm | 重量 | 0.025 |
| 包装方式 | Bulk | 导线线规 | 16 AWG |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | CableMount |
| 排数 | 2 | 壳体材料 | Nylon |
| 包装数量 | Bag | 主要材料 | Connector |
| 端接样式 | Wire | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3500D (Sensor) |
| 编码、键控 | No | 制造商全称 | D-3000Series |
| 产品子类型 | Housing | 连接类型 | Wire |
| 适用产品/相关产品 | Sensor Connector | ||
