1-178128-3
| 制造商 | |
| 描述 | Conn Housing RCP 3 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 5.08 3POS KEY-X Headers & Wire Housings 3P RCPT HSG Conn Housing RCP 3 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 3KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, PLUG/SOCKET, FOR D-3200S CONN CASEKIT&PLUGHSG,3-PDYNAMICPLUG-HD-32005.08 DYNAMIC 3200 REC HSG 3P SGL |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 额定交流电压 | 600 | 最大额定电流 | 12/Contact A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 22.8 mm |
| 间距 | 5.08 mm | 高度 | 7.15 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | 16 AWG | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Free Hanging |
| 排数 | 1 | 壳体材料 | Thermoplastic Polyester |
| 总长度 | 29.7 mm | 包装数量 | Bag |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3200S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | :D-3200S Dynamic Series Socket Contacts |
环境参数
| 工作温度 | -55C to 105C | ||
相关型号
1-917484-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Heavy Duty Power Connectors REC CONT 2L 16-14 Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 2L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 2L 16-14

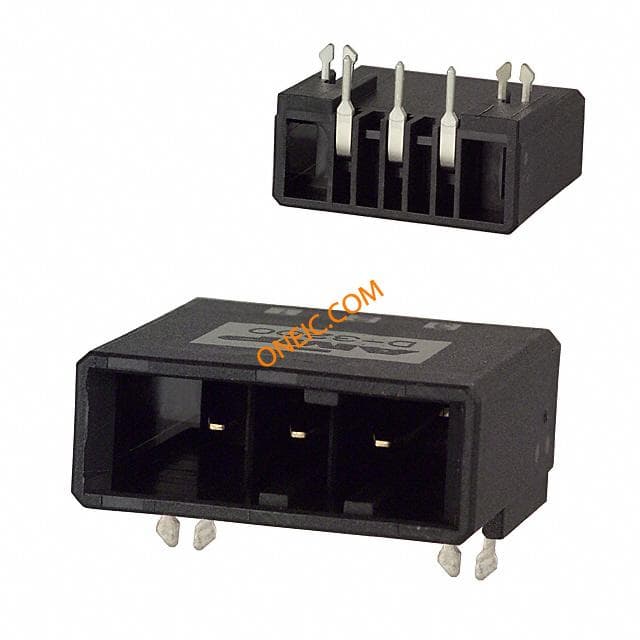

1-178138-3
te connectivity / amp
Conn Power HDR 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS R/A KEY-X 30GOLD D-3000 3 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings 3 POS HDR R/A 30 AU KEY X Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz3wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 3路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3200 HDR H 3P ASSY
1-175196-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP TIN Contact,female,crimp,20-16AWG,D-3 Headers & Wire Housings DYNAMIC D-3 REC CONT 1-175196-5 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, AWG20-16 CONTACT, CRIMP, SOCKET, 20-16AWG, REEL TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀锡触点 DYNAMIC D-3 REC CONT/L PRE-TIN

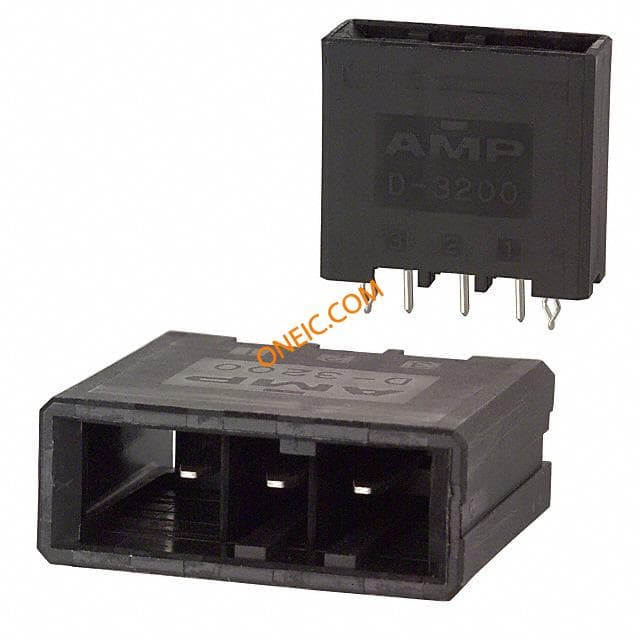

1-178136-5
te connectivity / amp
Conn Power M 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HEADER 3POS STR KEY-X TIN D-3000 3 Male Straight Heavy Duty Power Connector, Through Hole 12A,600V ac Headers & Wire Housings 3 POS HDR VERT TIN KEY X Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert3wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 3路 直 PCB 针座, 焊接端接, 12A , 通孔 DYNAMIC D3200 HDR V ASSY 3P
1-175195-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 20-24AWG CRIMP 15GOLD Contact female crimp 24-20AWG Au M D-3 Headers & Wire Housings REC CONT/M AU 0.38 Dynamic Series Connectors Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.20-0.60² [24-20] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/M AU 0.38

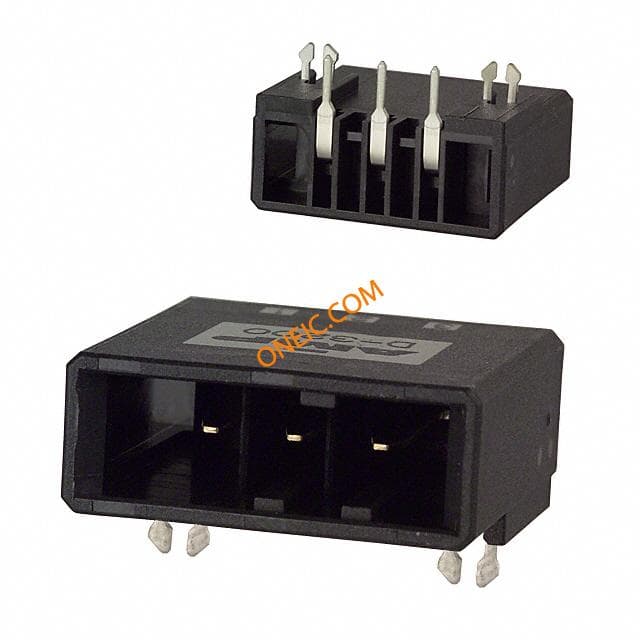

1-178138-2
te connectivity / amp
Conn Power M 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS R/A KEY-X 15GOLD D-3000 3 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings 3 POS HDR R/A 15 AU KEY X Dynamic Series Connectors Product Highlights:Terminate To Printed Circuit BoardHeaderTab3 PositionsMount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz3wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 3路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3200 HDR H 3P ASSY

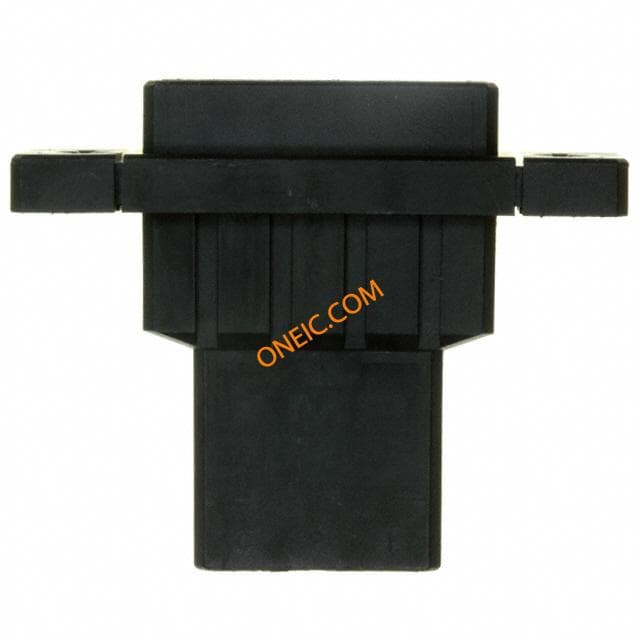

1-179553-3
te connectivity / amp
Conn Housing M 3 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 3POS KEY-X PANL Headers & Wire Housings 3 POS HOUSING TAB KEY X Conn Housing M 3 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingTabNumber of Positions = 3Mount = Panel MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3200 WTW TAB HSG 3P

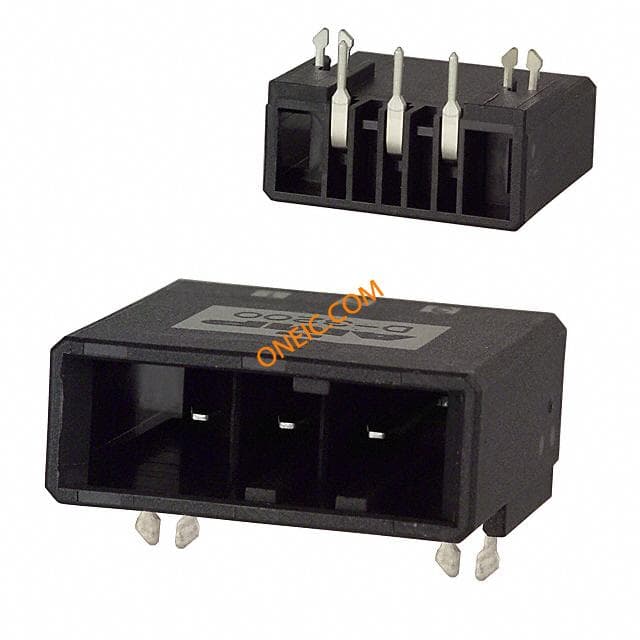

1-178138-5
te connectivity / amp
Conn Power M 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 3POS R/A KEY-X TIN D-3000 3 Male Right Angle Heavy Duty Power Connector, Through Hole 12A,600V ac Headers & Wire Housings 3 POS HDR R/A TIN KEY X Conn Power M 3 POS 5.08mm Solder RA Thru-Hole 3 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz3wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 3路 直角 PCB 针座, 焊接端接, 12A , 通孔 DYNAMIC 3200 HDR H 3P ASSY
175216-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 24-28AWG CRIMP 30GOLD Contact female crimp 28-24AWG Au S D-3 Headers & Wire Housings RCPT 28-24 AWG 30 AU CRIMP STD INSERT Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 0.08-0.24² [28-24] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp28-24AWGAuSD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC REC CONT. S L/P
1-353715-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 15GOLD Contact female crimp 16-14AWG Au 3L D-3 Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, CRIMP, RECEPTACLE, 16-14AWG TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT 3L 16-14
1-353717-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RCPT 14-16AWG CRIMP 30GOLD Contact female crimp 16-14AWG Au 3L D-3 Heavy Duty Power Connectors REC L/P 3L 16-14 Contact SKT Crimp ST Cable Mount Bag Product Highlights:Terminate To WireContactReceptacleProduct Series = D-3Wire Range = 1.25-2.00² [16-14] mm [AWG]Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONTACT, RECEPTACLE, 16-14AWG, CRIMP Contactfemalecrimp16-14AWGAu3LD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC L/P 3L 16-14
1-175196-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel Dynamic Series Connectors CONN RCPT 16-20AWG CRIMP 30GOLD Contact female crimp 20-16AWG Au L D-3 Headers & Wire Housings CONTACT RCPT GOLD Contact SKT Crimp ST Cable Mount Reel Product Highlights:Terminate To WireContactContact Type = ReceptacleReceptacleProduct Series = D-3Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Contactfemalecrimp20-16AWGAuLD-3 TE Connectivity Dynamic 3000 系列 母 压接接线端子, 压接, 镀金触点 DYNAMIC D-3 REC CONT/L AU 0.76

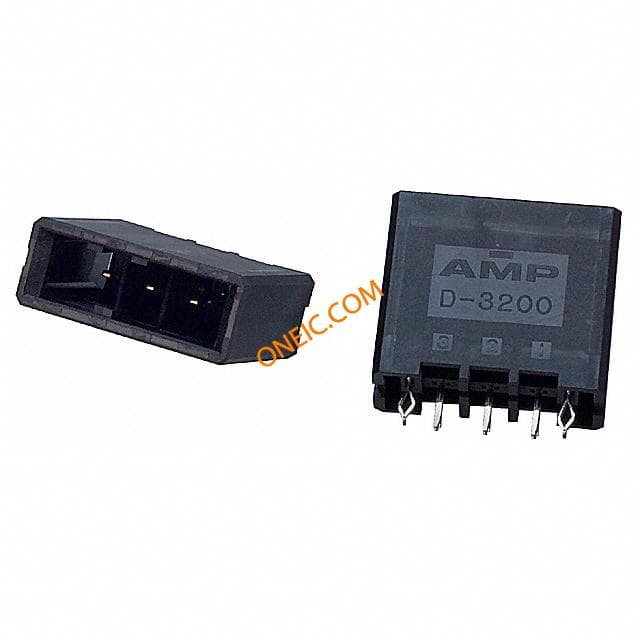

1-178136-2
te connectivity / amp
Conn Power M 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Dynamic Series Connectors CONN HEADR 3POS STR KEY-X 15GOLD D-3000 3 Male Straight Heavy Duty Power Connector, Through Hole,600V ac Headers & Wire Housings DYNAMIC D3200 HDR V Conn Power M 3 POS 5.08mm Solder ST Thru-Hole 3 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 3Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headervert3wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 5.08mm节距 3路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC D3200 HDR V ASSY 3P

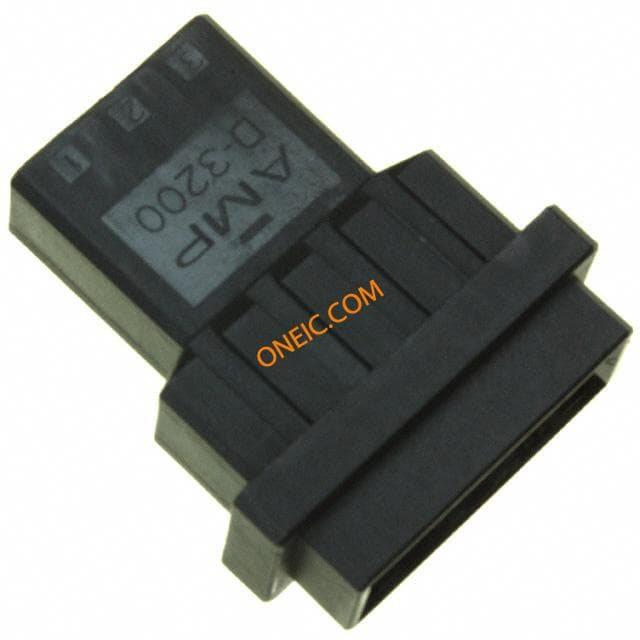

1-179552-3
