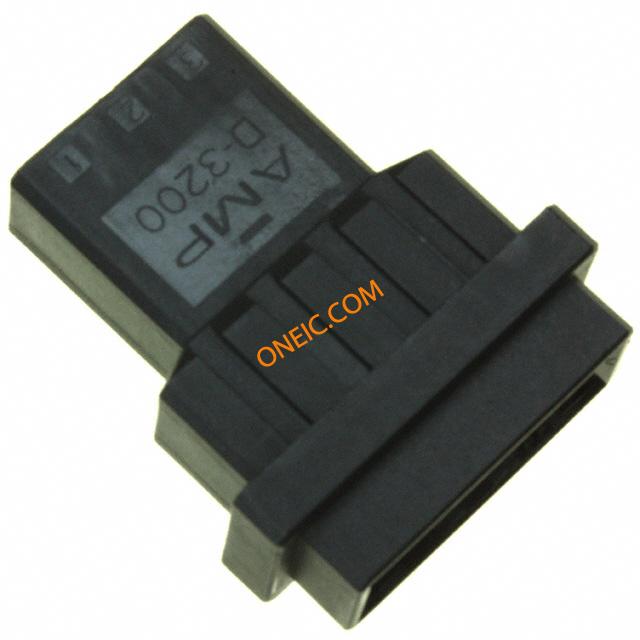

1-179552-3
| 制造商 | |
| 描述 | Conn Housing M 3 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN HOUSING TAB 3POS KEY-X FREE Housing FH 3 way TAB 5.08mm X key D-3 Headers & Wire Housings 3 POS HOUSING TAB KEY X Conn Housing M 3 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingHousing Accepts Contact Type = TabTab3 PositionsSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HousingFH3wayTAB5.08mmXkeyD-3 TE Connectivity Dynamic 3000 系列 1 行 5.08mm 节距 3 路 直 公 电缆安装 PCB 壳体 DYNAMIC D-3200 WTW TAB HSG 3P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Unlatched | 供电电压 | 600 |
| 额定交流电压 | 600 | ||
机械参数
| 颜色 | Black | 深度 | 33.6mm |
| 间距 | 5.08 mm | 宽度 | 12.7mm |
| 高度 | 33.6 mm [ 1.322 in ] | 长度 | 28.11mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 安装样式 | Wire | 排数 | 1 |
| 壳体材料 | Nylon | 包装数量 | Bag |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 兼容外壳尺寸（如TM-700等） | 母端护套 |
| 典型触点布局 | 同轴 | ||
产品信息
| 备注 | L Fitting 900121-2 is used to secure housing onto panel. | 类型 | Housing |
| 连接器性别 | M | 系列 | D-3200S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 可密封 | 否 | 编码、键控 | Yes |
| 制造商全称 | D-3000Series | 预装 | 否 |
| 产品子类型 | Housing | 连接类型 | Wire |
| 选择性装载 | No | 其他规格 | Without |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
