点击放大查看

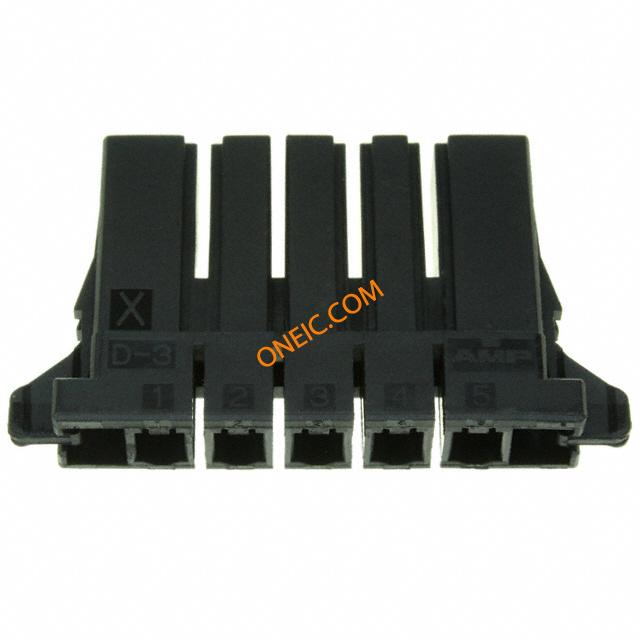

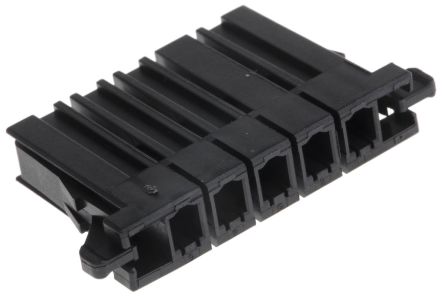

1-178128-5
| 制造商 | |
| 描述 | Conn Housing RCP 5 POS 5.08mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 5.08 5POS KEY-X Housing,5w,receptacle,5.08mm,X-key,D-3 Headers & Wire Housings 5 POS RECPT 5.08 KEY X Conn Housing RCP 5 POS 5.08mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 5KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, D-3200S, 5WAY HOUSING,5WAY,REC,5.08 TE Connectivity Dynamic 3000 系列 5.08mm 节距 5 路 直 母 电缆安装 PCB 壳体 DYNAMIC 3200 REC HSG 5P X |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Latched | 额定交流电压 | 600 |
机械参数
| 颜色 | Black | 深度 | 22.8mm |
| 间距 | 5.08 mm | 宽度 | 7.15mm |
| 长度 | 39.86mm | 重量 | 0.02 |
| 包装方式 | Bulk | 导线线规 | 16 AWG |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 1 | 壳体材料 | Thermoplastic Polyester |
| 包装数量 | Bag | 第一触头极性 | Socket (Female) |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3200S |
| 产品特性 | Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 产品子类型 | Housing |
| 连接类型 | Wire | 适用产品/相关产品 | Wire-to-Board Connector |
