点击放大查看

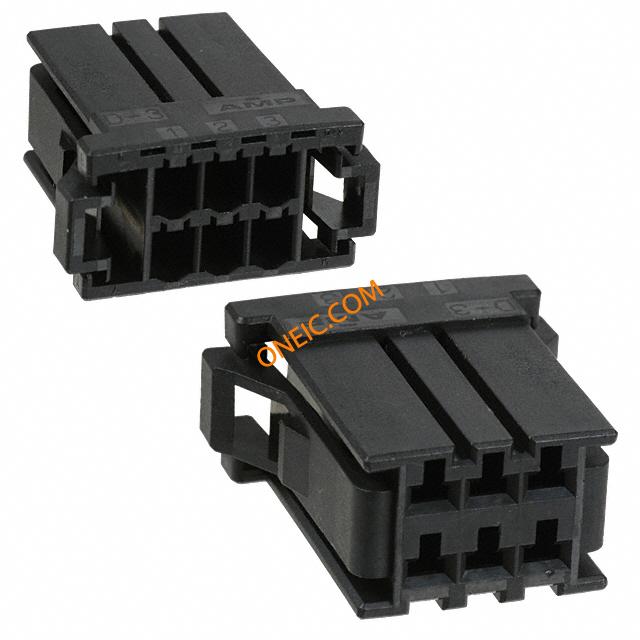

178289-3
| 制造商 | |
| 描述 | Conn Housing RCP 6 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 3.81 6POS 2ROWS Heavy Duty Power Connectors 3.81 DYNAMIC REC HSG Conn Housing RCP 6 POS 3.81mm Crimp ST Cable Mount Bag Product Highlights:Terminate To WireHousingReceptacleNumber of Positions = 6Not KeyedSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING, RECEPTACLE, DUAL ROW, 6WAY Connector;3.81DYNAMICRECHSG6PD--D Connector: wire-board; D-3100D; plug; female; w/o terminals; PIN:6 3.81 DYNAMIC REC HSG 6P D--D |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366990 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 VAC | 额定交流电压 | 250 |
| 最大额定电流 | 10A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 间距 | 3.81 mm |
| 重量 | 0.0033 | 包装方式 | Bulk |
| 排间距 | 0.200" (5.08mm) | 触头类型 | Female Socket |
| 柱间距 | 3.81mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | for cable | 排数 | 2 |
| 插入力 | Female | 壳体材料 | Nylon |
| 包装数量 | Bag | 连接器 - 电缆 | plug |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器安装特征 | 2x3 |
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | D-3100D | 编码、键控 | No |
| 产品子类型 | Housing | 适配器系列 | D-3100D |
| 连接类型 | Wire | 单元数量 | 1 |
| 适用产品/相关产品 | :Dynamic D-3100 Series Contacts | ||
