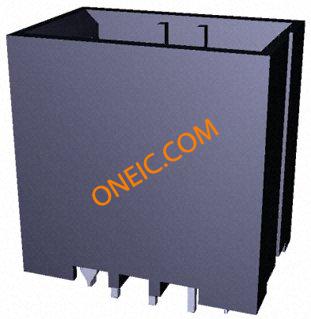

点击放大查看
178323-5
| 制造商 | |
| 描述 | Conn Power HDR 6 POS 3.8mm Solder ST Thru-Hole 6 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 6POS DUAL VERT TIN D-3000 6 Male Straight Heavy Duty Power Connector, Through Hole 10A,250V ac Heavy Duty Power Connectors DYNAMIC VER 6P Conn Power HDR 6 POS 3.8mm Solder ST Thru-Hole 6 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 6Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Header,V,6way,Tab,Dynamic,D3100 TE Connectivity Dynamic 3000 系列 3.8mm节距 6路 直 PCB 针座, 焊接端接, 10A , 通孔 3.81 DYNAMIC CAP H VER 6P |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 23 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-0 |
电气参数
| UL电压 | 250 | 额定电压 | 250 V ac |
| 供电电压 | 250 | 额定交流电压 | 250 |
| 最大额定电流 | 10A | ||
机械参数
| 颜色 | Black | 间距 | 3.8 mm |
| 宽度 | 14.43 mm [ .568 in ] | 高度 | 21.6 mm [ .85 in ] |
| 长度 | 21.62 mm [ .851 in ] | 锁定类型 | Latch |
| 包装方式 | Bulk | 屏蔽 | 否 |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 方向 | 直 | 排间距 | 0.200" (5.08mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | .149 | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Solder | 安装样式 | Thru Hole |
| 排数 | 2 | 壳体镀层 | Tin |
| 插入力 | Male | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | 固定支脚 |
| 包装数量 | Tube | 面板安装类型 | 通孔 - 焊接 |
| 主要材料 | Power | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 6 |
| 端接表面处理 | 不带 | 位数 | 6 |
| 兼容外壳尺寸（如TM-700等） | 母端护套 | 触头长度-柱 | 信号（数据）, 电源 |
| 安装孔直径 | 带有 | 中心触点材料 | 3.81 x 5.08 [.150 x .200] |
| 典型触点布局 | 网络 | 接触镀层厚度 | 78.7µin (2.00µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | HDR | 系列 | D-3100D |
| 覆盖范围 | 覆盖 | 产品特性 | Board Lock |
| 可密封 | 否 | 编码、键控 | No |
| 制造商全称 | D-3000Series | 预装 | 是 |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 选择性装载 | No | 其他规格 | Without |
| 装配配置 | Without | 加载位置数 | All |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| 封装热阻 | 1.6 mm [ .063 in ] | ||
