点击放大查看

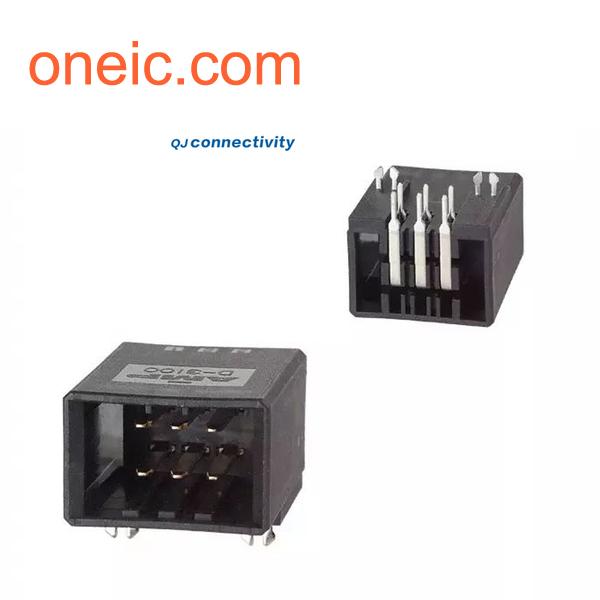

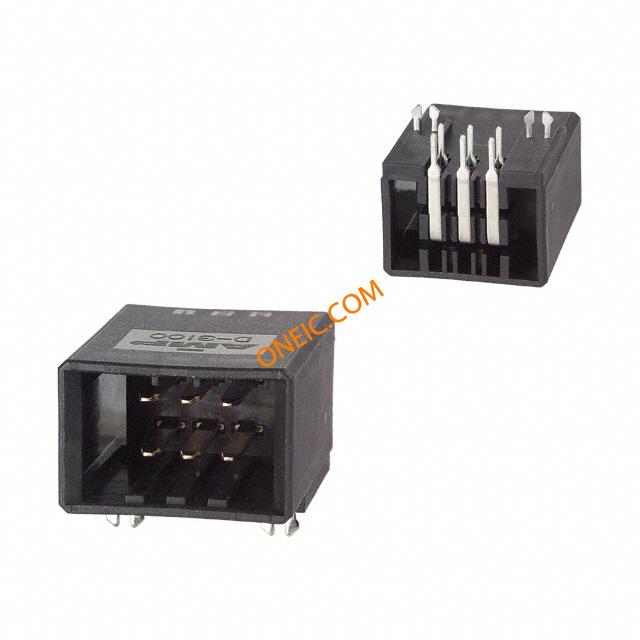

178303-2
| 制造商 | |
| 描述 | Conn Power M 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 6POS DUAL R/A 15GOLD Headers & Wire Housings HDR 6 POS R/A 15 AU DUAL Conn Power M 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 6Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Connector: wire-board; D-3100D; socket; male; angled 90°; PIN:6
sale 6-P POST HDR HORZ D-3100D |
| 分类 |
商业参数
| 其他名称 | A29467 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 23 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V | 额定交流电压 | 250 |
| 最大额定电流 | 10A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 25.91 mm |
| 间距 | 3.81 mm | 高度 | 15.93 mm |
| 重量 | 8.5 g | 包装方式 | Tube |
| 方向 | angled 90° | 排间距 | 0.200" (5.08mm) |
| 端接方式 | Solder | 重量（g） | 12.9 |
| 触头类型 | Male Pin | 柱间距 | 3.81 x 3.81 [.150 x .150] |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold (15) |
| 安装样式 | Thru Hole | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 21.62 mm | 包装数量 | Tube |
| 连接器 - 电缆 | socket | 触点数 | 6 POS |
| 端接表面处理 | Gold over Nickel | 位数 | 6 |
| 接触镀层厚度 | 15µin (0.38µm) | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 2x3 | ||
产品信息
| 名称 | 针座 | 备注 | Solder tine section is 1.0 sq. |
| 类型 | Power | 单位 | PCS |
| 连接器性别 | M | 系列 | D-3100D |
| 产品特性 | Board Lock | 数量 | 1380.0 |
| 编码、键控 | No | 产品子类型 | Header |
| 适配器系列 | D-3100D | 连接类型 | Printed Circuit Board |
| 端口数 | 1 Port | 单元数量 | 1 |
| 制造国家 | 中国 | 设备部件号 | 178303-2.pdf |
| 最小起订量 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
