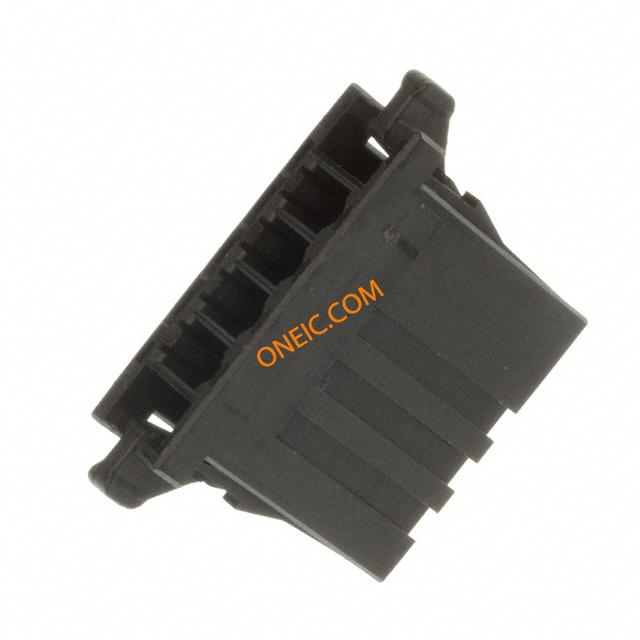

2-178288-4
| 制造商 | |
| 描述 | Conn Housing RCP 4 POS 3.81mm Crimp ST Cable Mount Bag Dynamic Series Connectors CONN RECEPT 3.81 4POS KEY-Y Housing,4w,receptacle,3.81mm,Y-key,D-3 Heavy Duty Power Connectors RECE PT 3.81 4 POS KEY-Y DYNAMIC 3100 REC HSG 4P BLACK DYNAMIC 3100 REC HSG 4P BLACK Search Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, HOUSING,4WAY,REC,3.81 TE Connectivity Dynamic 3000 系列 3.81mm 节距 4 路 直 母 电缆安装 PCB 壳体 |
| 分类 |
商业参数
| 标准包装规格 | 300 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | 否 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 供电电压 | 250 |
| 额定交流电压 | 250 | ||
机械参数
| 颜色 | Black | 深度 | 22.8mm |
| 间距 | 3.81 mm | 宽度 | 7.15mm |
| 高度 | 22.8 mm [ .897 in ] | 长度 | 30.57mm |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 16 AWG | 方向 | 直 |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 1 | 插入力 | Female |
| 壳体材料 | Nylon | 包装数量 | Bag |
| 面板安装类型 | 不带 | 端接样式 | Wire |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 兼容外壳尺寸（如TM-700等） | 插头外壳和接头 |
| 典型触点布局 | 同轴 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | D-3100S |
| 产品特性 | Polarizing Key | 钥匙类型 | Y |
| 可密封 | 否 | 编码、键控 | Yes |
| 预装 | 否 | 产品子类型 | Housing |
| 连接类型 | Wire | 选择性装载 | No |
| 其他规格 | Without | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
