点击放大查看

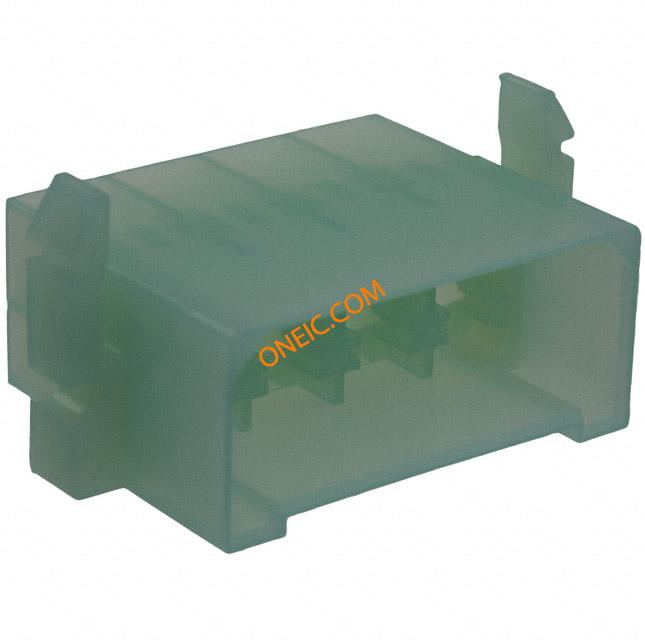

163008
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS 9.1mm Crimp ST Loose Piece Headers & Wire Housings 8 FASTIN-FASTON TAB HSG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB HOUSING 8-WAY CLEAR Conn Housing RCP 8 POS 9.1mm Crimp ST Loose Piece Product Highlights:Tab HousingNumber of Circuits = 8Tab Fit = 6.35 mmLoose PieceColor = ClearSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TAB HOUSING, 8WAY Connector;Receptacle;TabHousing;8P;Faston;0.25in Terminals cover; male; for push-on 6.3mm connectors with lock Housing for FASTON tabs 9.1 mm / 6.30 mm Poles 8 FASTIN-FASTON, 163008, TE Connectivity FF 250 TAB HSG 8P NYLON CLEAR |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 900 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 极数 | 8 | 连接器类型 - 电压输入 | for push-on 6.3mm connectors with lock |
机械参数
| 颜色 | Clear | 深度 | 32.6 mm |
| 间距 | 9.1 mm | 高度 | 24.6 mm |
| 重量 | 0.008 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 外壳颜色 | Clear | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Yes | 排数 | 2 |
| 封装形式 | :Tab | 连接器用途 | terminals cover |
| 材料表面处理 | :- | 壳体材料 | PA 6.6 |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 连接器颜色 | :Clear | 触点数 | 8 |
| 堆叠方向 | Top to Bottom and Side to Side | 位数 | 8 |
产品信息
| SPG | 1 | 备注 | With reinforced locking latches. |
| 类型 | Housing | 样式 | Housing |
| 连接器性别 | RCP | 系列 | 163 |
| 产品子类型 | Contacts | 单元数量 | 1 |
| 电路数 | 8 | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
160451-2
te connectivity / amp
Tab Terminal 14-18AWG M 29.1mm 7.4mm Silver Loose Piece Terminals 250 FASTTAB IS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON TERM TAB 18-14 AWG TIN .250 Tab Terminal 14-18AWG M 29.1mm 7.4mm Silver Loose Piece Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TAB, AWG18-14 FF 250 TAB 18-14AWG TPPB LP
61316-1
te connectivity / amp
Quick Disconnect Terminal 18-22AWG M 29mm 6.5mm Tin Loose Piece Terminals .250 FF TAB 22-18 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 18-22 AWG .250 0.25in male tab,0.3-0.8sq.mm Quick Disconnect Terminal 18-22AWG M 29mm 6.5mm Tin Loose Piece Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.16-3.18 [.085-.125] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, BLADE, 6.35MM, 22-18AWG, CRIMP 250TAB0.3-0.8MM Terminal: flat; 6.3mm; 0.8mm; male; 0.3÷0.9mm2; crimped; for cable Blade connector 6.3×0.8 mm, 61316-1, TE Connectivity TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 22-18AWG TPBR
62553-3
te connectivity / amp
Quick Disconnect Terminal 18-22AWG M 28.07mm 6.35mm Tin Strip Terminals RCPT 22-18 AWG .251 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 18-22 AWG TIN CONN TAB FAST AWG 18-22 TIN Quick Disconnect Terminal 18-22AWG M 28.07mm 6.35mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.16-3.18 [.085-.125] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on 250FFTAB22-18016TPBR FF 250 TAB 22-18AWG TPBR
160691-2
te connectivity / amp
Quick Disconnect Terminal 18-22AWG RCP 28.5mm 7.4mm Tin Strip Terminals 250FASTIN FASTON TAB Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON TERM RCPT TAB 22-18AWG .250 Crimp,Faston,rcp,strt,F,18-22awg,strip Tab contact, FASTIN-FASTON (REEL) Quick Disconnect Terminal 18-22AWG RCP 28.5mm 7.4mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.20-3.40 [.086-.134] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CRIMP,RECPT,F,18-22,AWG TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.3 x 0.8mm, 镀锡触芯 FF 250 TAB 22-18AWG TPBR
280080-2
te connectivity / amp
Quick Disconnect Terminal 10-11.5AWG F 30.1mm 6.8mm Tin Strip Headers & Wire Housings .250 SER F-I F-O TAP Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB 11.5-10 AWG CRIMP Tab contact, FASTIN-FASTON (REEL) Terminal TAB 6.35mm 11-10AWG Fastin-on Quick Disconnect Terminal 10-11.5AWG F 30.1mm 6.8mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 4.00-6.00² [11.5-10] mm [AWG]Insulation Diameter = 3.40-5.10 [.134-.201] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TerminalTAB6.35mm11-10AWGFastin-on TE Connectivity FASTIN-FASTON .250 系列 压接接线端子, 6.35 x 0.8mm, 镀锡触芯 FF 250 REC TERMINAL 11-10 AWG PTPB
60701-1
te connectivity / amp
Quick Disconnect Terminal 10-14AWG M 28.07mm 6.35mm Tin Strip Terminals .250FF TAB 14-10 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 10-14 AWG TIN CONN TAB FAST AWG 10-14 TIN Fastin-Faston Contact,tab,2.00-6.00mm² Quick Disconnect Terminal 10-14AWG M 28.07mm 6.35mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 2.00-6.00² [14-10] mm [AWG]Insulation Diameter = 3.05-4.32 [.120-.170] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, MALE DISCONNECT, 0.25IN, CRIMP Fastin-FastonContact,tab,2.00-6.00mm² FASTIN-Faston 14-10 AWG Insulation Support Crimp Tab Contact TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 14-10AWG TPBR
160859-4
te connectivity / amp
Quick Disconnect Terminal 17-20AWG M 28mm 7.4mm Tin Strip Terminals TAB 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB F-CRIMP FASTIN-FASTON FASTIN-FASTON, male, 6.35x0.81 Quick Disconnect Terminal 17-20AWG M 28mm 7.4mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.50-1.00² [20-17] mm [AWG]Insulation Diameter = 1.40-2.30 [.055-.090] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTIN-FASTON,male,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 20-17 AWG .016 TPPB
42098-1
te connectivity / amp
Quick Disconnect Terminal 14-18AWG M 30.12mm 6.48mm Strip Terminals FLAG 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB F-CRIMP FASTIN-FASTON Quick Disconnect Terminal 14-18AWG M 30.12mm 6.48mm Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-4.06 [.120-.160] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FTIN-FTON,MALE,6.35X0.81 Terminal: flat; 6.35mm; 0.8mm; male; 0.8÷2mm2; crimped; for cable FF 250 TAB 18-14 AWG .032 BR
62553-1
te connectivity / amp
Quick Disconnect Terminal 18-22AWG M 28.07mm 6.35mm Strip Terminals 250 FF TAB 22-18 016 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 18-22 AWG BRASS CONN TAB FAST AWG 18-22 BRASS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.16-3.18 [.085-.125] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 250 TAB 22-18AWG BR
640416-1
te connectivity / amp
Hook Tongue Terminal 14-18AWG M 25.78mm 8.2mm Strip Terminals FERRITE 18-14 Miscellaneous Terminals CONN BLADE 14-18 AWG .250 Hook Tongue Terminal 14-18AWG M 25.78mm 8.2mm Strip Product Highlights:.250 BladeInsulation SupportWire Range = 0.80-2.00² [18-14] mm [AWG]Not For Use With Double WireBrass MaterialSearch Keywords:Wire Termination, Christmas tree, X-mas tree, Fir tree, Retainer BLADE TAB 250 18-14AWG BR
42460-2
te connectivity / amp
Quick Disconnect Terminal 14-18AWG M 28.07mm 6.35mm Tin Strip Terminals .25 FF TAB 18-14 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 14-18 AWG TIN CONN TAB FAST AWG 14-18 TIN Crimp,Faston,rcp,strt,M,14-18awg,strip Quick Disconnect Terminal 14-18AWG M 28.07mm 6.35mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79-4.32 [.110-.170] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, MALE DISCONNECT, 6.35MM, CRIMP TAB,FASTIN-FASTON,.250,18-14AWG FASTIN-FASTON 250 Series 18-14 AWG F-Crimp Tab Contact TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 18-14AWG TPBR
42565-2
te connectivity / amp
Quick Disconnect Terminal 16-18AWG M 29.14mm 6.48mm Tin Loose Piece Terminals F/F TAB HSNG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 16-18 AWG TIN .250 0.25in dimpled male tab,0.8-2.1sq.mm Quick Disconnect Terminal 16-18AWG M 29.14mm 6.48mm Tin Loose Piece Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 3.05-3.68 [.120-.145] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TERMINAL, BLADE, 18-16 AWG, CRIMP, PK25 TAB,FASTIN-FASTON,.250,18-16AWG Terminal: flat; 6.3mm; 0.8mm; male; 0.8÷1.4mm2; crimped; for cable Fastin-Faston 18-16 AWG 6.35 x 0.81 mm Straight Tab Contact FF 250 TAB 18-14AWG TPBR PRE CRIMPED
60294-1
te connectivity / amp
Quick Disconnect Terminal 18-22AWG M 30.26mm 6.48mm Strip on Reel Terminals .250 FF TAB 22-18 BR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TERM TAB FAST 18-22AWG .250 Tab contact, FASTIN-FASTON (REEL) Crimp,Faston,tab,strt,F,6.35x0.81mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.16-3.18 [.085-.125] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CRIMP,TAB,STRT,6.35X0.8MM TE Connectivity FASTIN-FASTON .250 系列 压接接线端子, 6.48 x 0.83mm FF 250 TAB 22-18AWG BR
293041-2
te connectivity / amp
Quick Disconnect Terminal 17-28AWG M 27.5mm 7.4mm Pre-Tin Reel Headers & Wire Housings RECPT 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB 28-17AWG .250 PRE-TIN FASTIN-FASTON, male, 6.35x0.81 Tab contact, FASTIN-FASTON (REEL) Terminals RECPT 6.35 x 0.81 mm Quick Disconnect Terminal 17-28AWG M 27.5mm 7.4mm Pre-Tin Reel Product Highlights:TabTab Fit = 6.35 x 0.80 mmWire Range = 0.35-1.00² [28-17] mm [AWG]Insulation Diameter = 2.03 [.080] Max. mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONTACT, CRIMP, PLUG, 28-17AWG FASTIN-FASTON,male,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接接线端子, 6.35 x 0.8mm, 镀锡触芯 FF 250 TAB 0.35-1.0MM2 TPBR
42241-3
te connectivity / amp
Quick Disconnect Terminal 14-18AWG M 29.18mm 6.48mm Silver Loose Piece Terminals .250 FF TAB IS 016SPBR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FASTON 18-14AWG .250
880636-2
te connectivity / amp
Tab Terminal M 28mm 5.4mm Electro-Tin Terminals .250 SERIES FASTIN 10000 CONN TAB FASTIN-ON .250 TERMINAL, MALE DISCONNECT, 0.25IN, CRIMP TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.3 x 0.8mm, 镀锡触芯
160450-2
te connectivity / amp
Quick Disconnect Terminal 14-18AWG M 30.5mm 7.4mm Tin Strip Terminals TAB 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON TERM TAB 18-14 AWG TIN .250 FASTIN-FASTON, male, 6.35x0.81 Quick Disconnect Terminal 14-18AWG M 30.5mm 7.4mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.10-4.10 [.122-.161] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTIN-FASTON,male,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 18-14AWG TPPB
160451-1
te connectivity / amp
Crimp Terminal 14-18AWG M 28.1mm 7.4mm Loose Piece Terminals 250 FASTTAB IS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON 250 FASTTAB IS

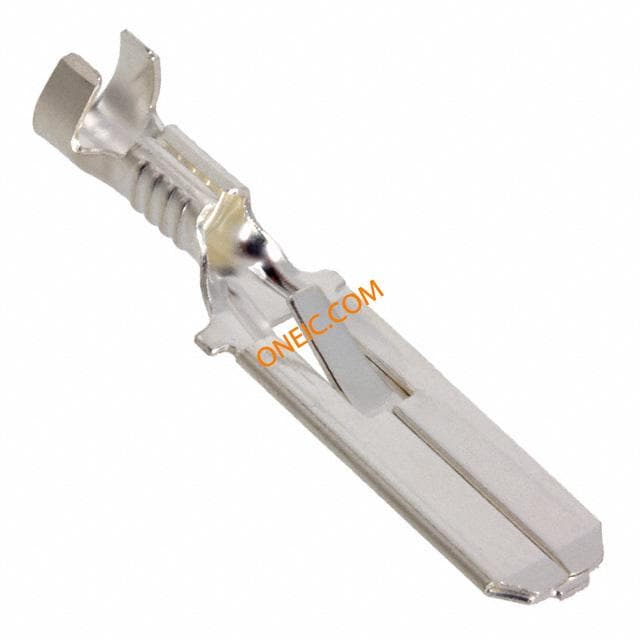

160451-3
