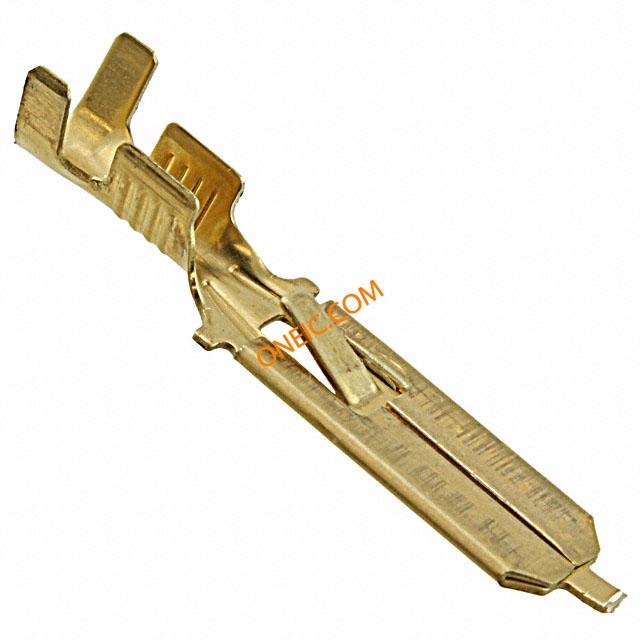

点击放大查看
42098-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 30.12mm 6.48mm Strip Terminals FLAG 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB F-CRIMP FASTIN-FASTON Quick Disconnect Terminal 14-18AWG M 30.12mm 6.48mm Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.05-4.06 [.120-.160] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FTIN-FTON,MALE,6.35X0.81 Terminal: flat; 6.35mm; 0.8mm; male; 0.8÷2mm2; crimped; for cable FF 250 TAB 18-14 AWG .032 BR |
| 分类 |
商业参数
| 产品 | Tab Contacts | 其他名称 | A107123CT |
| 产品类别 | Terminals | 标准包装数量 | 3,500 |
| 工厂包装数量 | 10500 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大频率 | Single | ||
机械参数
| 深度 | 6.48 mm | 宽度 | 6.35mm |
| 表面处理 | None | 重量 | 1 g |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.8mm |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.620" (15.75mm) | 导线线规 | 14-18 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | Unplated |
| 安装样式 | for cable | 封装形式 | Multiple |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 厚度（最大） | 0.38 [0.015] | 触头材料 | Brass |
| 套圈材料 | with a latch | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Strip | 绝缘高度 | With |
| 端接样式 | Crimp | 适用端子尺寸 | 3.05 – 4.06 mm [ .12 – .16 in ] |
| 绝缘直径 | 3.05-4.06 [.120-.160] | 总厚度 | .38 mm [ .015 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 堆叠高度（配合） | .05 | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| SPG | 10500 | 备注 | Without Locking Hole |
| 类型 | Faston Contact | 连接器性别 | Male |
| 系列 | 250 | 产品子类型 | Tab |
| 单元数量 | 10500 | ||
