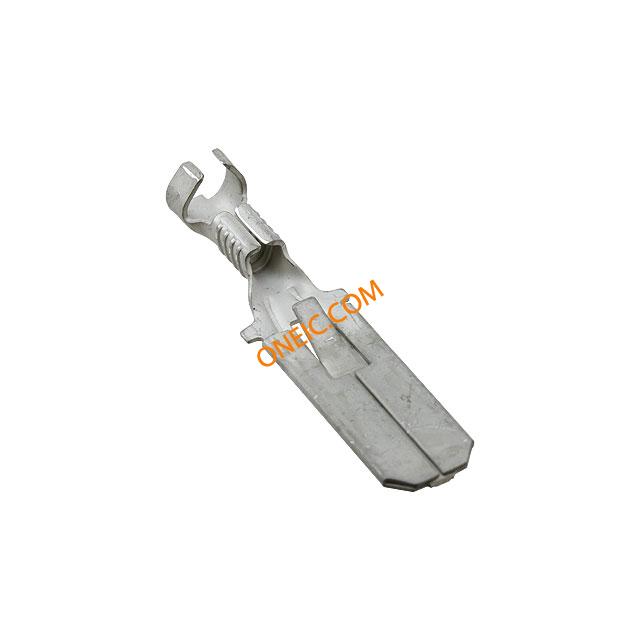

160451-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Tab Terminal 14-18AWG M 29.1mm 7.4mm Silver Loose Piece Terminals 250 FASTTAB IS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON TERM TAB 18-14 AWG TIN .250 Tab Terminal 14-18AWG M 29.1mm 7.4mm Silver Loose Piece Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TAB, AWG18-14 FF 250 TAB 18-14AWG TPPB LP |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Terminals |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 7.4 mm |
| 表面处理 | Tin | 重量 | 0.004 |
| 材料（通用） | Phosphor Bronze | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.41 [0.016] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 基体材料 | Phosphor Bronze | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Multiple |
| 壳体镀层 | Silver | 箔压接区域 | F-Crimp |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 绝缘颜色 | :(Not Available) | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Loose Piece | 绝缘高度 | With |
| 绝缘直径 | 3.10-4.10 [.122-.161] | 绝缘材料 - 材质 | :(Not Available) |
| 线规或范围 - AWG | :18AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
产品信息
| 备注 | Without Locking Hole | 类型 | Tab Terminal |
| 连接器性别 | Male | 系列 | :250 |
| 产品子类型 | Tab | ||
