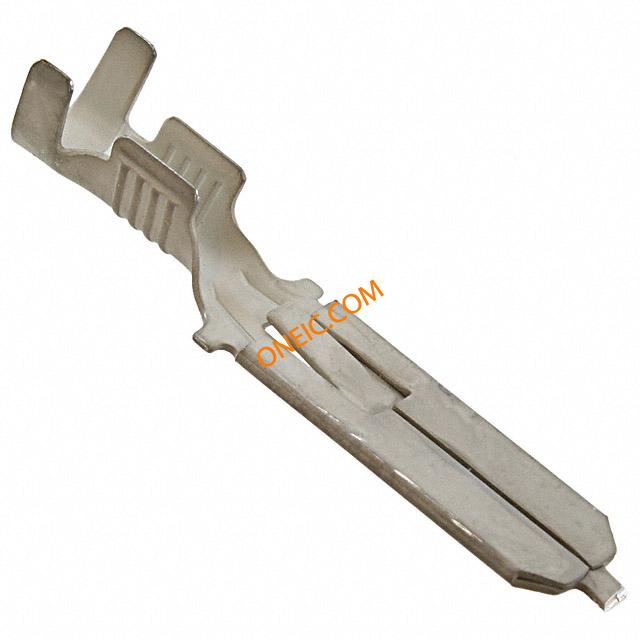

点击放大查看
160450-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG M 30.5mm 7.4mm Tin Strip Terminals TAB 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON TERM TAB 18-14 AWG TIN .250 FASTIN-FASTON, male, 6.35x0.81 Quick Disconnect Terminal 14-18AWG M 30.5mm 7.4mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 3.10-4.10 [.122-.161] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTIN-FASTON,male,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接接头端子, 6.35 x 0.81mm, 镀锡触芯 FF 250 TAB 18-14AWG TPPB |
| 分类 |
商业参数
| 产品 | Tab Terminals | 其他名称 | A107068CT |
| 产品类别 | Terminals | 标准包装数量 | 3,500 |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 最大电压 | 250 | 最大频率 | Single |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Tin | 材料（通用） | Phosphor Bronze |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 导线线规 | 18-14 | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 2.5mm² | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Multiple | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 厚度（最大） | 0.41 [0.016] |
| 触头材料 | Phosphor Bronze | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | With | 端接样式 | 公端 |
| 适用端子尺寸 | 3.1 – 4.1 mm [ .122 – .161 in ] | 接触件尾部长度 | 0.81mm |
| 绝缘直径 | 3.10-4.10 [.122-.161] | 绝缘材料 - 类型 | No |
| 总厚度 | .4 mm [ .016 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 400 | 堆叠高度（配合） | .055 |
| 线规或范围 - AWG | 14AWG | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 触点镀层厚度 - 柱 | 6.35mm | ||
产品信息
| 备注 | Without Locking Hole | 连接器性别 | Male |
| 系列 | 250 | 产品特性 | Serrated Termination |
| 产品子类型 | Tab | ||
环境参数
| 工作温度 | 125 | ||
