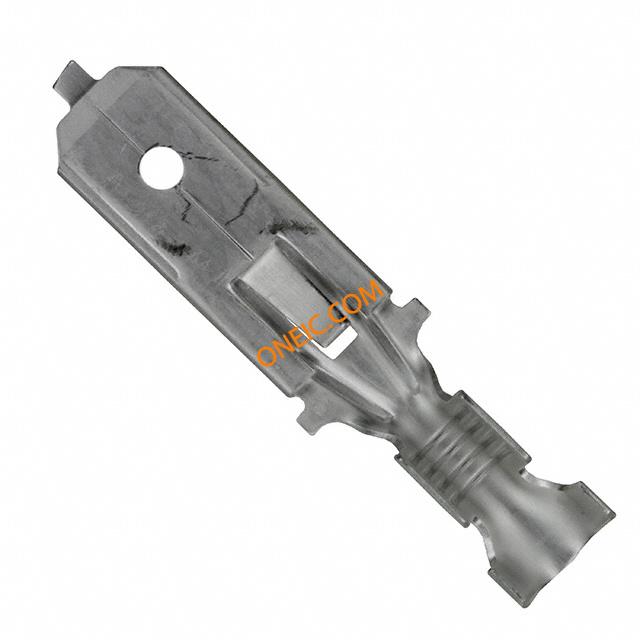

62553-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG M 28.07mm 6.35mm Tin Strip Terminals RCPT 22-18 AWG .251 Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB FAST 18-22 AWG TIN CONN TAB FAST AWG 18-22 TIN Quick Disconnect Terminal 18-22AWG M 28.07mm 6.35mm Tin Strip Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.16-3.18 [.085-.125] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on 250FFTAB22-18016TPBR FF 250 TAB 22-18AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 零件号别名 | 53942-1 |
| 产品类别 | Terminals | 标准包装数量 | 9,000 |
| 工厂包装数量 | 9000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 获得认可 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 最大频率 | Single | 开关功能 | 快速断开, 快速断开 |
机械参数
| 表面处理 | Tin | 长度 | 28.12 mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.38 [0.015] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.620" (15.75mm) | 导线线规 | 22-18 |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 15.75 mm x 6.48 mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Single or Multiple | 线束直径 | 0.9 mm |
| 连接器用途 | Wire & Cable | 箔压接区域 | F-Crimp |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | With | 端接样式 | Crimp |
| 适用端子尺寸 | 2.16 – 3.18 mm [ .085 – .125 in ] | 绝缘直径 | 2.16-3.18 [.085-.125] |
| 绝缘材料 - 类型 | Yes | 总厚度 | .38 mm [ .015 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 堆叠高度（配合） | 1.397 mm [ .055 in ] | 线规或范围 - mm² | 0.30-0.90² [22-18] |
产品信息
| 连接器性别 | Male | 系列 | 250 |
| 产品子类型 | Tab | ||
