点击放大查看

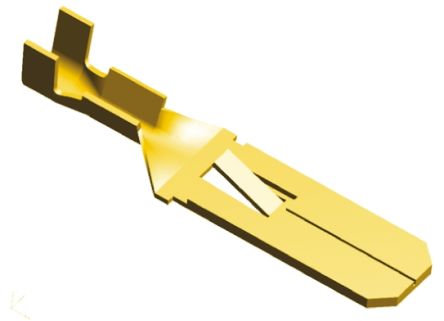

60294-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG M 30.26mm 6.48mm Strip on Reel Terminals .250 FF TAB 22-18 BR Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TERM TAB FAST 18-22AWG .250 Tab contact, FASTIN-FASTON (REEL) Crimp,Faston,tab,strt,F,6.35x0.81mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:TabTab Fit = 6.35 x 0.81 mmWire Range = 0.30-0.90² [22-18] mm [AWG]Insulation Diameter = 2.16-3.18 [.085-.125] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CRIMP,TAB,STRT,6.35X0.8MM TE Connectivity FASTIN-FASTON .250 系列 压接接线端子, 6.48 x 0.83mm FF 250 TAB 22-18AWG BR |
| 分类 |
商业参数
| 产品 | Tab Contacts | 其他名称 | A104093CT |
| 标准包装规格 | 8,000 | 标准包装数量 | 64,000 |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大频率 | Single | ||
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Reel | 遮蔽类型 | Unshrouded |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 厚度 | 0.38 [0.015] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.620" (15.75mm) | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 0.8mm² | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | 无镀层 |
| 封装形式 | Multiple | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Strip |
| 绝缘高度 | With | 端接样式 | 公端 |
| 适用端子尺寸 | 2.16 – 3.18 mm [ .085 – .125 in ] | 接触件尾部长度 | 0.83mm |
| 绝缘直径 | 2.16-3.18 [.085-.125] | 总厚度 | .38 mm [ .015 in ] |
| 焊盘布局尺寸 | 6.48 x 0.83mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 堆叠高度（配合） | .055 |
| 线规或范围 - AWG | 18AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
| 触点镀层厚度 - 柱 | 6.48mm | ||
产品信息
| 备注 | Without Locking Hole | 连接器性别 | Male |
| 系列 | 250 | 覆盖范围 | 无覆盖 |
| 产品子类型 | Tab | ||
