点击放大查看

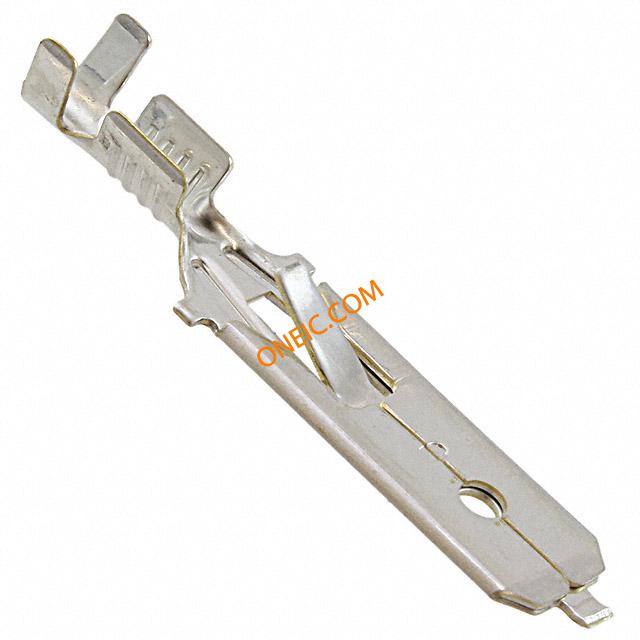

293041-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 17-28AWG M 27.5mm 7.4mm Pre-Tin Reel Headers & Wire Housings RECPT 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB 28-17AWG .250 PRE-TIN FASTIN-FASTON, male, 6.35x0.81 Tab contact, FASTIN-FASTON (REEL) Terminals RECPT 6.35 x 0.81 mm Quick Disconnect Terminal 17-28AWG M 27.5mm 7.4mm Pre-Tin Reel Product Highlights:TabTab Fit = 6.35 x 0.80 mmWire Range = 0.35-1.00² [28-17] mm [AWG]Insulation Diameter = 2.03 [.080] Max. mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONTACT, CRIMP, PLUG, 28-17AWG FASTIN-FASTON,male,6.35x0.81 TE Connectivity FASTIN-FASTON .250 系列 压接接线端子, 6.35 x 0.8mm, 镀锡触芯 FF 250 TAB 0.35-1.0MM2 TPBR |
| 分类 |
商业参数
| 产品 | Tab Contacts | 其他名称 | A107120CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 3,000 |
| 工厂包装数量 | 9000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Blue/White | 深度 | 7.4 mm |
| 表面处理 | Pre-Tin | 重量 | 0.02 |
| 材料（通用） | Brass | 包装方式 | Tape & Reel (TR) |
| 遮蔽类型 | Unshrouded | 插片宽度 | 6.35 x 0.80 [.250 x .031] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.618" (15.70mm) | 导线线规 | 17-28 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Yes |
| 接触镀层 | Tin | 壳体镀层 | Pre-Tin |
| 箔压接区域 | F-Crimp | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Reel | 绝缘高度 | With |
| 端接样式 | Crimp | 第一触头极性 | :Pin |
| 接触件端接 | :Crimp | 绝缘直径 | 2.03 [.080] Max. |
| 线规或范围 - mm² | 0.35-1.00² [28-17] | ||
产品信息
| 备注 | With hole | 连接器性别 | Male |
| 系列 | FASTIN-FASTON | CAD图纸 | 3D CAD Model |
| 产品子类型 | Tab | 适用产品/相关产品 | :- |
环境参数
| 工作温度 | -65C to 200C | ||
