点击放大查看

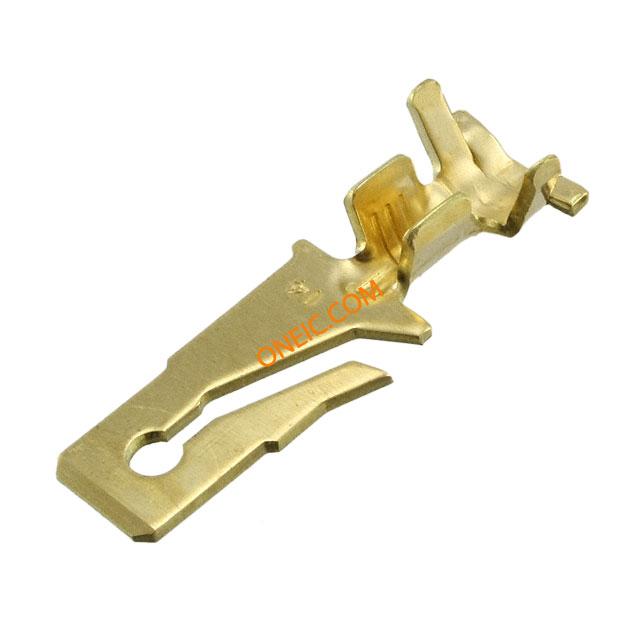

640416-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Hook Tongue Terminal 14-18AWG M 25.78mm 8.2mm Strip Terminals FERRITE 18-14 Miscellaneous Terminals CONN BLADE 14-18 AWG .250 Hook Tongue Terminal 14-18AWG M 25.78mm 8.2mm Strip Product Highlights:.250 BladeInsulation SupportWire Range = 0.80-2.00² [18-14] mm [AWG]Not For Use With Double WireBrass MaterialSearch Keywords:Wire Termination, Christmas tree, X-mas tree, Fir tree, Retainer BLADE TAB 250 18-14AWG BR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 其他名称 | A100804CT |
| 产品类别 | Terminals | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 灯泡类型 | Without | 开关功能 | 快速断开插针 |
机械参数
| 表面处理 | None | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 0.250" (6.35mm) |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Fishhook | 电缆材料 | Stranded |
| 连接器类型 | F-Crimp | 接触镀层 | 无镀层 |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 总长度 | 1.015" (25.78mm) |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | 公端 |
| 线规 - 端部 | No | 适用端子尺寸 | 2.54 – 3.61 mm [ .1 – .142 in ] |
| 绝缘直径 | 2.54-3.61 [.100-.142] | 绝缘材料 - 类型 | Yes |
| 线规或范围 - mm² | 0.80-2.00² [18-14] | ||
产品信息
| 类型 | Hook Tongue Terminal | 连接器性别 | M |
| 系列 | 640 | 二极管类型 | Without |
| 产品子类型 | .250 Blade | ||
