点击放大查看

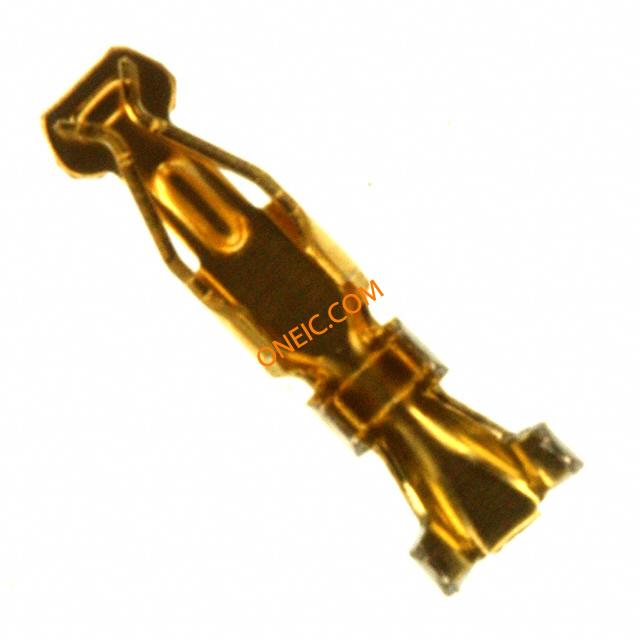

0503948100
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm |
| 分类 |
商业参数
| 交货时间 | 50 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 40 mohm | 最大额定电流 | 2 A |
| 最小供电电压 | 125VDC/125VAC | ||
机械参数
| 深度 | 1.88 mm | 间距 | Not Required mm |
| 高度 | 2 mm | 重量 | 0.04 g |
| 包装方式 | Bag | 导线线规 | 24-30 AWG |
| 屏蔽类型 | No | 端接方式 | Crimp |
| 触头类型 | Signal | 柱间距 | 2mm |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 6.25 mm | 包装数量 | 100 |
| 连接器 - 电缆 | contact | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 15µin (0.38µm) |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 100 | 类型 | Contact |
| 连接器性别 | SKT | 适配器系列 | Milli-Grid |
| 单元数量 | 1 | 行业别名 | 50394-8100, 503948100 |
| 工具类型/特性 | MX-63819-0100 | 适用产品/相关产品 | 0503948051 |
环境参数
| 工作温度 | -40C to 105C | ||
