点击放大查看

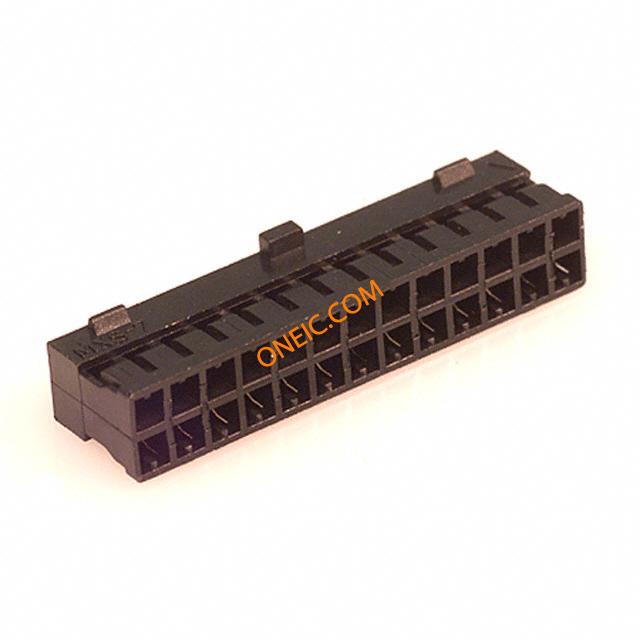

51110-2651
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2MM 26POS POLARIZED Housing 2.00mm Milli-Grid,26w Headers & Wire Housings 26CIR CRIMP HOUSING Conn Housing RCP 26 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLI-GRID, 2MM, 26WAY Crimp housing Pitch2 mm Poles 26 Milli-Grid, 51110-2651, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 26 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511102651 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | :94V-0 |
电气参数
| 量程（°/s） | :MOLEX - Milli-Grid 51110 Series | 最大额定电流 | 500 mA |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 26.2mm | 重量 | 0.00001 |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | :- |
| 壳体材料 | PET | 连接器颜色 | :Black |
| 触点数 | 26 | 接触件端接 | Crimp |
| 位数 | 26 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| 产品特性 | Polarizing Key | 极性 | :Center Polarization Key |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 应用细节 | Signal, Wire-to-Board | 适用产品/相关产品 | Milli-Grid Connector |
环境参数
| 工作温度 | :+105°C | ||
文档与媒体
相关型号
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm
0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

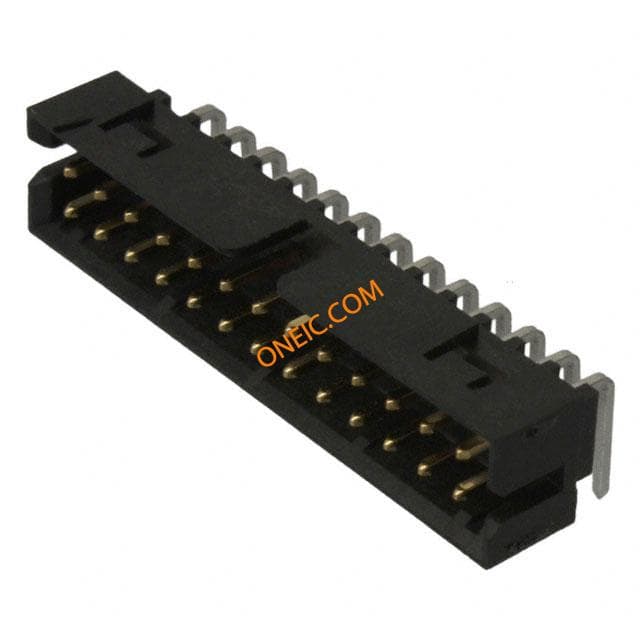

0878332620
molex
Conn Shrouded Header HDR 26 POS 2mm Solder RA Thru-Hole Tube HEADER SHRD RA/SLOT 26CKT

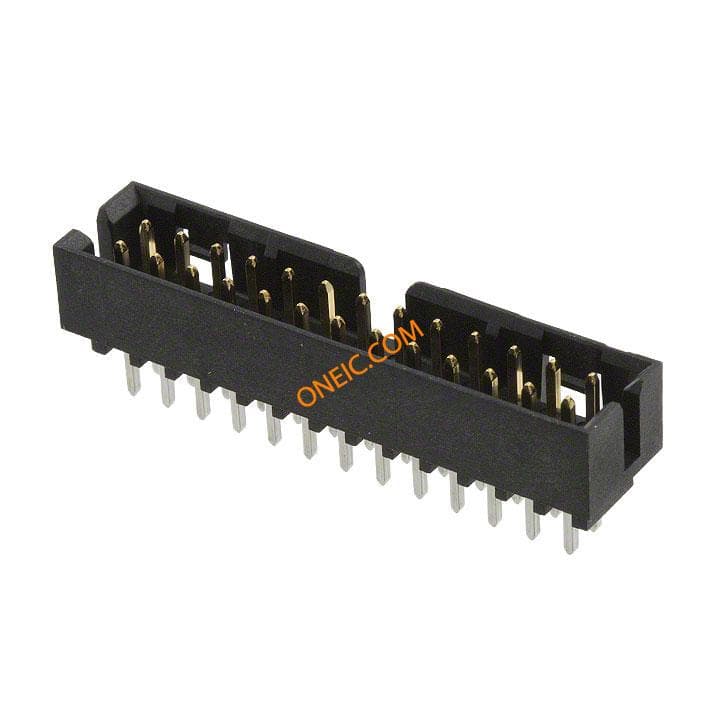

0878312620
molex
Conn Shrouded Header HDR 26 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 26POS 2MM VERT GOLD
0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD
0878322620
Molex
Conn Shrouded Header HDR 26 POS 2mm Solder ST SMD Tube CONN HEADER 26POS STR 2MM SMD AU
0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM

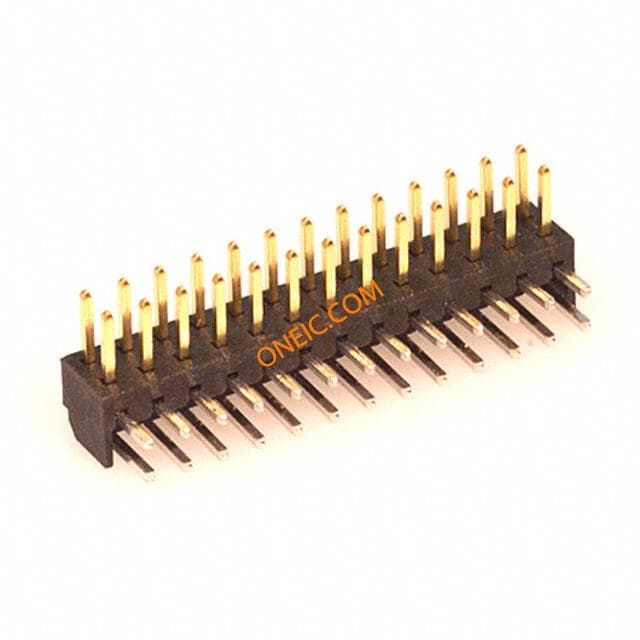

87760-2616
