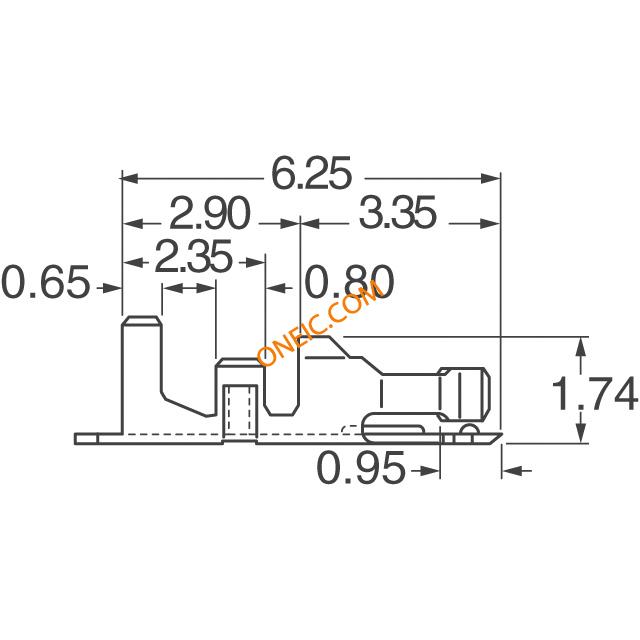

点击放大查看

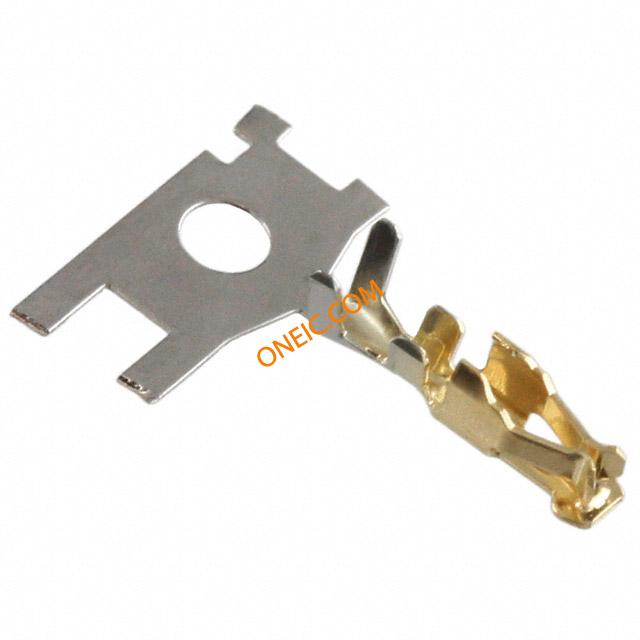

0503948052
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD |
| 分类 |
商业参数
| 其他名称 | WM2139CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 40 mohm | 最大额定电流 | 1.5 A |
| 最小供电电压 | 125V | ||
机械参数
| 深度 | 1.88 mm | 间距 | Not Required mm |
| 高度 | 2 mm | 包装方式 | Reel |
| 导线线规 | 24-30 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 6.25 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号

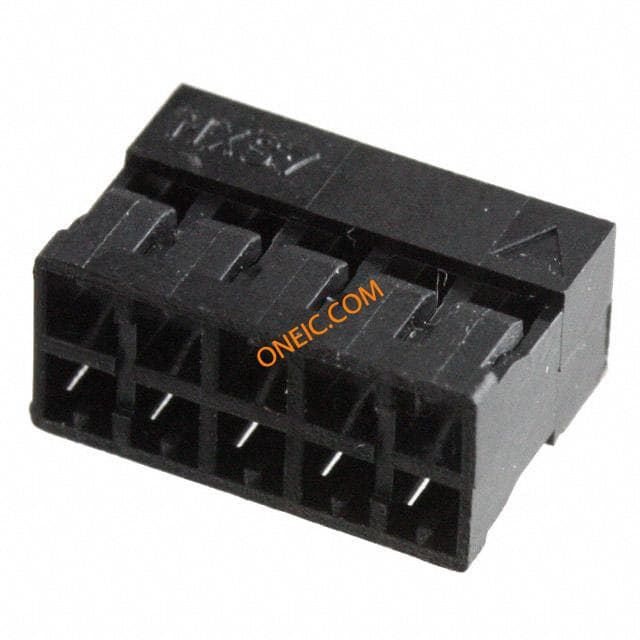

0511101050
molex
Conn Housing RCP 10 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 10POS

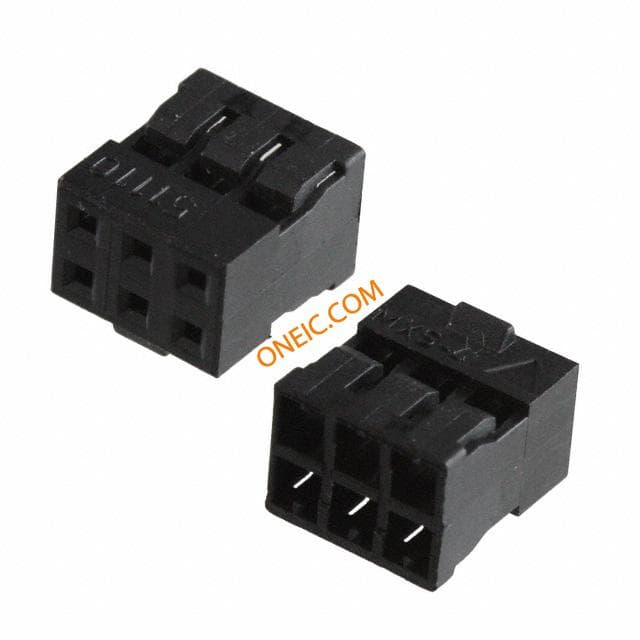

0511100660
Molex, LLC
. 0511100660 - 6 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now!

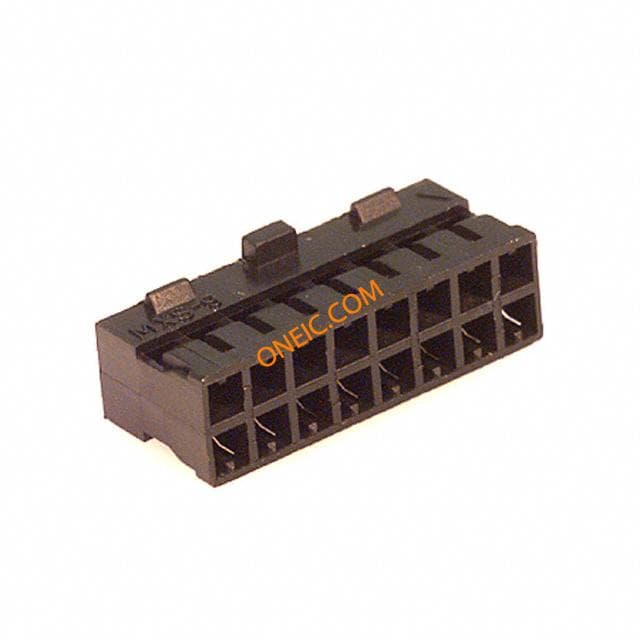

0511101651
molex
Conn Housing RCP 16 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 16POS POLARIZED

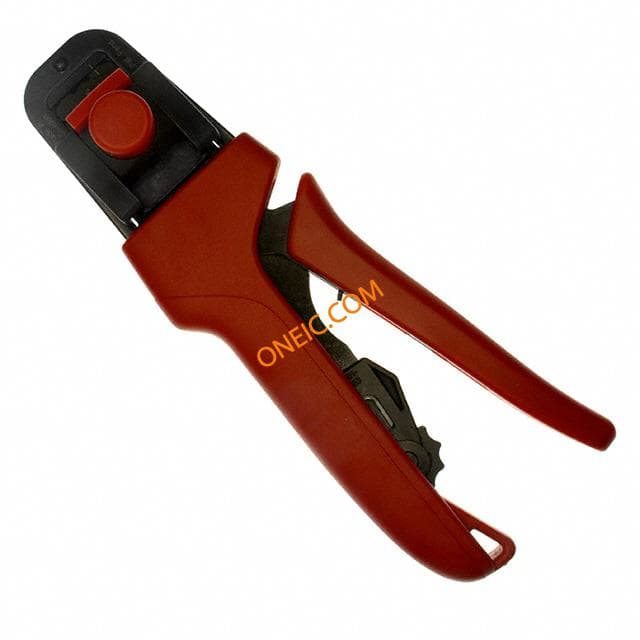

0638190100
molex
Connector Accessories Hand Crimp Tool Hand Crimp Tool For Milli-Grid And Micro Blade Crimp Terminals TOOL HAND CRIMP 24-30AWG Tool: for crimping; terminals; 24÷30AWG

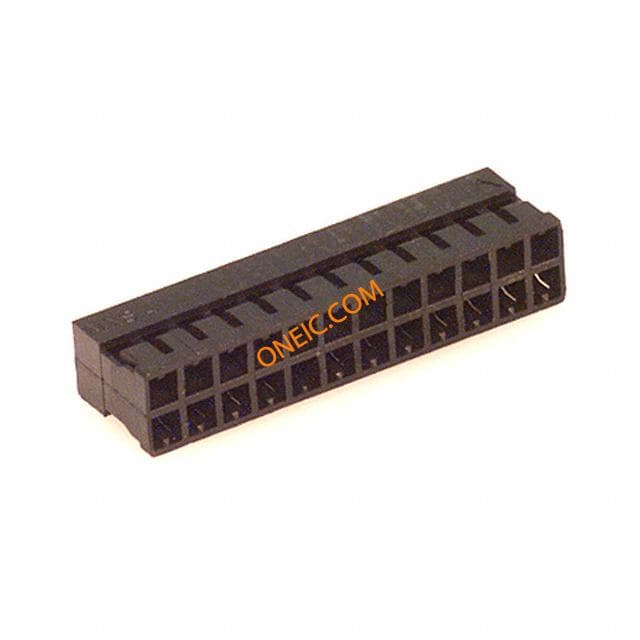

51110-2450
molex
Conn Housing RCP 24 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 24POS Headers & Wire Housings 24CIR CRIMP HOUSING 2.00mm Pitch, Milli-Grid™ Crimp Housing, 24 Circuits, without Center Polarization Key, without Locking Ramp, Lead-Free

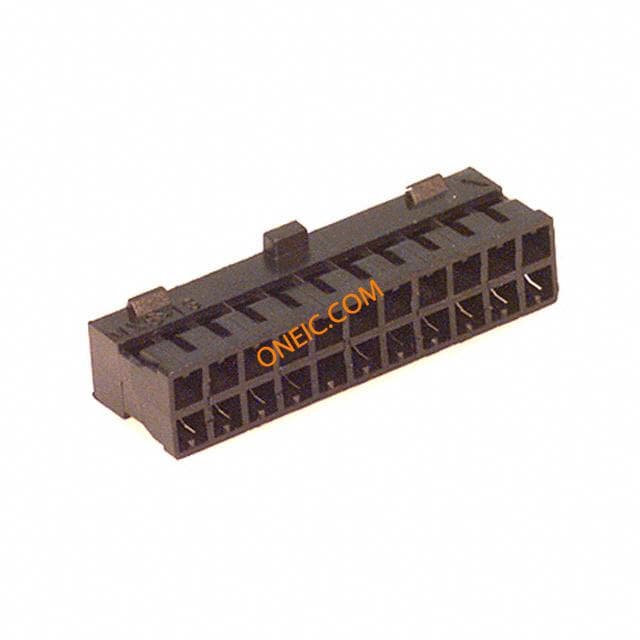

51110-2251
molex
Conn Housing RCP 22 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 22POS POLARIZED Housing 2.00mm Milli-Grid,22w Headers & Wire Housings 22CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 22 路 直 母 电缆安装 压接连接器外壳

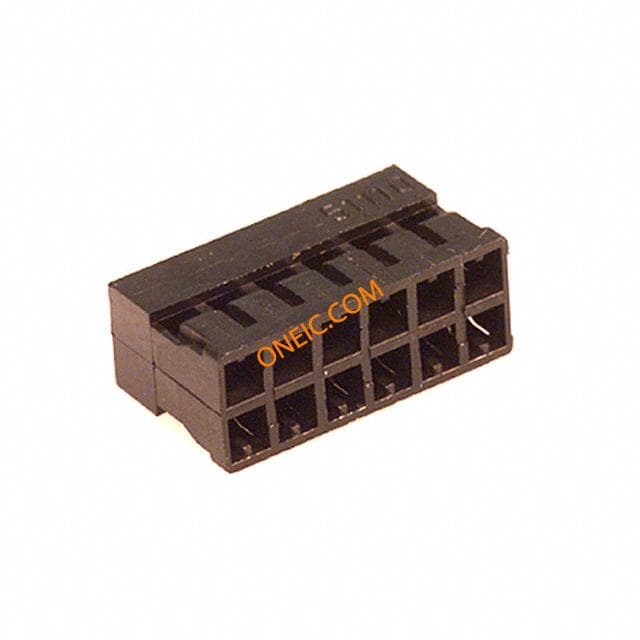

51110-1250
molex
Conn Housing RCP 12 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 12POS Housing 2.00mm Milli-Grid,12w Headers & Wire Housings 12CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 12 路 直 母 电缆安装 压接连接器外壳
0639105200
Molex
T2 Terminator Die T2 TERMINATOR ASSEMBLY

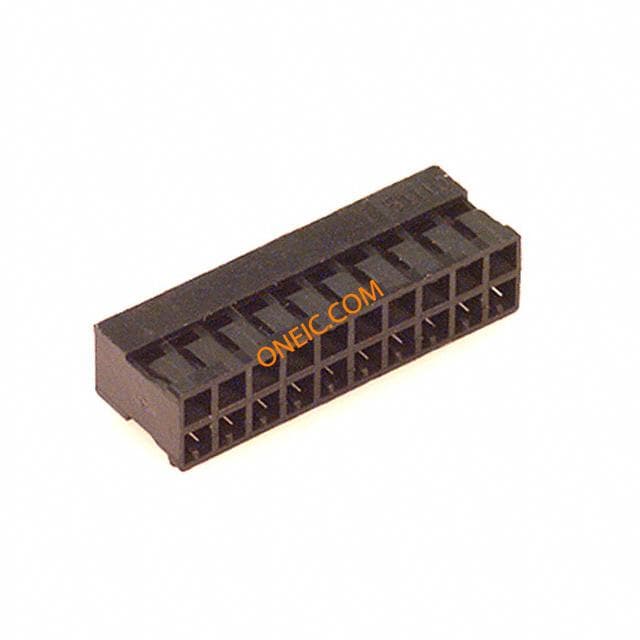

0511102051
Molex, LLC
. 0511102051 - 20 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now!
0780451060
Molex
Conn Housing F 10 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 10POS WTB CRIMP BLK
0639005200
Molex
Fine Adjust 1.25mm Pitch Crim Terminal, 28-32 AWG TOOL APPLICATOR 24-30AWG CRIMP
51110-0450
Molex Connector Corporation
CONN HOUSING 2MM 4POS Housing 2.00mm Milli-Grid,4w Headers & Wire Housings 4CIR CRIMP HOUSING 2.00mm Pitch, Milli-Grid™ Crimp Housing, 4 Circuits, without Center Polarization Key, without Locking Ramp, Lead-Free CRIMP HOUSING, MILLIGRID, 4WAY Molex MILLI-GRID 系列 2 行 2mm 节距 4 路 直 母 电缆安装 压接连接器外壳

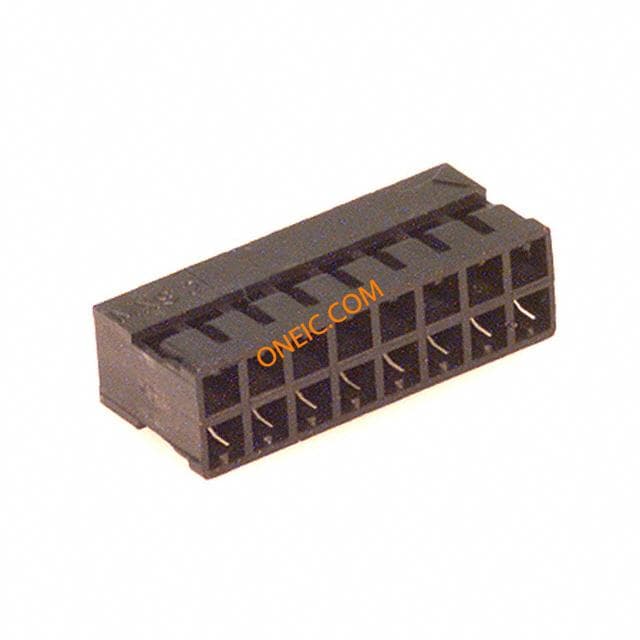

51110-1650
Molex Connector Corporation
CONN HOUSING 2MM 16POS Housing 2.00mm Milli-Grid,16w, Headers & Wire Housings 16CIR CRIMP HOUSING Conn Housing RCP 16 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLIGRID, 16WAY Molex MILLI-GRID 系列 2 行 2mm 节距 16 路 直 母 电缆安装 压接连接器外壳

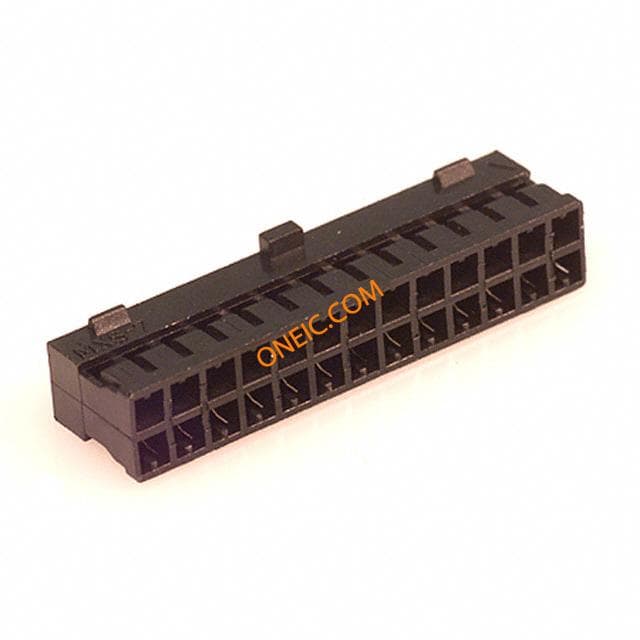

51110-2651
Molex Connector Corporation
CONN HOUSING 2MM 26POS POLARIZED Housing 2.00mm Milli-Grid,26w Headers & Wire Housings 26CIR CRIMP HOUSING Conn Housing RCP 26 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLI-GRID, 2MM, 26WAY Crimp housing Pitch2 mm Poles 26 Milli-Grid, 51110-2651, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 26 路 直 母 电缆安装 压接连接器外壳

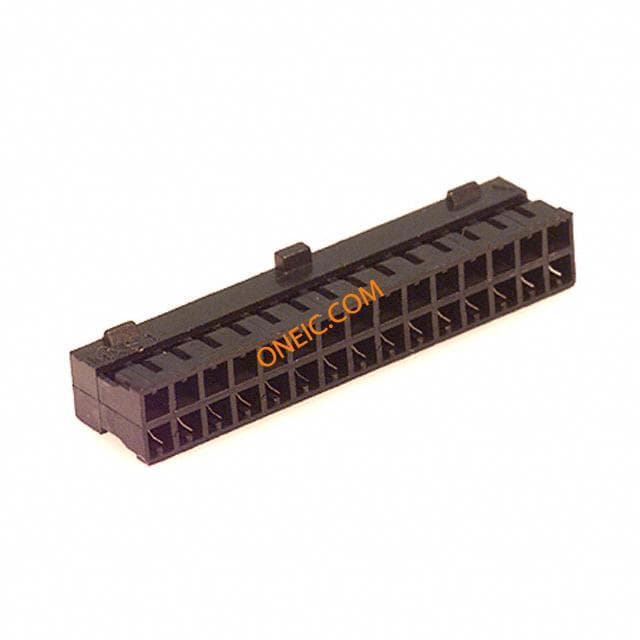

51110-3051
Molex Connector Corporation
CONN HOUSING 2MM 30POS POLARIZED Housing 2.00mm Milli-Grid,30w Headers & Wire Housings 30CIR CRIMP HOUSING Conn Housing RCP 30 POS 2mm Crimp ST Cable Mount Bag Molex MILLI-GRID 系列 2 行 2mm 节距 30 路 直 母 电缆安装 压接连接器外壳

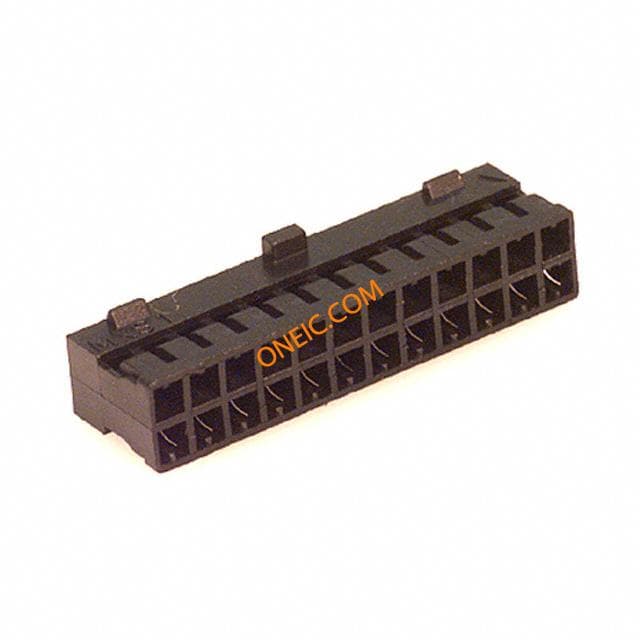

51110-2451
Molex Connector Corporation
CONN HOUSING 2MM 24POS POLARIZED Housing 2.00mm Milli-Grid,24w Headers & Wire Housings 24CIR CRIMP HOUSING Conn Housing RCP 24 POS 2mm ST Bag Conn Housing RCP 24 POS 2mm Crimp ST Bag WIRE-BOARD CONN, RCPT, 24WAY, 0.079IN Molex MILLI-GRID 系列 2 行 2mm 节距 24 路 直 母 压接连接器外壳

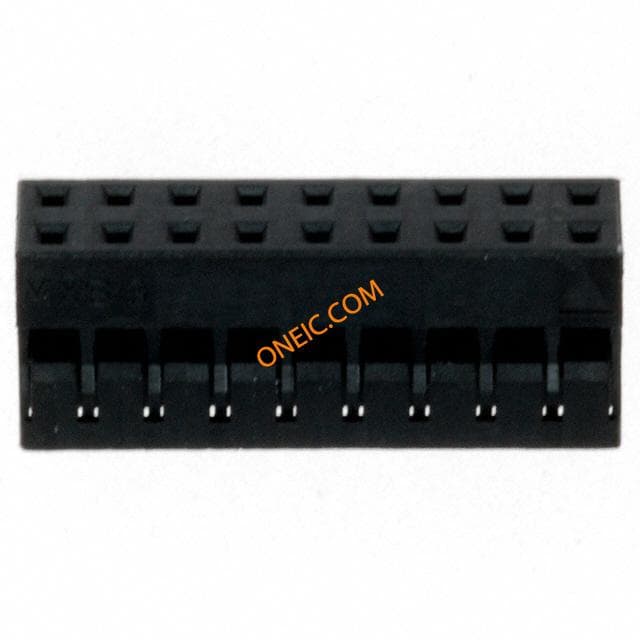

51110-1850
Molex Connector Corporation
CONN HOUSING 2MM 18POS Headers & Wire Housings 18CIR CRIMP HOUSING 2.00mm Pitch, Milli-Grid™ Crimp Housing, 18 Circuits, without Center Polarization Key, without Locking Ramp, Lead-Free

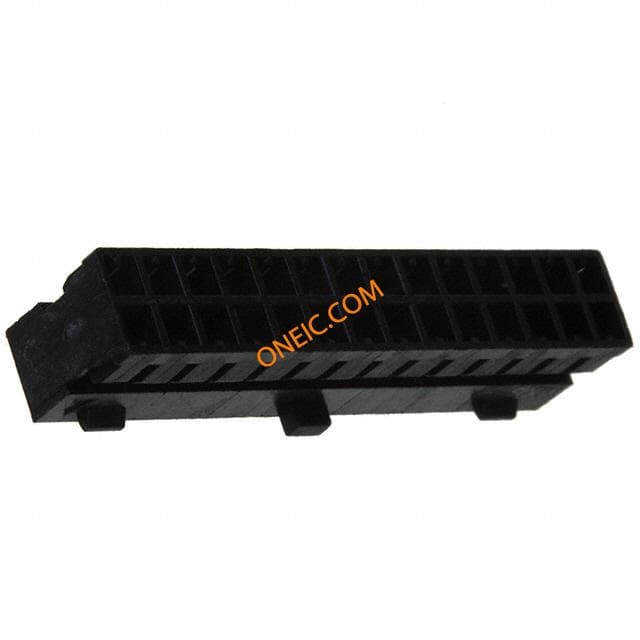

51110-2851
Molex Connector Corporation
CONN HOUSING 2MM 28POS POLARIZED Housing 2.00mm Milli-Grid,28w Headers & Wire Housings 28CIR CRIMP HOUSING Conn Housing RCP 28 POS 2mm Crimp ST Cable Mount Bag Molex MILLI-GRID 系列 2 行 2mm 节距 28 路 直 母 电缆安装 压接连接器外壳

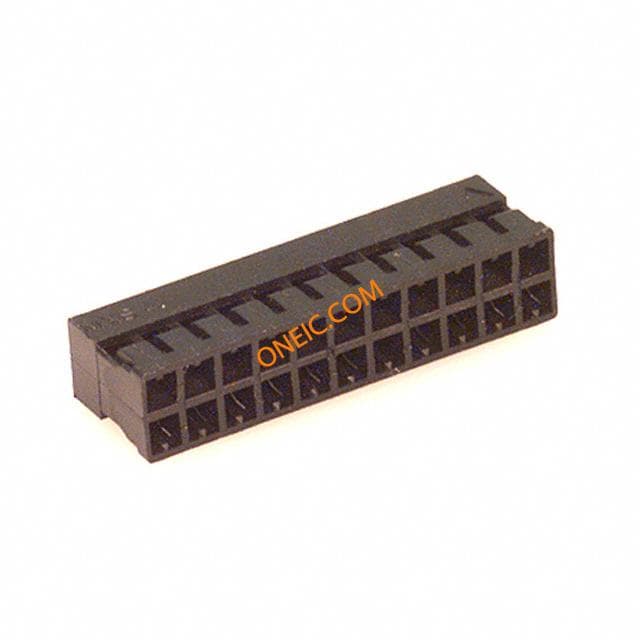

51110-2250
