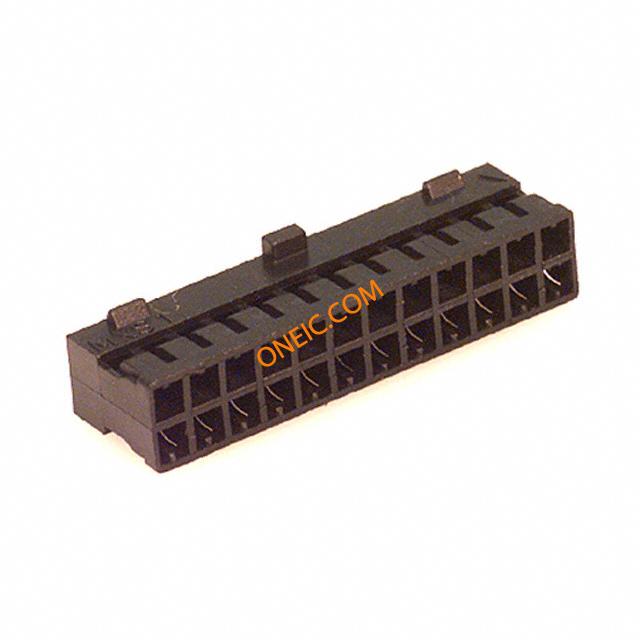

51110-2451
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2MM 24POS POLARIZED Housing 2.00mm Milli-Grid,24w Headers & Wire Housings 24CIR CRIMP HOUSING Conn Housing RCP 24 POS 2mm ST Bag Conn Housing RCP 24 POS 2mm Crimp ST Bag WIRE-BOARD CONN, RCPT, 24WAY, 0.079IN Molex MILLI-GRID 系列 2 行 2mm 节距 24 路 直 母 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511102451 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 500 mA | 连接器类型 - 电压输入 | Female |
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 24.2mm | 重量 | 0.009 |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 触头类型 | Female Socket | 基体材料 | :Glass-filled Polyester |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 壳体材料 | PET | 触点数 | 24 |
| 接触件端接 | Crimp | 位数 | 24 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 应用细节 | Signal, Wire-to-Board |
| 适用产品/相关产品 | Milli-Grid Connector | ||
