点击放大查看

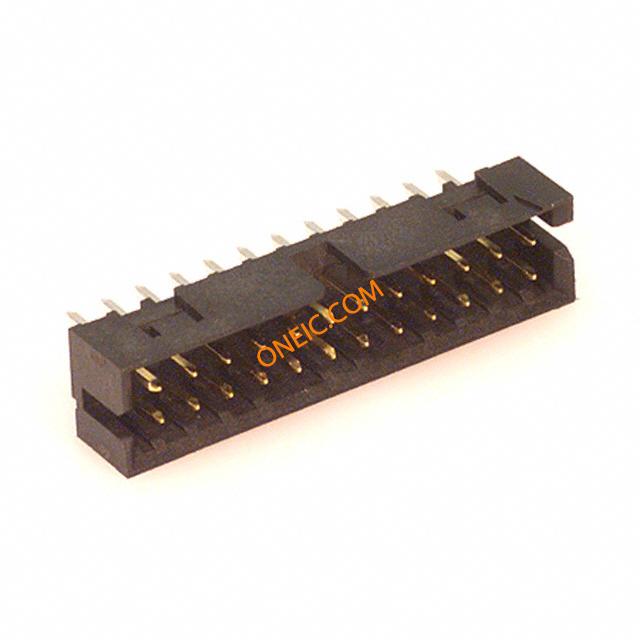

0878312420
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 24 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 24POS 2MM VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 6.3 mm |
| 间距 | 2 mm | 高度 | 6.4 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 46 |
| 总长度 | 26.65 mm | 触点数 | 24 |
| 位数 | 24 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 已删除 | Compliant | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0791077261
molex
Conn Socket Strip RCP 24 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 24CKT
0791098611
molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 24CKT
0791081061
molex
Conn FFC/FPC Connector SKT 24 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 24CKT
0791077061
molex
Conn Socket Strip RCP 24 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 24POS
0791098461
molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 24CKT
51110-2450
molex
Conn Housing RCP 24 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 24POS Headers & Wire Housings 24CIR CRIMP HOUSING 2.00mm Pitch, Milli-Grid™ Crimp Housing, 24 Circuits, without Center Polarization Key, without Locking Ramp, Lead-Free

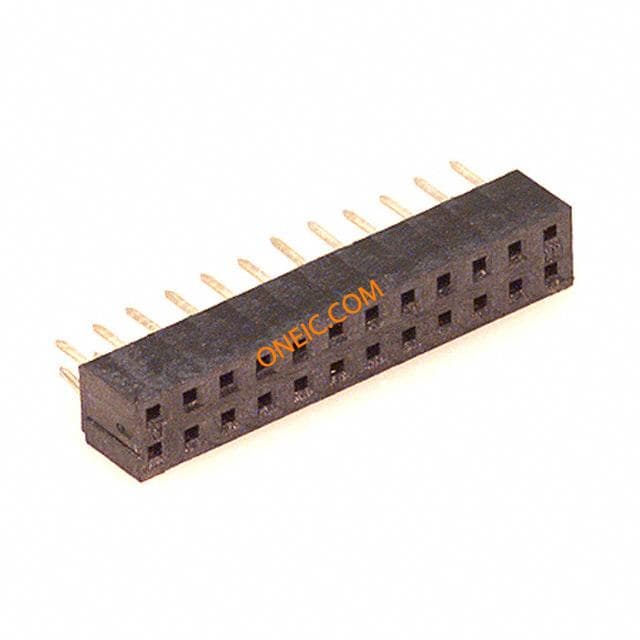

79107-7011
molex
Conn Socket Strip RCP 24 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 24POS VERT Headers & Wire Housings 2MM RECEPT. 24 CKT Vert Selective Gold BOARD-BOARD CONNECTOR RECEPTACLE, 24WAY, 2ROW
76650-0195
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,14,16,20,24,30,4,40,44,50,6POS 0.5-2A THROUGH HOLE, SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MILLI-GRID DELUXE COMPONENT KITS, WIRE TO BOARD KIT 10,14,16,20,24,30,4,40,44,50,6POS 0.5-2A THROUGH HOLE, SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER 2MM PITCH 125V 24-30 ... Kit Description:SMT Vertical Header, Through-Hole Vertical and Right Angle Header and Receptacle and IDT ReceptacleKit Category:Wire to Board Solution:Off the BoardPackaging:Tackle Box: 11" by 7.25"Num. Pieces:160 MILLI-GRID DELUXE CONNECTOR KIT
0791098411
Molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 24CKT
0791098661
Molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 24CKT
0791081011
Molex
Conn FFC/FPC Connector SKT 24 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 24CKT

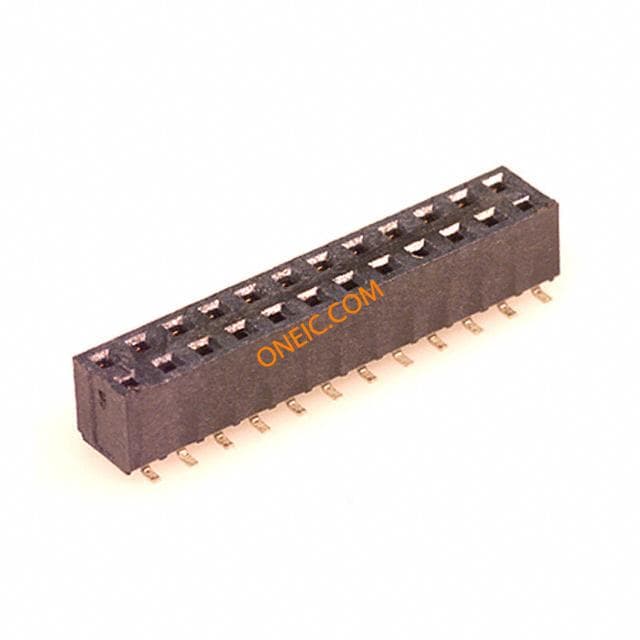

79109-1011
molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Tube CONN RECEPT 24POS 2MM VERT SMD Headers & Wire Housings 2MM RECEPT. 24 CKT Vert. Selective Gold
0791091211
Molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 24CKT
0791077211
Molex
Conn Socket Strip RCP 24 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 24CKT

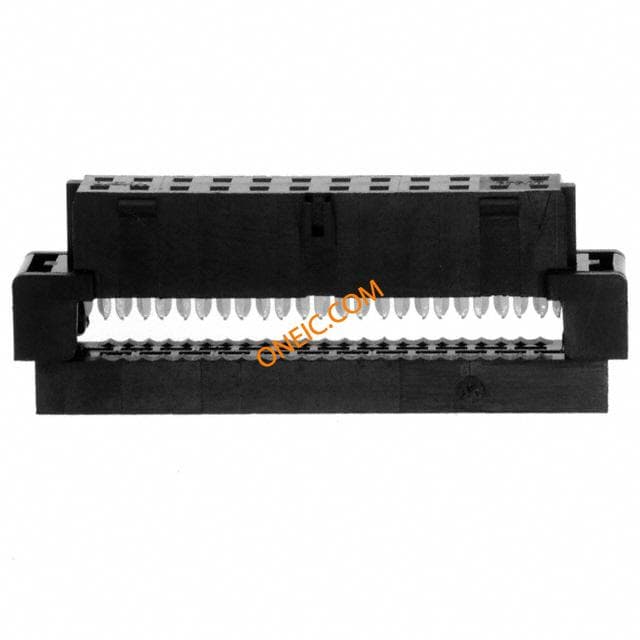

0875682493
Molex
Conn IDC Connector RCP 24 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 24POS 2MM IDT GOLD
0791091261
Molex
Conn Socket Strip RCP 24 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 24CKT
51110-2451
Molex Connector Corporation
CONN HOUSING 2MM 24POS POLARIZED Housing 2.00mm Milli-Grid,24w Headers & Wire Housings 24CIR CRIMP HOUSING Conn Housing RCP 24 POS 2mm ST Bag Conn Housing RCP 24 POS 2mm Crimp ST Bag WIRE-BOARD CONN, RCPT, 24WAY, 0.079IN Molex MILLI-GRID 系列 2 行 2mm 节距 24 路 直 母 压接连接器外壳

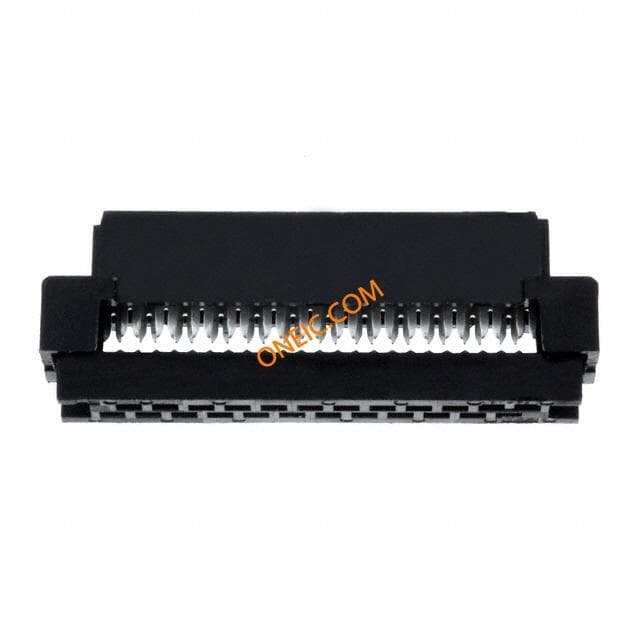

87568-2463
