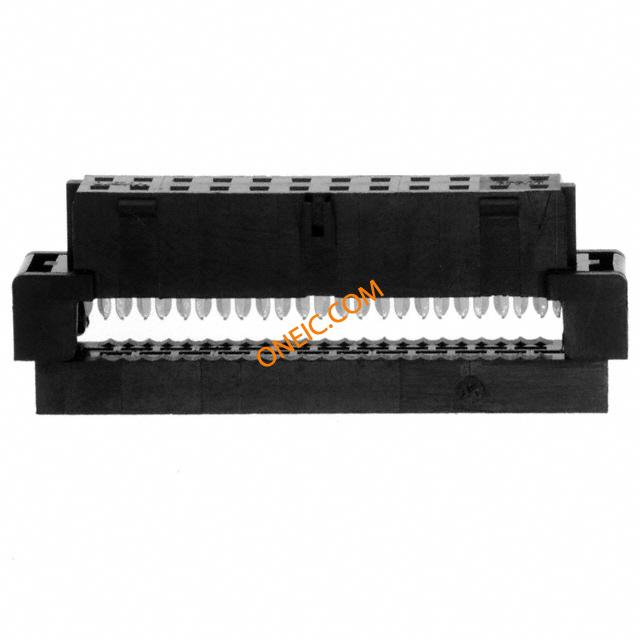

0875682493

制造商	Molex, LLC
描述	Conn IDC Connector RCP 24 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 24POS 2MM IDT GOLD

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	30	最大额定电流	1/Contact
最小输入电压	125V

机械参数

颜色	Black	深度	5.87
间距	0.079" (2.00mm)	高度	11.4
包装方式	Tray	导线类型	Ribbon Cable
导线线规	28 AWG	排间距	0.079" (2.00mm)
端接方式	IDT	触头类型	Female Socket
外壳颜色	Black	安装类型	Cable Mount
连接器类型	Receptacle	接触镀层	Gold Over Nickel
紧固类型	Locking Ramp	排数	2
触头材料	Copper Alloy	壳体材料	Polybutylene Terephthalate
总长度	30.65	电缆端接方式	IDC
触点数	24	位数	24
接触镀层厚度	15µin (0.38µm)

产品信息

类型	IDC Connector	连接器性别	RCP
产品特性	Feed Through, Polarizing Key
