点击放大查看

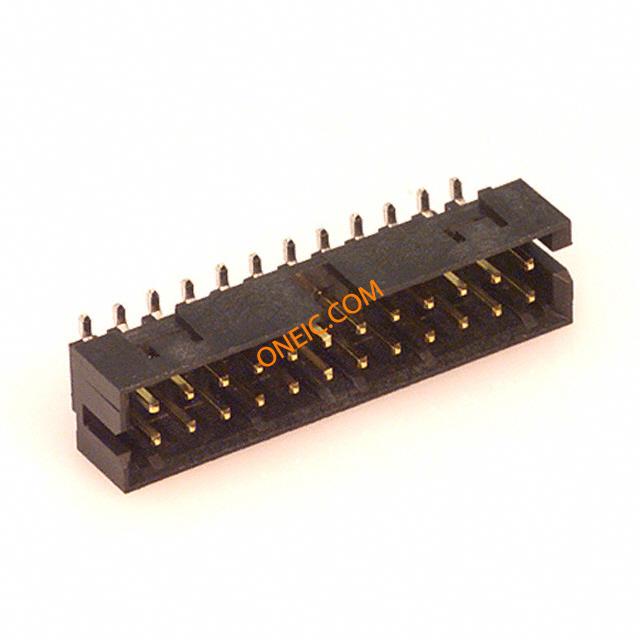

0878322420
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 24 POS 2mm Solder ST SMD Tube CONN HEADER 24POS 2MM VERT SMD |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact | 最小输入电压 | 125V |
机械参数
| 颜色 | Black | 深度 | 6.3 |
| 间距 | 0.079" (2.00mm) | 高度 | 7.6 |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 4/6 | 总长度 | 26.65 |
| 触点数 | 24 | 位数 | 24 |
| 接触长度 - 配合 | 0.141" (3.60mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Board Guide | 加载位置数 | All |
