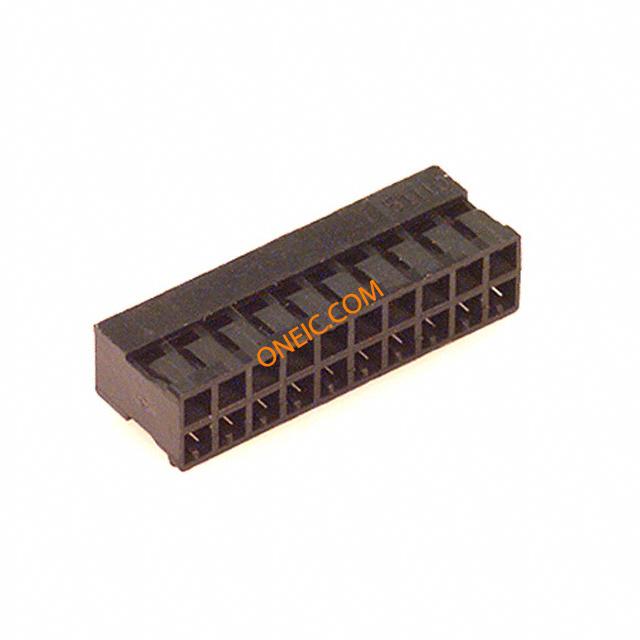

0511102051
| 制造商 | Molex, LLC |
| 描述 | . 0511102051 - 20 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now! |
| 分类 |
商业参数
| 交货时间 | 51 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125VDC|125VAC |
| 最小供电电压 | 125VDC/125VAC | ||
机械参数
| 颜色 | Black | 深度 | 7 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 4.8 mm |
| 包装方式 | Bag | 导线线规 | 24-30 |
| 排间距 | 0.079" (2.00mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 2 | 壳体材料 | Polyester |
| 总长度 | 20.2 mm | 触点数 | 20 |
| 接触件端接 | Crimp | 位数 | 20 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Polarizing Key |
| 行业别名 | 51110-2051, 511102051 | ||
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm

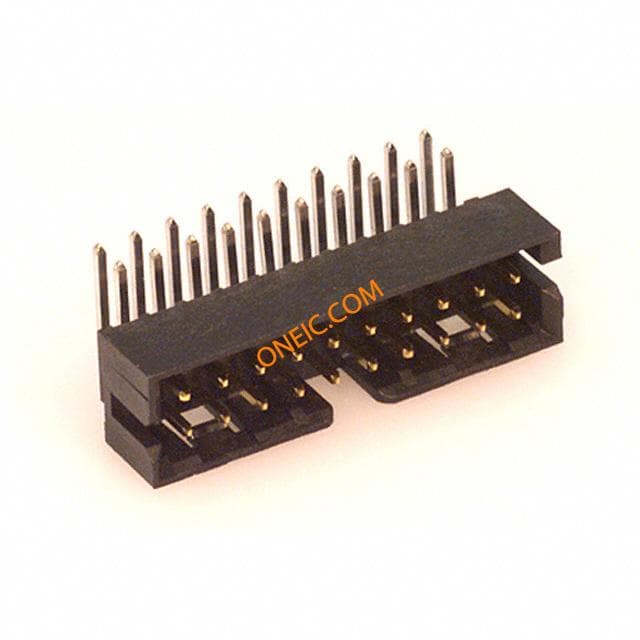

0878332020
molex
Conn Shrouded Header HDR 20 POS 2mm Solder RA Thru-Hole Tube CONN HEADER 20POS 2MM R/A GOLD
0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

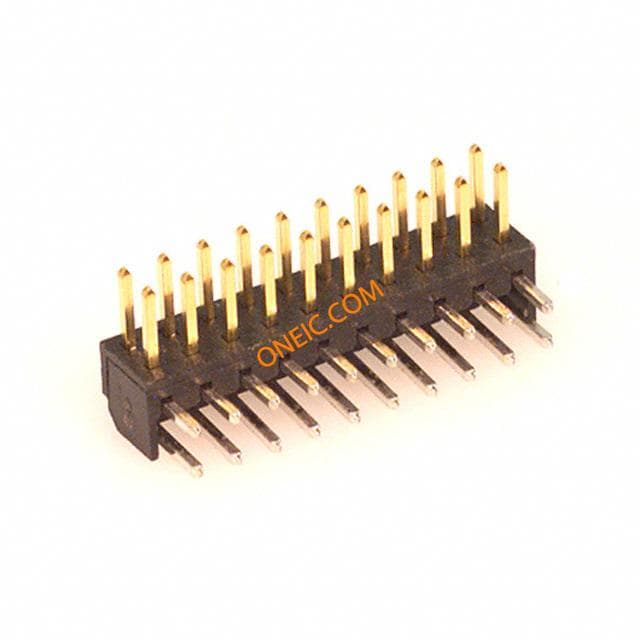

0877602016
molex
Conn Unshrouded Header HDR 20 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 20POS 2MM R/A GOLD

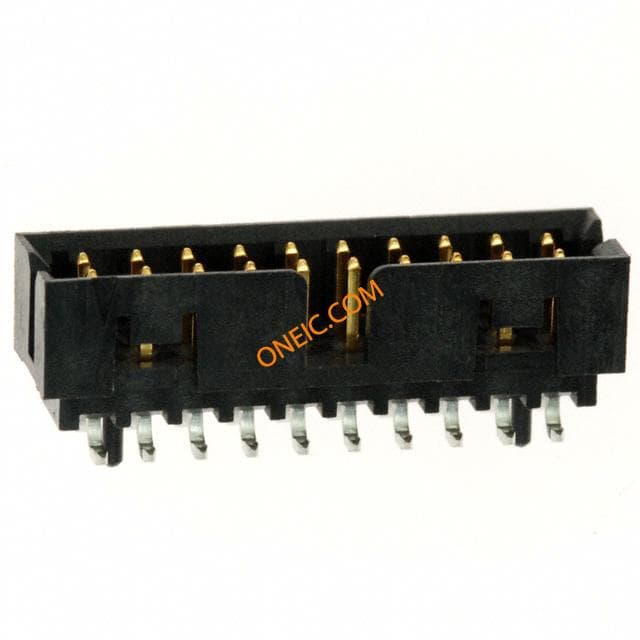

0878322020
molex
Conn Shrouded Header HDR 20 POS 2mm Solder ST SMD Tube CONN HEADER 20POS 2MM VERT SMD

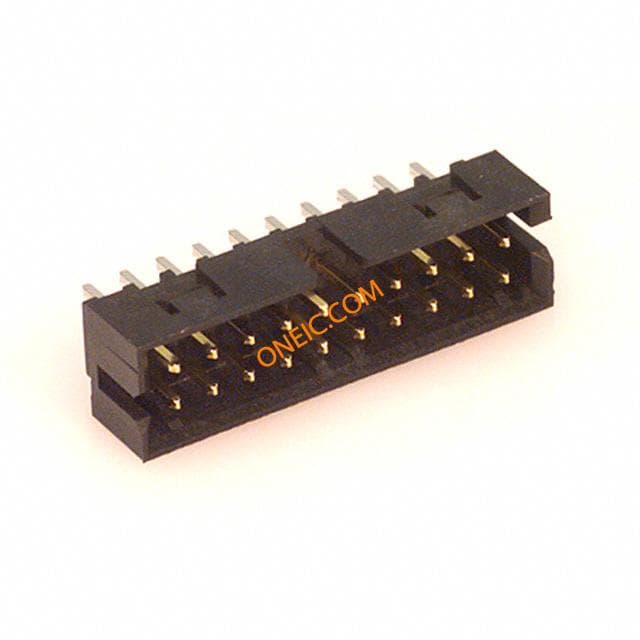

0878312020
molex
Conn Shrouded Header HDR 20 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 20POS 2MM VERT GOLD
0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD

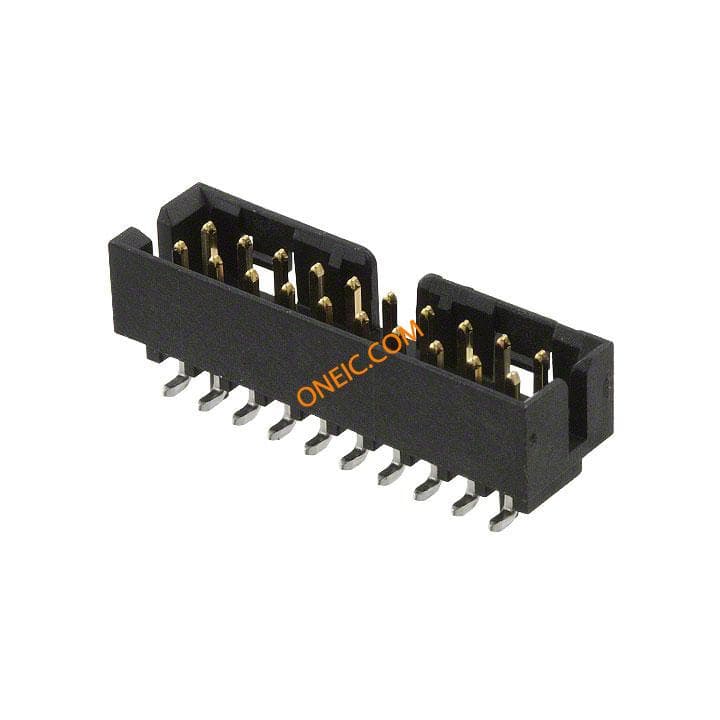

0878325923
Molex
Conn Shrouded Header HDR 20 POS 2mm Solder ST SMD Embossed T/R CONN HEADER 20POS VERT 2MM SMD
0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM
