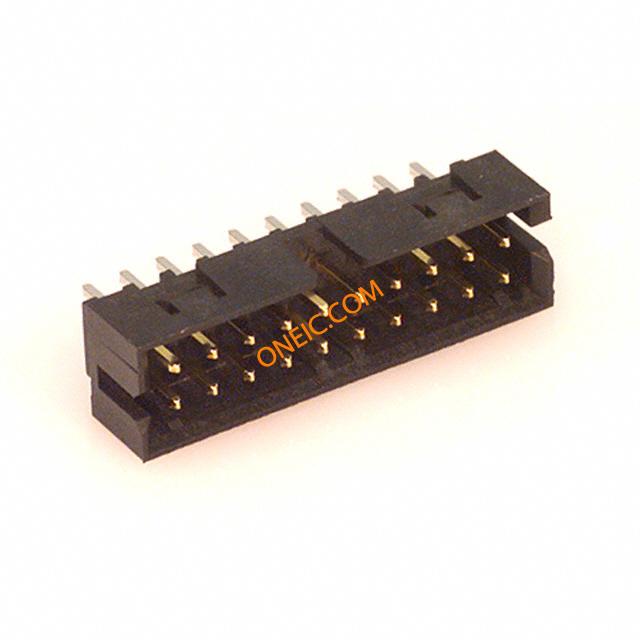

0878312020
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 20 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 20POS 2MM VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 6.3 mm |
| 间距 | 2 mm | 高度 | 6.4 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 46 |
| 总长度 | 22.65 mm | 触点数 | 20 |
| 位数 | 20 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 已删除 | Compliant | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
文档与媒体
相关型号
0791081009
molex
Conn FFC/FPC Connector SKT 20 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 20CKT
0791077134
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 20POS
0791091009
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Tube CONN RECEPT 20POS 2MM VERT SMD
0791081059
molex
Conn FFC/FPC Connector SKT 20 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 20CKT
0791091059
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 20CKT SMD
0791091259
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 20CKT
0791098409
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 20CKT
0791077059
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 20POS
0791099005
molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD T/R CONN RCPT 2MM DL GOLD SMD 20CKT
0791098659
Molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 20CKT
0791077209
Molex
Conn Socket Strip RCP 20 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 20CKT

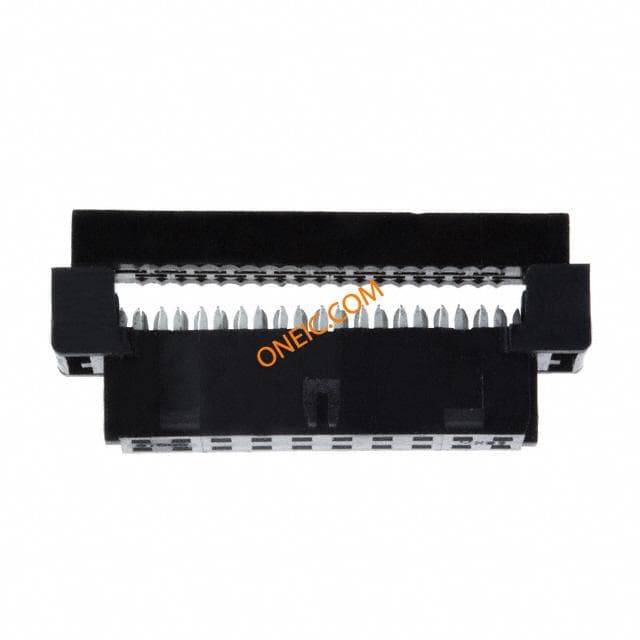

0875682093
Molex
Conn IDC Connector RCP 20 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 20POS 2MM IDT GOLD
0791077259
Molex
Conn Socket Strip RCP 20 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 20CKT
0511102051
Molex, LLC
. 0511102051 - 20 Position Rectangular Housing Connector Receptacle Black 0.079" (2.00mm) from Molex. from now!
0791098609
Molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 20CKT
0791091209
Molex
Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 20CKT

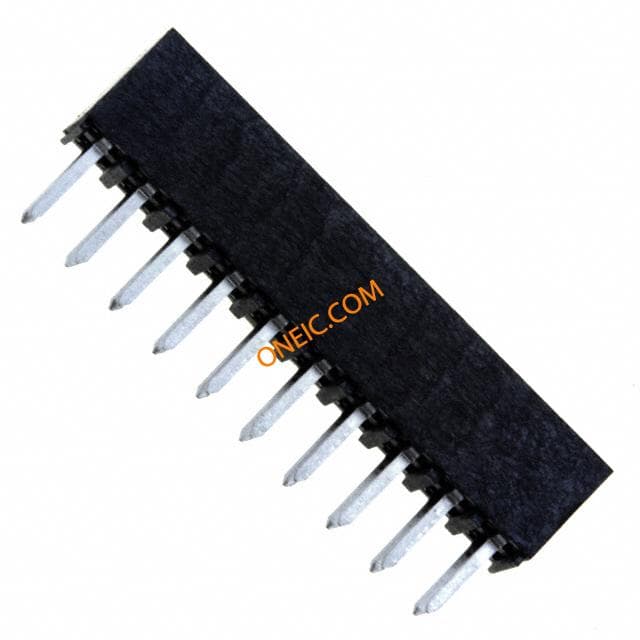

0791077009
Molex
Conn Socket Strip RCP 20 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 20POS VERT
0791098459
Molex Inc
CONN RCPT 2MM DL SMD GOLD 20CKT Conn Socket Strip RCP 20 POS 2mm Solder ST SMD Embossed T/R
51110-2050
Molex Connector Corporation
CONN HOUSING 2MM 20POS Housing 2.00mm Milli-Grid,20w, Headers & Wire Housings 20CIR CRIMP HOUSING Conn Housing RCP 20 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLIGRID, 20WAY Crimp housing Pitch2 mm Poles 10 Milli-Grid, 51110-2050, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 20 路 直 母 电缆安装 压接连接器外壳

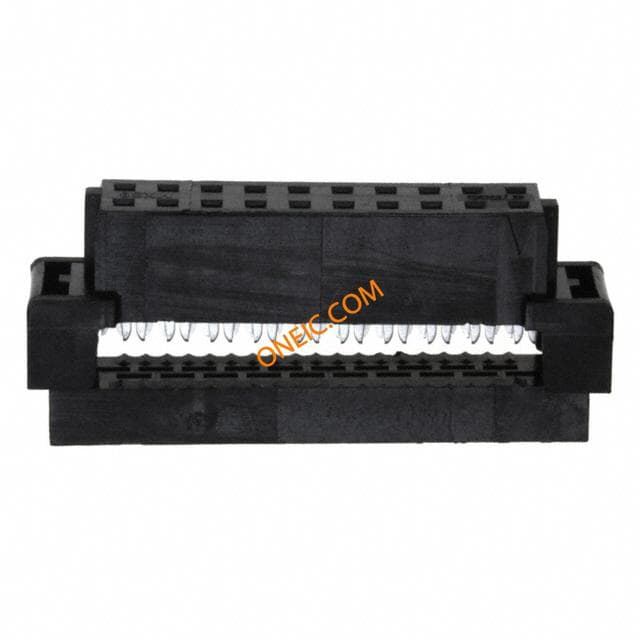

87568-2063
