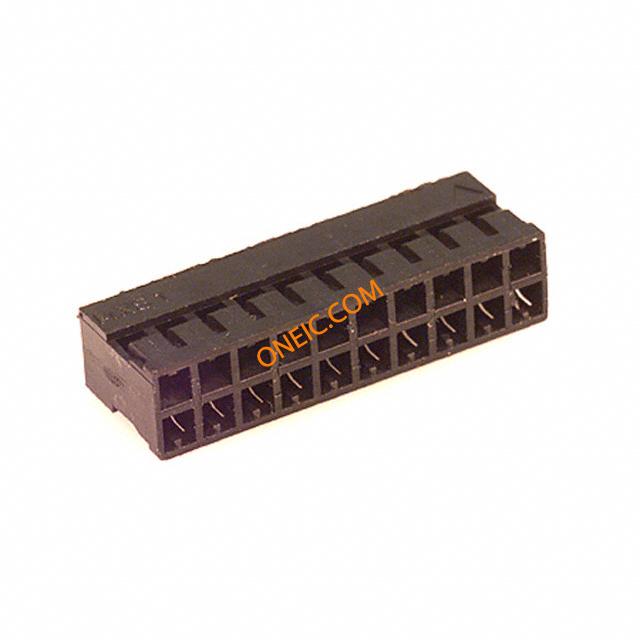

51110-2050
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2MM 20POS Housing 2.00mm Milli-Grid,20w, Headers & Wire Housings 20CIR CRIMP HOUSING Conn Housing RCP 20 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLIGRID, 20WAY Crimp housing Pitch2 mm Poles 10 Milli-Grid, 51110-2050, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 20 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511102050 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Milli-Grid 51110 Series | 额定电压 | :125V |
| 介电强度 | :500V | 最大额定电流 | 500 mA |
| 绝缘电阻 | :1000Mohm | 连接器类型 - 电压输入 | Female |
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 20.2mm | 重量 | 0.043 |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 排数 | 2 |
| 封装形式 | :Black G.F. Polyester | 触头材料 | :- |
| 壳体材料 | PET | 触点数 | 20 |
| 接触件端接 | Crimp | 位数 | 20 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 应用细节 | Signal, Wire-to-Board | 适用产品/相关产品 | Milli-Grid Connector |
