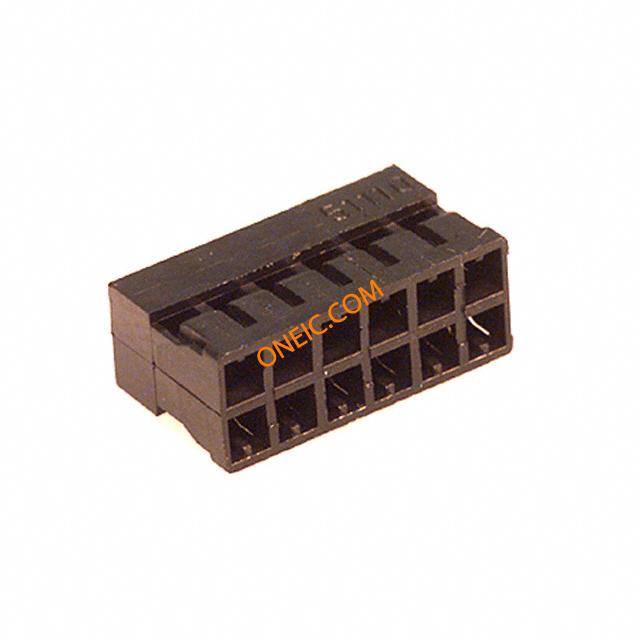

51110-1250
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 12 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 12POS Housing 2.00mm Milli-Grid,12w Headers & Wire Housings 12CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 12 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511101250 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 500 mA | 连接器类型 - 电压输入 | Female |
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 2 mm | 宽度 | 4.8mm |
| 长度 | 12.2mm | 包装方式 | Bulk |
| 导线线规 | 24-30 AWG | 方向 | 直 |
| 排间距 | 0.079" (2.00mm) | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 排数 | 2 | 壳体材料 | PET |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 51110 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 基础产品编号 | 51110 | 应用细节 | Signal, Wire-to-Board |
| 适用产品/相关产品 | Milli-Grid Connector | ||
文档与媒体
相关型号
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm

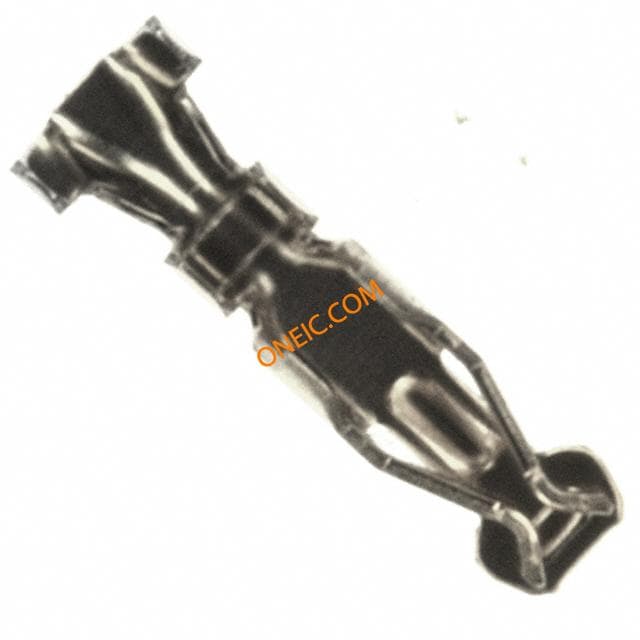

0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

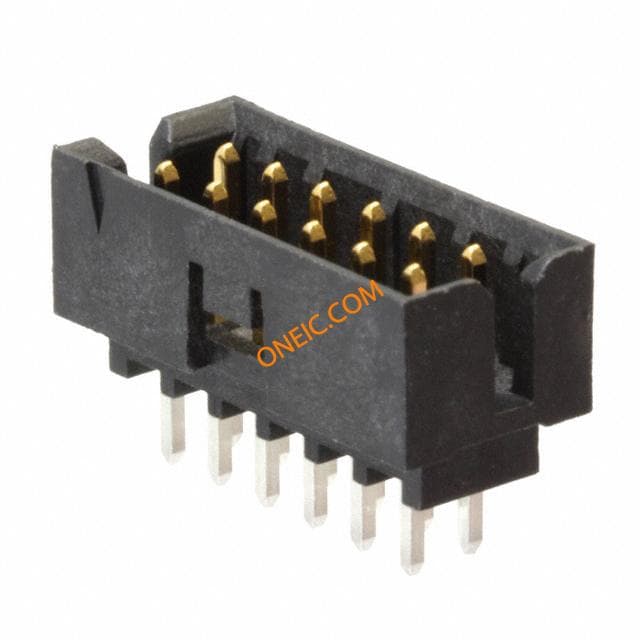

0878311241
molex
Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 12POS VERT 2MM T/H

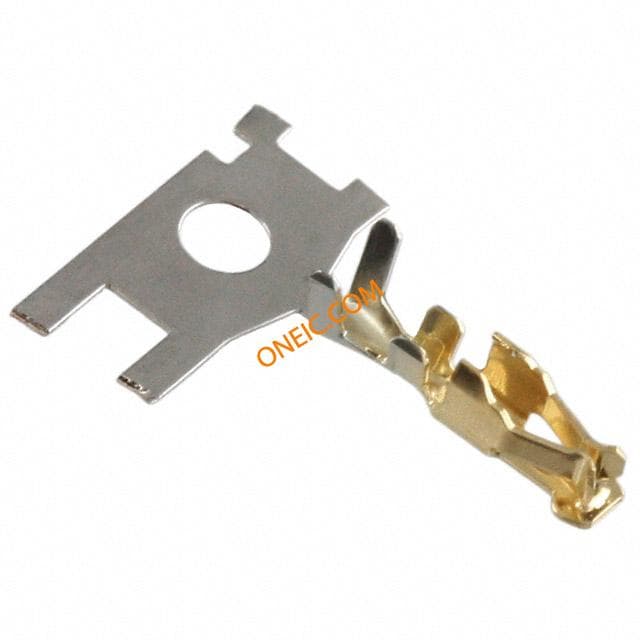

0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD

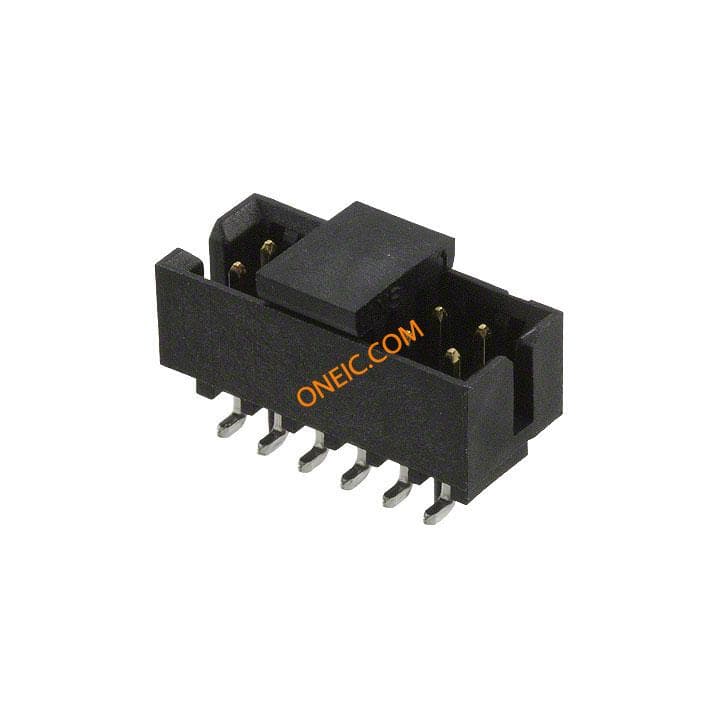

0878321207
molex
Conn Shrouded Header HDR 12 POS 2mm Solder ST SMD Embossed T/R CONN HEADER 12POS VERT 2MM SMD

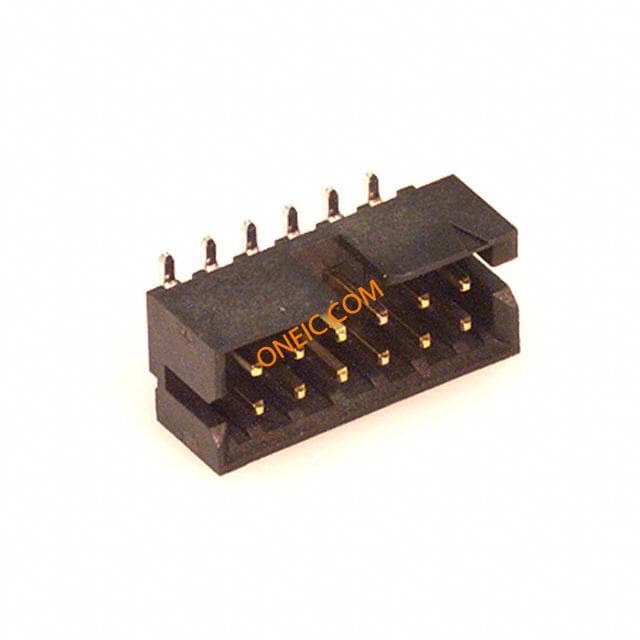

0878321220
Molex
Conn Shrouded Header HDR 12 POS 2mm Solder ST SMD Tube CONN HEADER 12POS 2MM VERT SMD

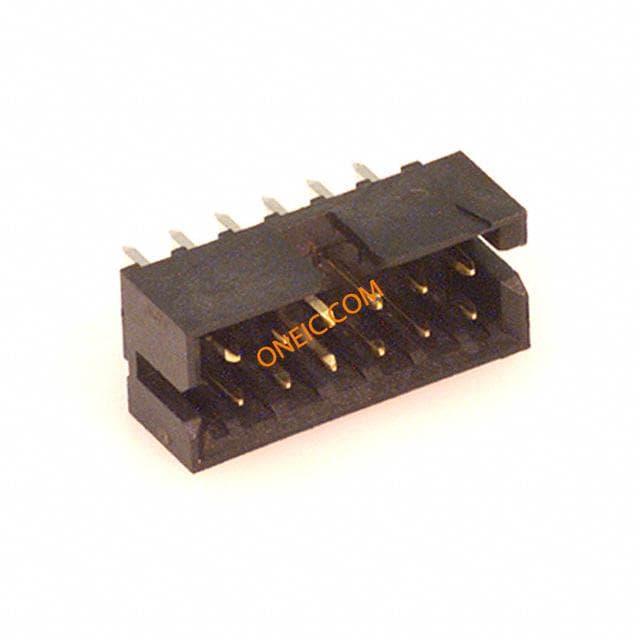

0878311220
Molex
Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 12POS 2MM VERT GOLD

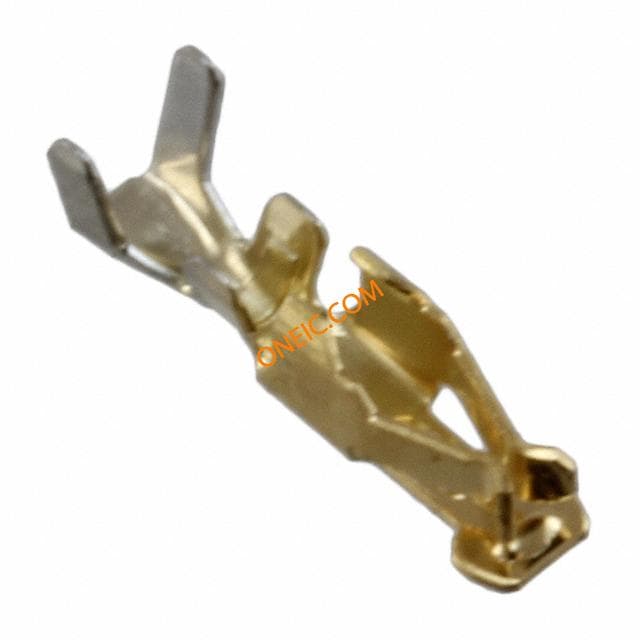

0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM

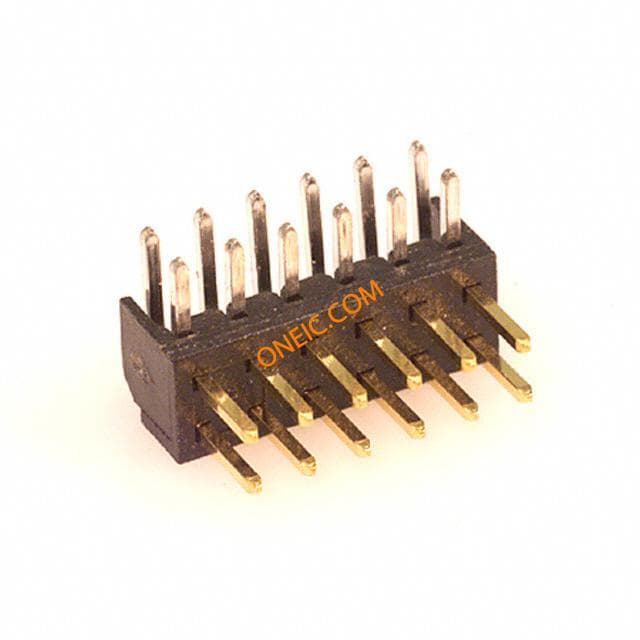

87760-1216
Molex Connector Corporation
CONN HEADER 12POS 2MM R/A GOLD Headers & Wire Housings R/A HEADER 12P Lead Free Conn Unshrouded Header HDR 12 POS 2mm Solder RA Thru-Hole Tray

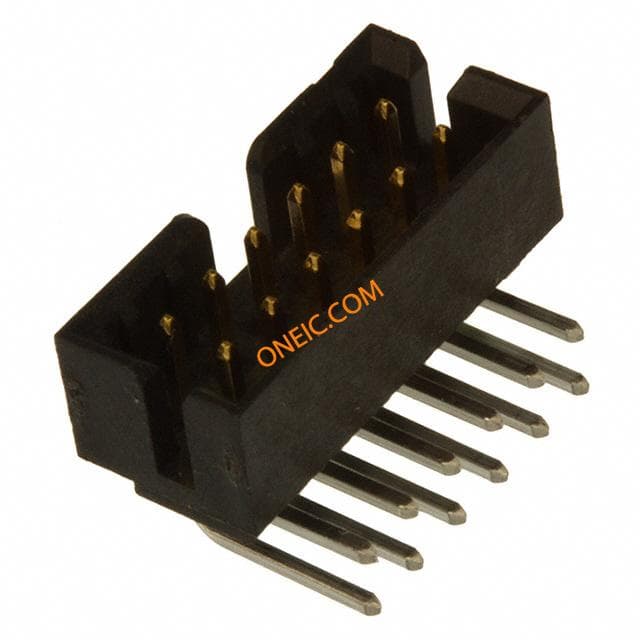

87833-1220
