点击放大查看

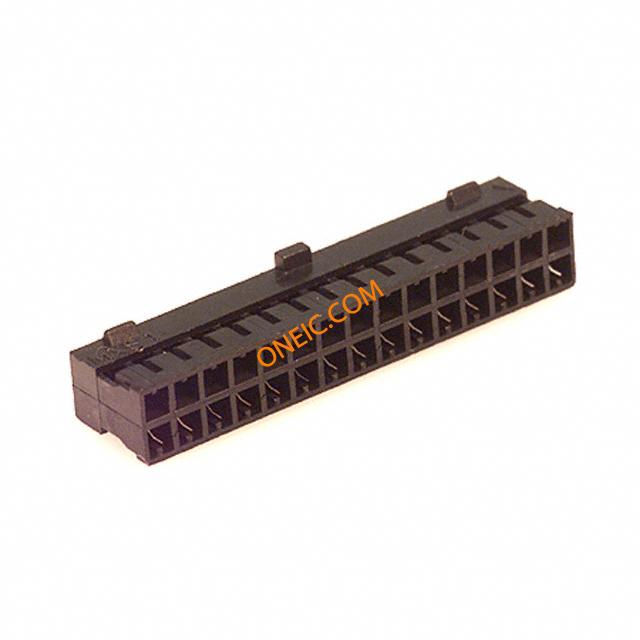

51110-3051
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2MM 30POS POLARIZED Housing 2.00mm Milli-Grid,30w Headers & Wire Housings 30CIR CRIMP HOUSING Conn Housing RCP 30 POS 2mm Crimp ST Cable Mount Bag Molex MILLI-GRID 系列 2 行 2mm 节距 30 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511103051 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 最大额定电流 | 500 mA | 连接器类型 - 电压输入 | Female |
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 30.2mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.079" (2.00mm) |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 排数 | 2 | 壳体材料 | PET |
| 触点数 | 30 | 接触件端接 | Crimp |
| 位数 | 30 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 基础产品编号 | 51110 |
| 应用细节 | Signal, Wire-to-Board | 适用产品/相关产品 | Milli-Grid Connector |
文档与媒体
相关型号
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm

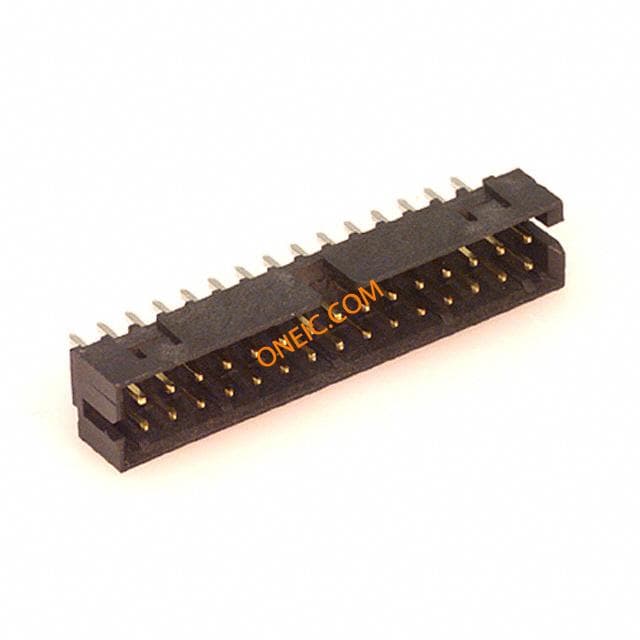

0878313020
molex
Conn Shrouded Header HDR 30 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 30POS 2MM VERT GOLD
0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

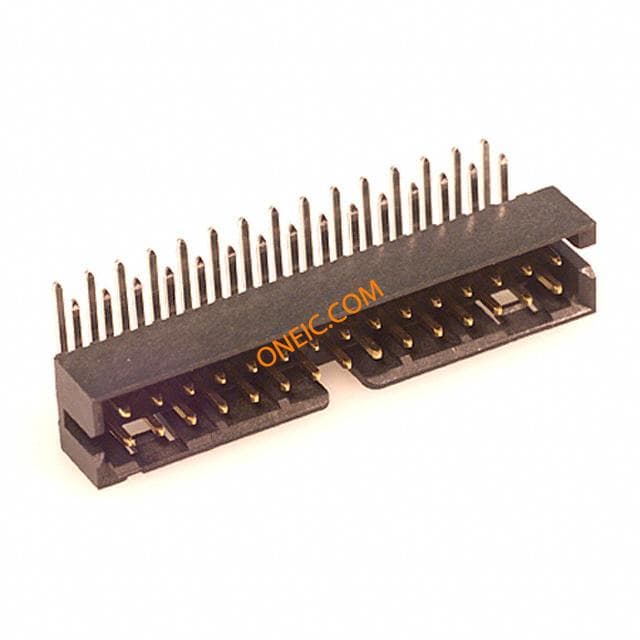

0878333020
molex
Conn Shrouded Header HDR 30 POS 2mm Solder RA Thru-Hole Tube CONN HEADER 30POS 2MM R/A GOLD
0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD
0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM

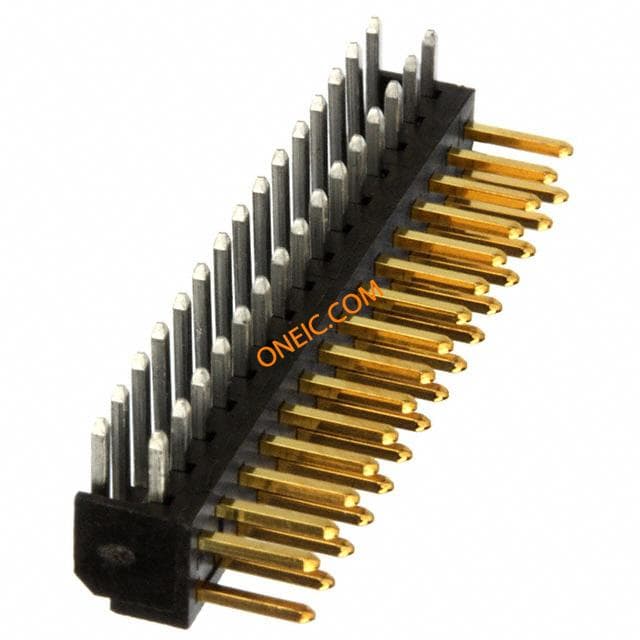

87760-3016
Molex Connector Corporation
CONN HEADER 30POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 30 CKT. R/A Selective Gold Conn Unshrouded Header HDR 30 POS 2mm Solder RA Thru-Hole Tray Header, right angle Pitch2 mm Poles 30 Milli-Grid, 87760-3016, Molex

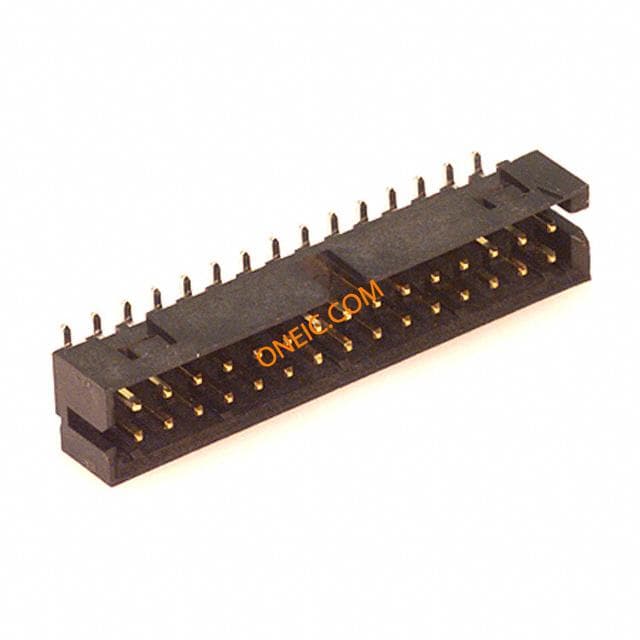

87832-3020
