点击放大查看

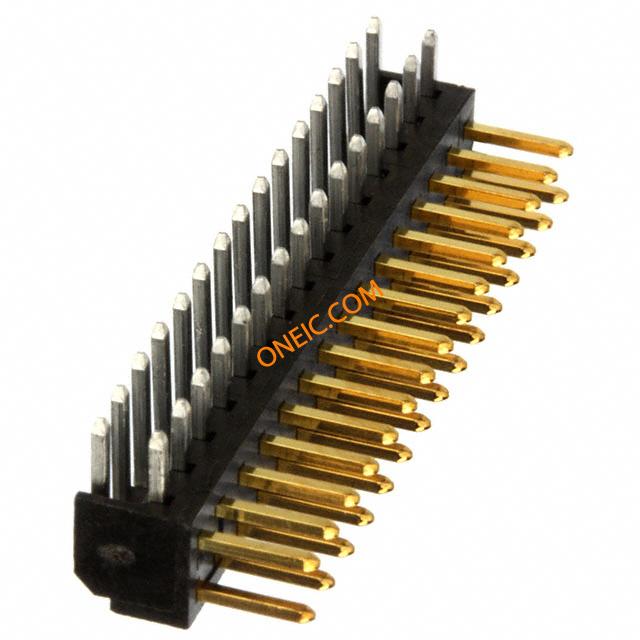

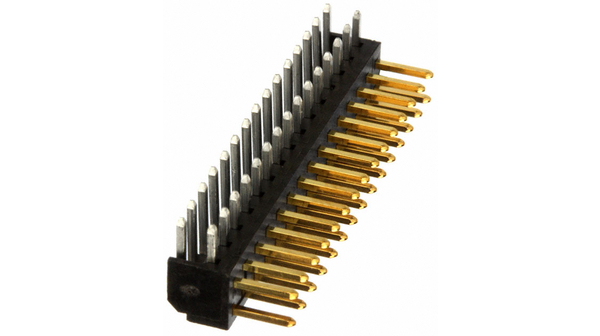

87760-3016
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 30POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 30 CKT. R/A Selective Gold Conn Unshrouded Header HDR 30 POS 2mm Solder RA Thru-Hole Tray Header, right angle Pitch2 mm Poles 30 Milli-Grid, 87760-3016, Molex |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877603016 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 125 V | 极数 | 30 |
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 30 |
| 位数 | 30 | 第一连接器极性 | Male |
| 接触长度 - 配合 | 0.157" (4.00mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Unshrouded | 系列 | 87760 |
| 产品子类型 | Headers | 连接方式 | Wire-Board |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55...+105 °C | ||
文档与媒体
