点击放大查看

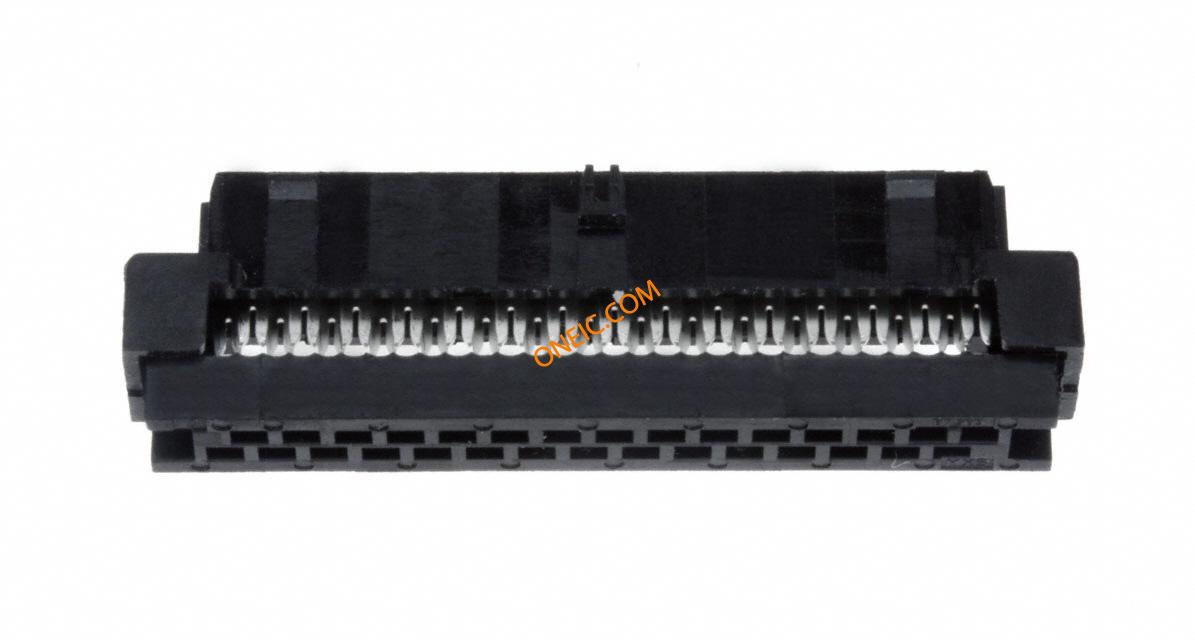

0875683093
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 30 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 30POS 2MM IDT GOLD |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 30 | 最大额定电流 | 1/Contact |
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 5.87 |
| 间距 | 0.079" (2.00mm) | 高度 | 11.4 |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 导线线规 | 28 AWG | 排间距 | 0.079" (2.00mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 36.65 | 电缆端接方式 | IDC |
| 触点数 | 30 | 位数 | 30 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through, Polarizing Key | ||
相关型号
0621002000
molex
Assembly Tools, Manual Handtool IDT - Manual - Hand Tool HANDTOOL MANUAL IDT
0878313020
molex
Conn Shrouded Header HDR 30 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 30POS 2MM VERT GOLD
0878333020
molex
Conn Shrouded Header HDR 30 POS 2mm Solder RA Thru-Hole Tube CONN HEADER 30POS 2MM R/A GOLD
0875691030
molex
Connector Accessories 30 POS Dual Row IDT Strain Relief Thermoplastic Black Bag 2MM MGRID IDT STRRLF D.R. NYL
0621002200
molex
MANUAL ARBOR PRESS W/ TOOL KIT MANUAL PRESS WITH IDT RIBBON CABLE TOOL KIT
76650-0195
molex
COMPONENT KITS, WIRE TO BOARD KIT 10,14,16,20,24,30,4,40,44,50,6POS 0.5-2A THROUGH HOLE, SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER 2MM PITCH 125V 24-30 WIRE SIZE KIT CONN MILLI-GRID DELUXE COMPONENT KITS, WIRE TO BOARD KIT 10,14,16,20,24,30,4,40,44,50,6POS 0.5-2A THROUGH HOLE, SURFACE MOUNT RECEPTACLE, RIGHT ANGLE HEADER 2MM PITCH 125V 24-30 ... Kit Description:SMT Vertical Header, Through-Hole Vertical and Right Angle Header and Receptacle and IDT ReceptacleKit Category:Wire to Board Solution:Off the BoardPackaging:Tackle Box: 11" by 7.25"Num. Pieces:160 MILLI-GRID DELUXE CONNECTOR KIT

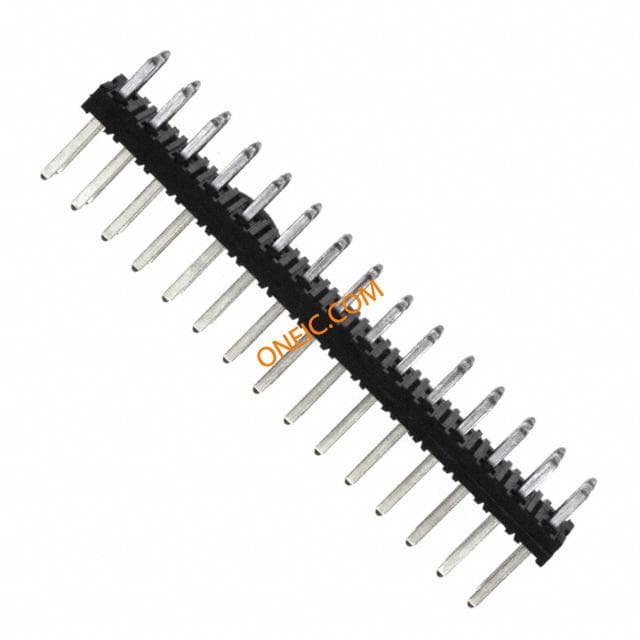

87758-3016
molex
Conn Unshrouded Header HDR 30 POS 2mm Solder ST Thru-Hole Tray CONN HEADER 30POS 2MM VERT GOLD Headers & Wire Housings VERT HEADER 30P Lead Free
87760-3016
Molex Connector Corporation
CONN HEADER 30POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 30 CKT. R/A Selective Gold Conn Unshrouded Header HDR 30 POS 2mm Solder RA Thru-Hole Tray Header, right angle Pitch2 mm Poles 30 Milli-Grid, 87760-3016, Molex

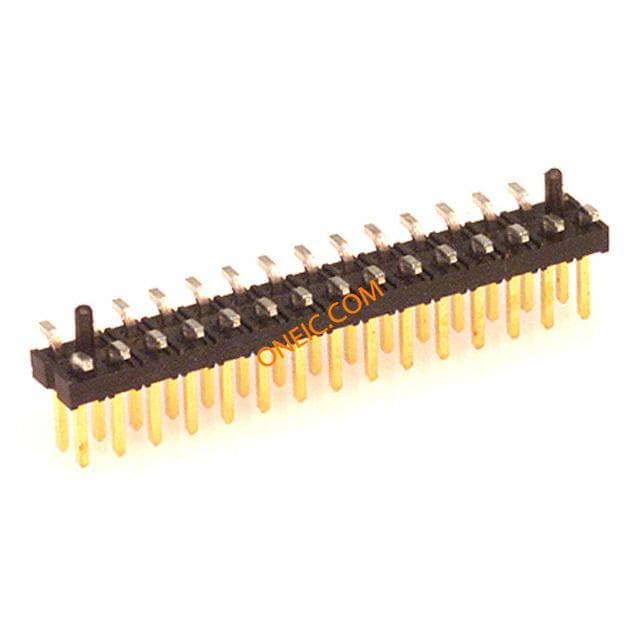

87759-3050
