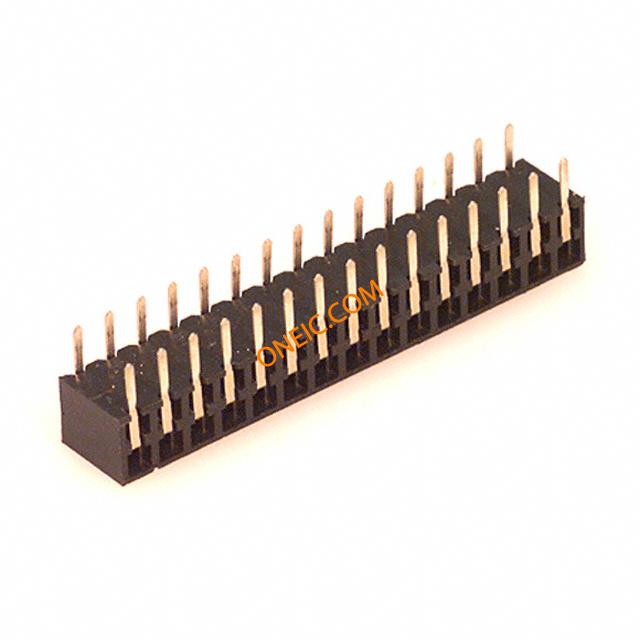

87264-3052
| 制造商 | Molex, LLC |
| 描述 | Conn Socket Strip RCP 30 POS 2mm Solder RA Thru-Hole Tube CONN RECEPT 2MM 30POS SIDE ENTRY Headers & Wire Housings 2MM RECEPT. 30 CKT Side Entry |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0872643052 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 1700 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 第一触头极性 | Socket (Female) |
| 触点数 | 30 | 位数 | 30 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 系列 | 87264 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
