点击放大查看

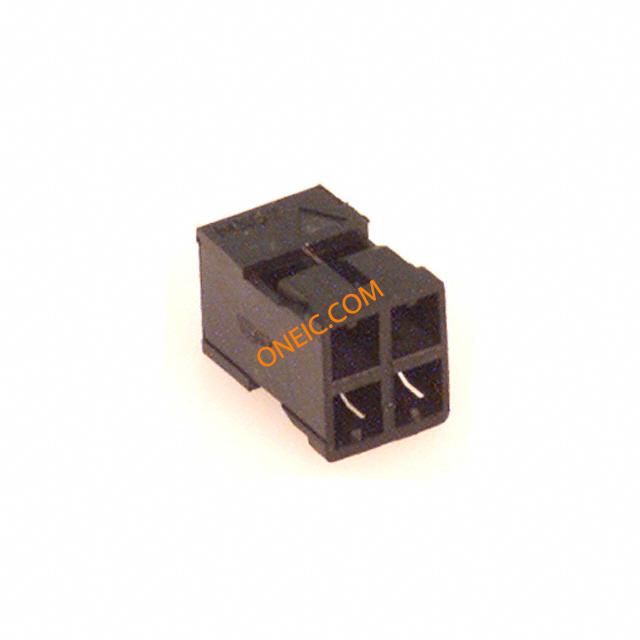

51110-0450
| 制造商 | Molex, LLC |
| 描述 | CONN HOUSING 2MM 4POS Housing 2.00mm Milli-Grid,4w Headers & Wire Housings 4CIR CRIMP HOUSING 2.00mm Pitch, Milli-Grid™ Crimp Housing, 4 Circuits, without Center Polarization Key, without Locking Ramp, Lead-Free CRIMP HOUSING, MILLIGRID, 4WAY Molex MILLI-GRID 系列 2 行 2mm 节距 4 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511100450 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Milli-Grid 51110 Series | 额定电压 | :125V |
| 接触电阻 | :25Mohm | 介电强度 | :500V |
| 最大额定电流 | 500 mA | 绝缘电阻 | :1000Mohm |
| 连接器类型 - 电压输入 | Female | ||
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 0.079" (2.00mm) | 宽度 | 4.8mm |
| 长度 | 4.2mm | 重量 | 0.004 |
| 包装方式 | Bulk | 排间距 | 0.079" (2.00mm) |
| 端接方式 | :Crimp | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | :- | 排数 | 2 |
| 封装形式 | :Black G.F. Polyester | 触头材料 | :- |
| 壳体材料 | PET | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Crimp Housing |
| 连接器性别 | Female | 系列 | 51110 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 应用细节 | Signal, Wire-to-Board | 适用产品/相关产品 | Milli-Grid Connector |
文档与媒体
相关型号
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm
0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

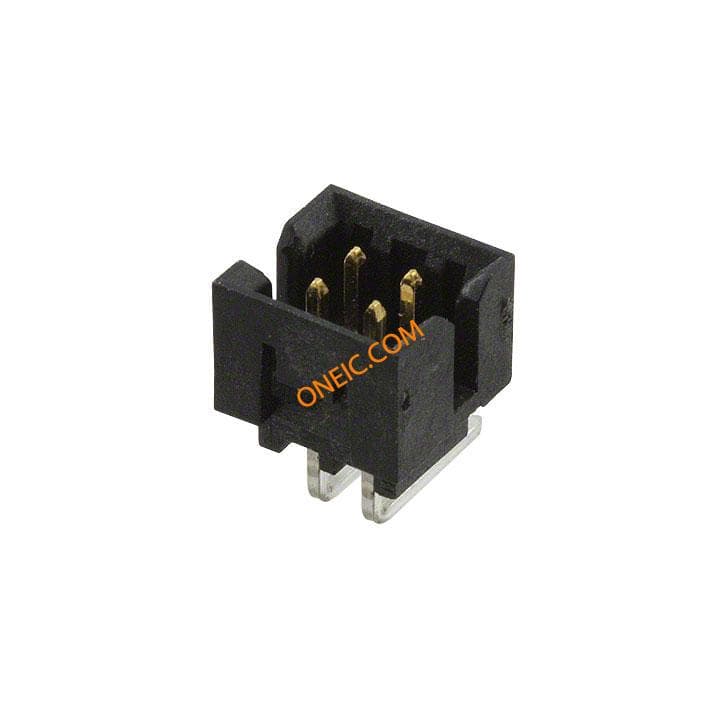

0878330431
molex
Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tube CONN HEADER 4POS R/A 2MM T/H
0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD
50394-8100
Molex
Headers & Wire Housings TERMINAL BULK Crimp terminal,MilliGrid,sAu,female Contact SKT Crimp ST Cable Mount Bag CRIMP SOCKET, PK1000 CRIMP SOCKET, 24AWG, PK100 Milli-Grid, Crimp Terminal Crimp terminal Female 30...26 AWG, 50394-8100, Molex Molex MILLI-GRID 系列 母 压接接线端子, 压接, 镀金触点

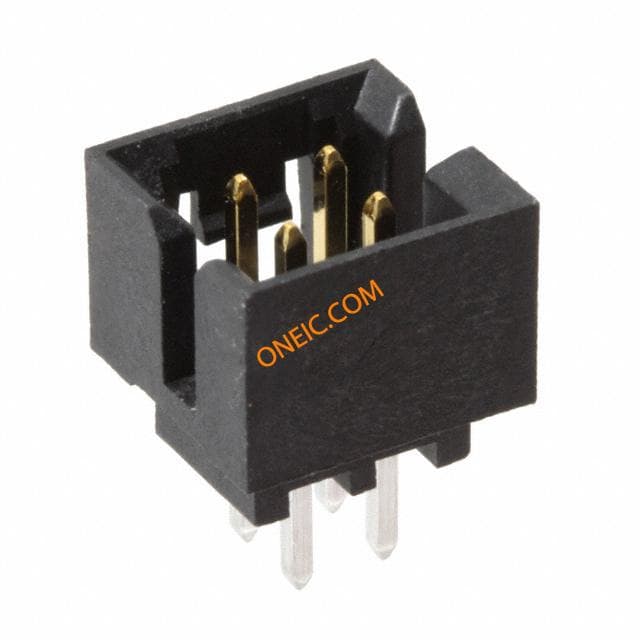

0878310441
Molex
Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 4POS VERT 2MM T/H
0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM

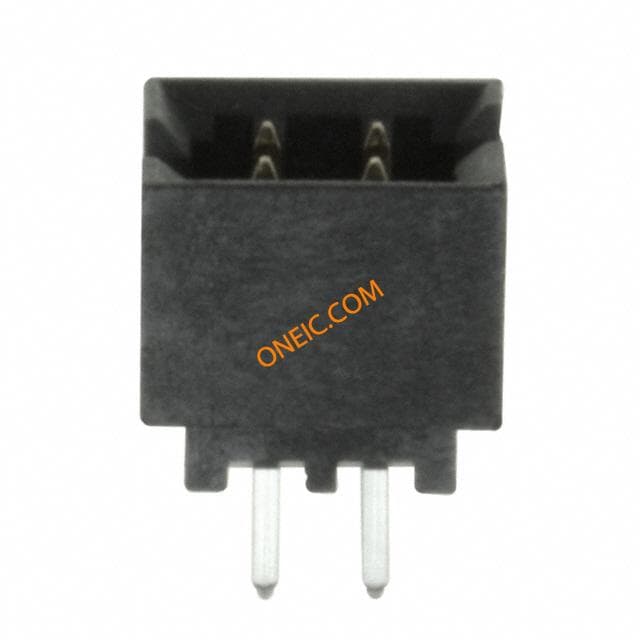

87831-0420
Molex Connector Corporation
CONN HEADER 4POS 2MM VERT GOLD Molex 87831 Series 2mm Pitch 4 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings VERT SHRD HDR 4P Lead Free Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Tube HEADER, SQUARE PIN, M/GRID, 4WAY Molex MILLI-GRID 系列 2mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
87760-0416
Molex Connector Corporation
CONN HEADER 4POS 2MM R/A 15GOLD Headers & Wire Housings R/A HEADER 4P Lead Free Conn Unshrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tray
87833-0420
Molex Connector Corporation
CONN HEADER 4POS 2MM RT ANG GOLD Headers & Wire Housings 2MM HDR. 4 CKT. R/A Selective Gold Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tube

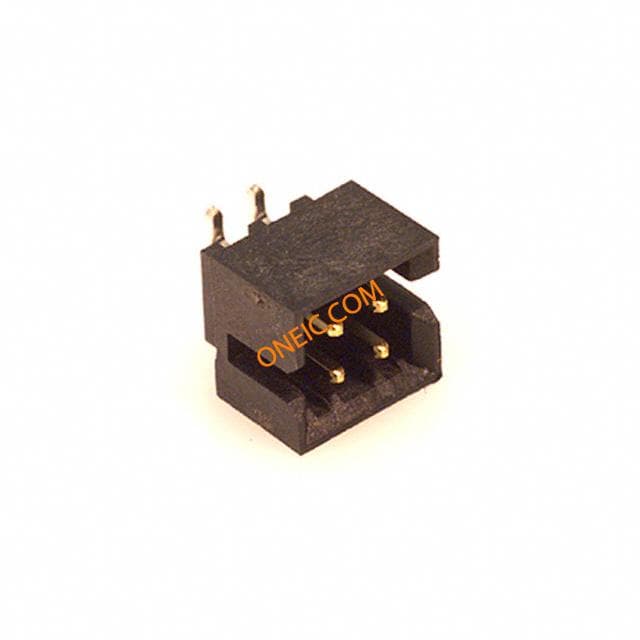

87832-0420
