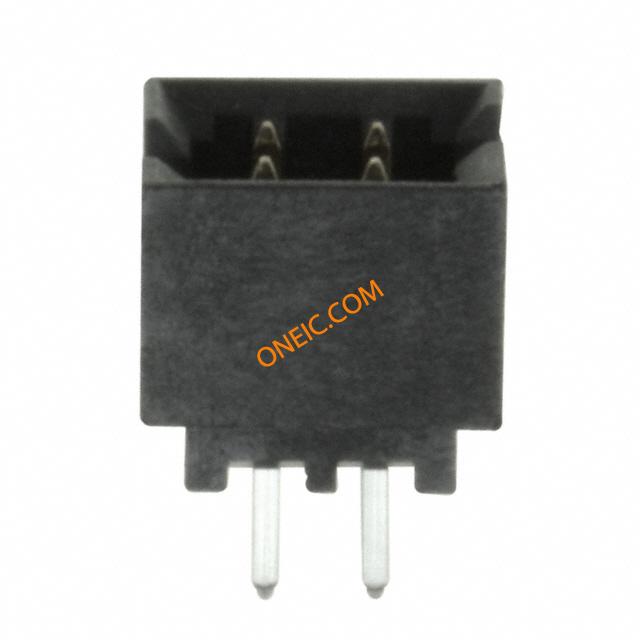

点击放大查看
87831-0420
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 4POS 2MM VERT GOLD Molex 87831 Series 2mm Pitch 4 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings VERT SHRD HDR 4P Lead Free Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Tube HEADER, SQUARE PIN, M/GRID, 4WAY Molex MILLI-GRID 系列 2mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0878310420 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2400 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - Milli-Grid 87831 Series | 额定电压 | 125 V |
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 重量 | 0.000233 | 包装方式 | Tube |
| 排间距 | 0.079" (2.00mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 连接器颜色 | :Black |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | :Header |
| 系列 | 87831 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
