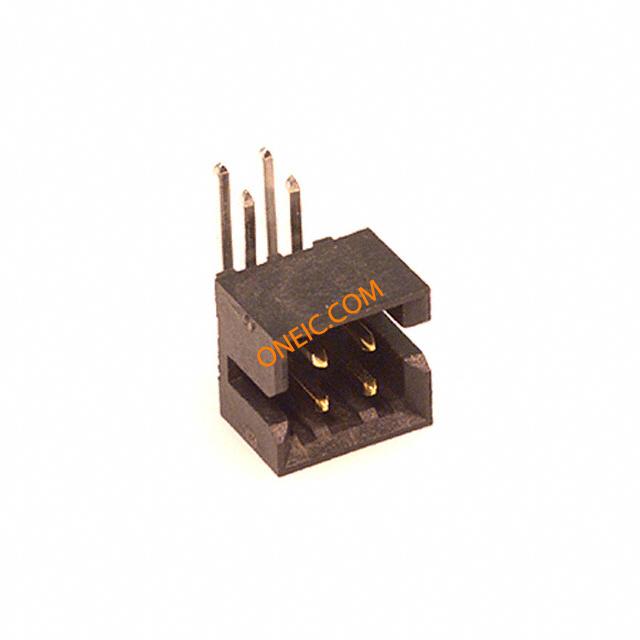

87833-0420
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 4POS 2MM RT ANG GOLD Headers & Wire Housings 2MM HDR. 4 CKT. R/A Selective Gold Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tube |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0878330420 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 2400 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 4 |
| 位数 | 4 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded | 系列 | 87833 |
| 产品子类型 | Headers | 加载位置数 | All |
