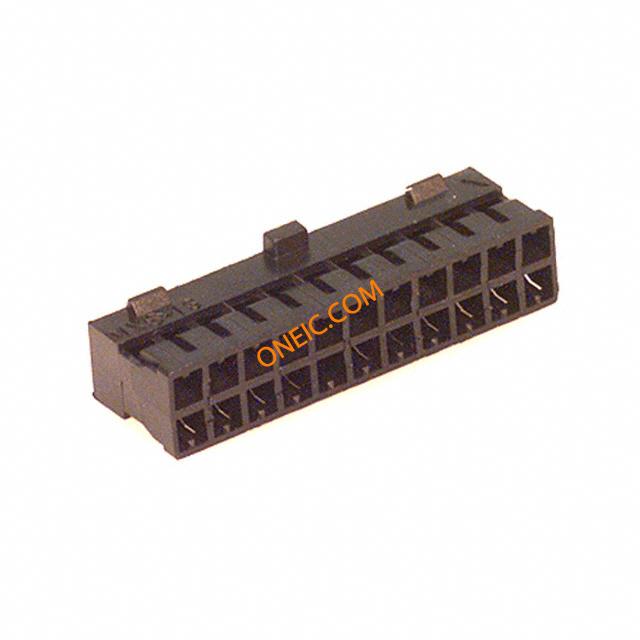

51110-2251
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 22 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 22POS POLARIZED Housing 2.00mm Milli-Grid,22w Headers & Wire Housings 22CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 22 路 直 母 电缆安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0511102251 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 500 mA | 连接器类型 - 电压输入 | Female |
机械参数
| 颜色 | Black | 深度 | 7mm |
| 间距 | 2 mm | 宽度 | 4.8mm |
| 长度 | 22.2mm | 包装方式 | Bulk |
| 导线线规 | 24-30 AWG | 方向 | 直 |
| 排间距 | 0.079" (2.00mm) | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 壳体材料 | PET | 触点数 | 22 |
| 接触件端接 | Crimp | 位数 | 22 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 51110 |
| 产品特性 | Polarizing Key | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 基础产品编号 | 51110 |
| 应用细节 | Signal, Wire-to-Board | 适用产品/相关产品 | Milli-Grid Connector |
文档与媒体
相关型号
0503948100
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG CRIMP Contact; female; 24÷30AWG; Milli-Grid; gold plated; 2mm

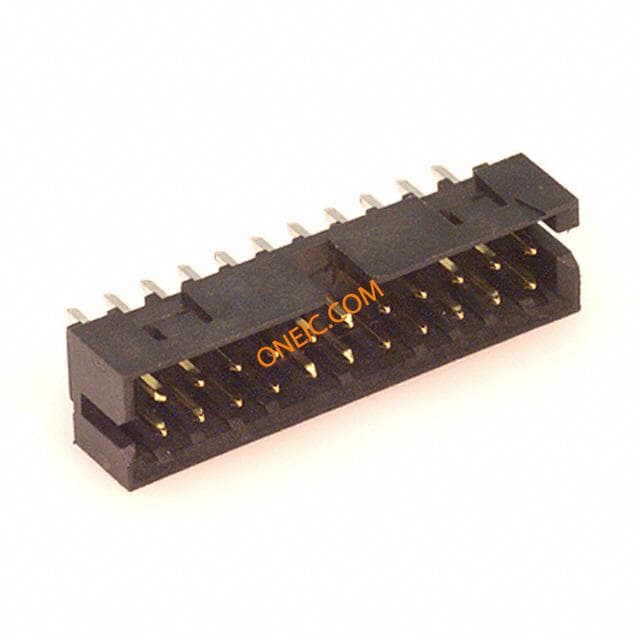

0878312220
molex
Conn Shrouded Header HDR 22 POS 2mm Solder ST Thru-Hole Tube CONN HEADER 22POS 2MM VERT GOLD
0503948200
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-30AWG 30GOLD

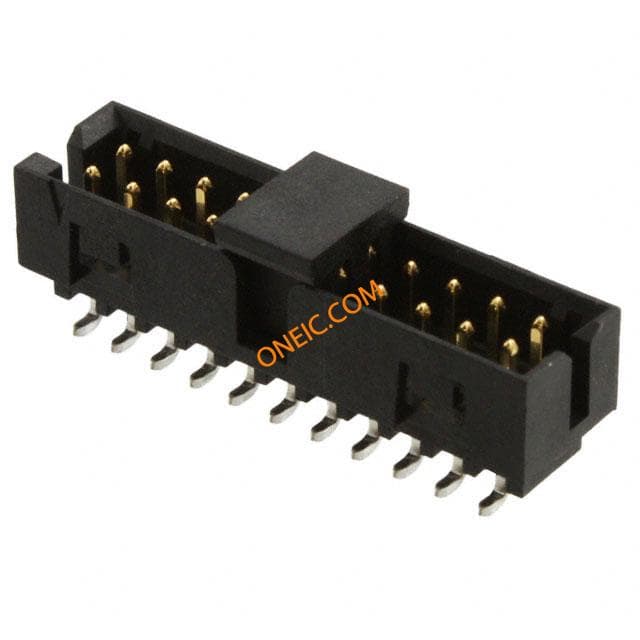

0878326022
molex
Conn Shrouded Header HDR 22 POS 2mm Solder ST SMD Embossed T/R HEADER SHRD SMT/CAP 22CKT
0503948052
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG 30GOLD
0503948051
molex
Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 24-30AWG GOLD

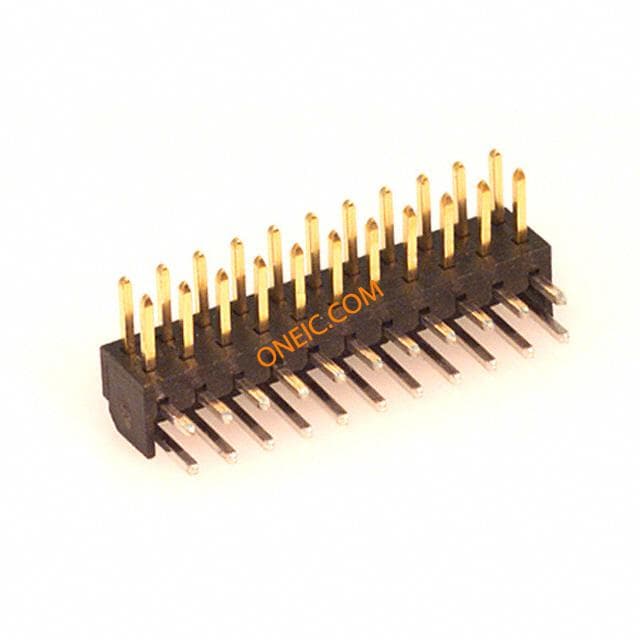

87760-2216
molex
Conn Unshrouded Header HDR 22 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 22POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 22 CKT. R/A Selective Gold
0503948400
Molex
Contact SKT Crimp ST Cable Mount Bag 2MM MGRID CRIMP LOOSE TERM
87833-2220
Molex Connector Corporation
CONN HEADER 22POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 22 CKT. R/A Selective Gold Conn Shrouded Header HDR 22 POS 2mm Solder RA Thru-Hole Tube

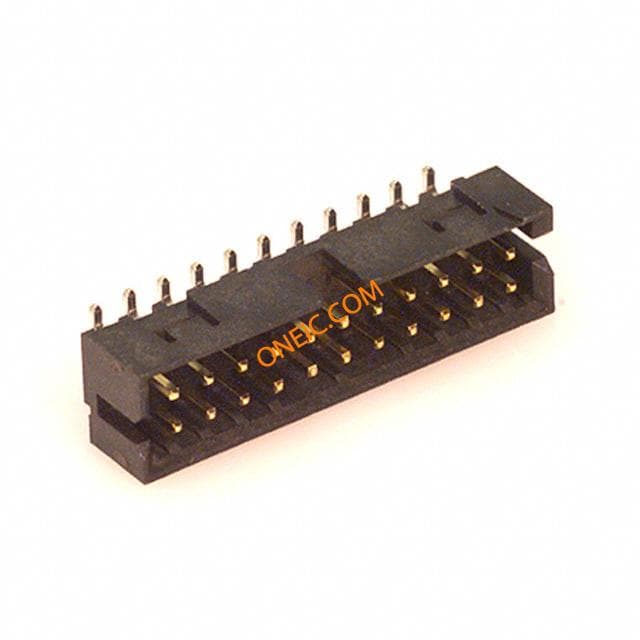

87832-2220
Molex Connector Corporation
CONN HEADER 22POS 2MM VERT SMD Headers & Wire Housings 2MM HDR. 22 CKT. Vert. SMT Conn Shrouded Header HDR 22 POS 2mm Solder ST SMD Tube
