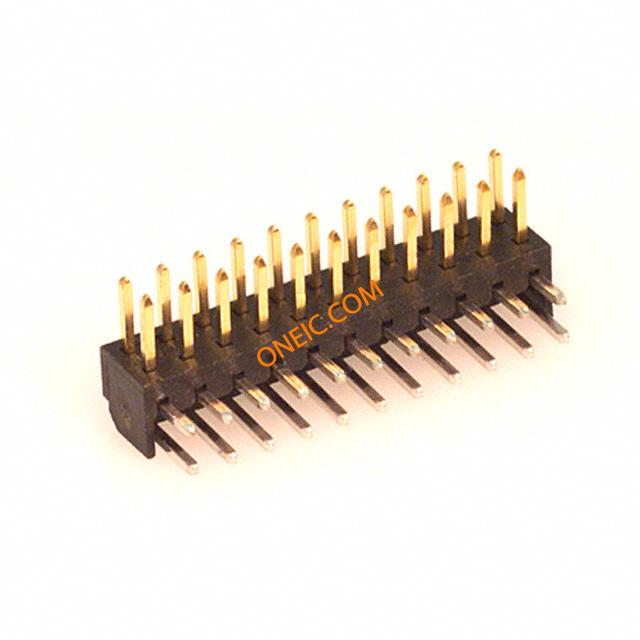

87760-2216
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 22 POS 2mm Solder RA Thru-Hole Tray CONN HEADER 22POS 2MM R/A GOLD Headers & Wire Housings 2MM HDR. 22 CKT. R/A Selective Gold |
| 分类 |
商业参数
| 商标名 | Milli-Grid | 零件号别名 | 0877602216 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 包装方式 | Tray | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 22 |
| 位数 | 22 | 接触长度 - 配合 | 0.157" (4.00mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | 87760 | 产品子类型 | Headers |
| 加载位置数 | All | ||
文档与媒体
相关型号
0791081060
molex
Conn FFC/FPC Connector RCP 22 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 22CKT
0791098460
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 22CKT
0791098610
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 22CKT
0791091210
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD SMD 22CKT
0791098410
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL SMD GOLD 22CKT
0791081010
molex
Conn FFC/FPC Connector SKT 22 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 22CKT
0791077260
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 22CKT
0791077060
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 22POS
51110-2251
molex
Conn Housing RCP 22 POS 2mm Crimp ST Cable Mount Bag CONN HOUSING 2MM 22POS POLARIZED Housing 2.00mm Milli-Grid,22w Headers & Wire Housings 22CIR CRIMP HOUSING Molex MILLI-GRID 系列 2 行 2mm 节距 22 路 直 母 电缆安装 压接连接器外壳
79107-7010
molex
Conn Socket Strip RCP 22 POS 2mm Solder ST Thru-Hole Tube CONN RECEPT 2MM 22POS VERT

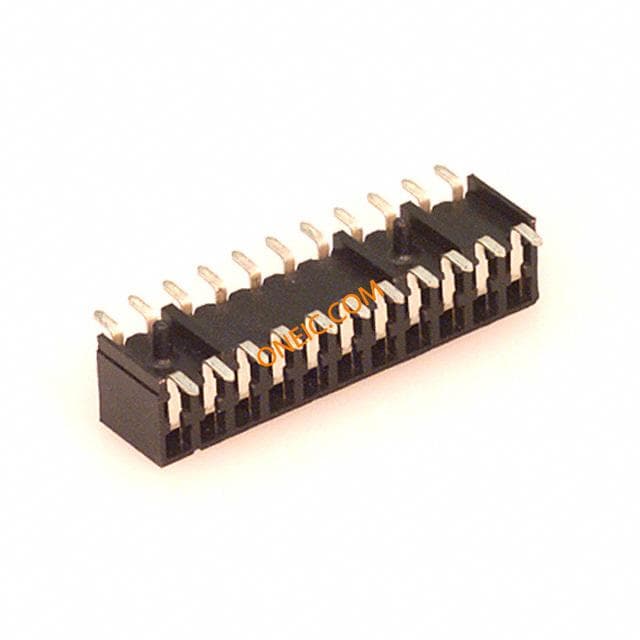

87368-2224
molex
Conn Socket Strip RCP 22 POS 2mm Solder RA SMD Tube CONN RECEPT 22POS 2MM SMD GOLD Headers & Wire Housings 2MM RECEPT. 22 CKT Side Entry
0791077210
Molex
Conn Socket Strip RCP 22 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 22CKT
0791091060
Molex
Conn Socket Strip RCP 22 POS 2mm Solder ST SMD Tube CONN RCPT 2MM DL GOLD 22CKT SMD
0791098660
Molex
Conn Socket Strip RCP 22 POS 2mm Solder ST SMD Embossed T/R CONN RCPT 2MM DL GOLD SMD 22CKT

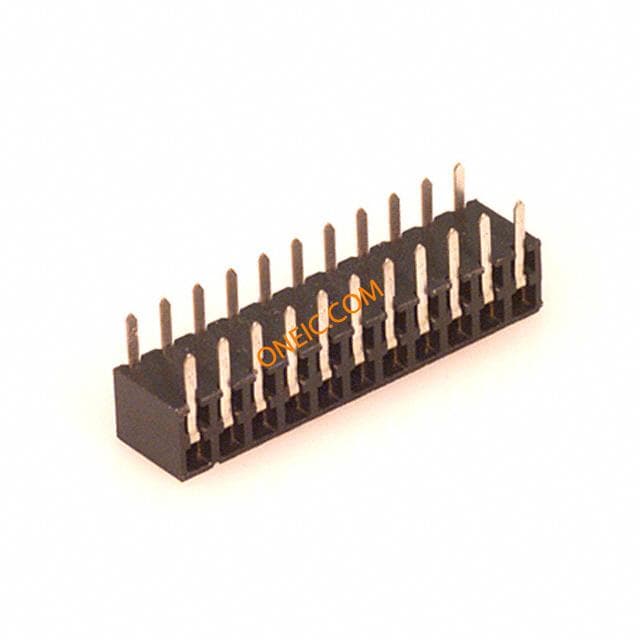

87264-2252
