点击放大查看

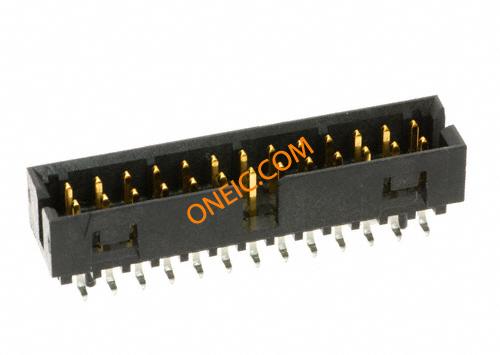

0878322620
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 26 POS 2mm Solder ST SMD Tube CONN HEADER 26POS STR 2MM SMD AU |
| 分类 |
商业参数
| 标准包装数量 | 1,800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 125V |
| 最小供电电压 | 125VAC | ||
机械参数
| 颜色 | Black | 深度 | 6.3 mm |
| 间距 | 0.079" (2.00mm) | 高度 | 7.6 mm |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | Surface Mount | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon 4/6 |
| 总长度 | 28.65 mm | 触点数 | 26 |
| 位数 | 26 | 接触长度 - 配合 | 0.141" (3.60mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Board Guide | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | ||
相关型号
0791077212
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL 26CKT
0791077012
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 26POS
0791077262
molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 26CKT
0791081012
molex
Conn FFC/FPC Connector SKT 26 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 26CKT
0791081062
Molex
Conn FFC/FPC Connector SKT 26 POS 2mm Solder RA Thru-Hole Tube CONN RCPT 2MM GOLD DL 26CKT

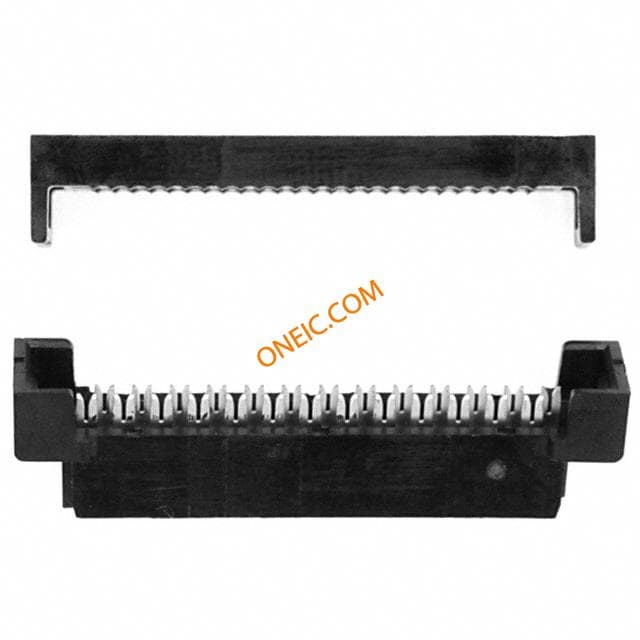

0875682693
Molex
Conn IDC Connector RCP 26 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 26POS 2MM IDT GOLD

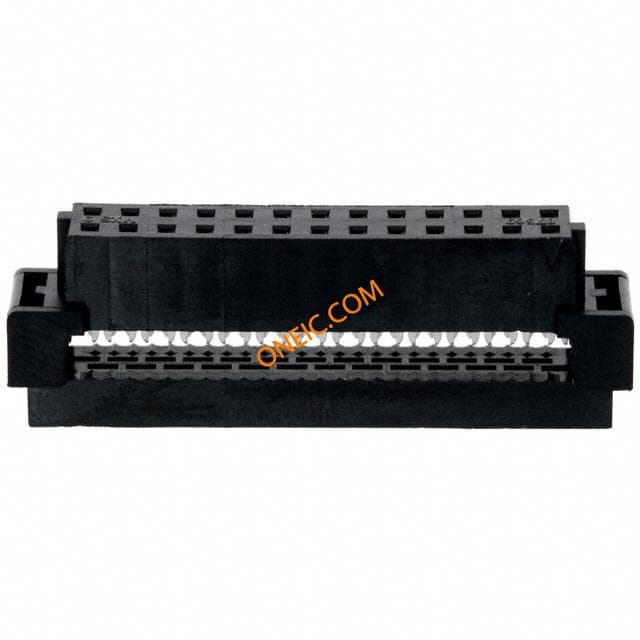

87568-2663
molex
Conn IDC Connector RCP 26 POS 2mm IDT RA Cable Mount Tray CONN RECEPT 26POS 2MM IDT GOLD Headers & Wire Housings 2MM 2R 26P RCPT CBL-TO-BD AU W/O KEY
0791077062
Molex
Conn Socket Strip RCP 26 POS 2mm Solder ST Thru-Hole Tube CONN RCPT VERT DUAL GOLD 26POS
51110-2651
Molex Connector Corporation
CONN HOUSING 2MM 26POS POLARIZED Housing 2.00mm Milli-Grid,26w Headers & Wire Housings 26CIR CRIMP HOUSING Conn Housing RCP 26 POS 2mm Crimp ST Cable Mount Bag CRIMP HOUSING, MILLI-GRID, 2MM, 26WAY Crimp housing Pitch2 mm Poles 26 Milli-Grid, 51110-2651, Molex Molex MILLI-GRID 系列 2 行 2mm 节距 26 路 直 母 电缆安装 压接连接器外壳

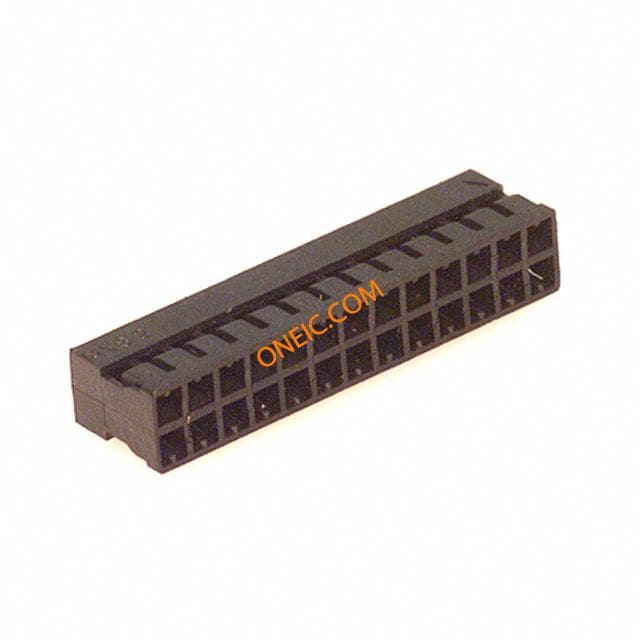

51110-2650
