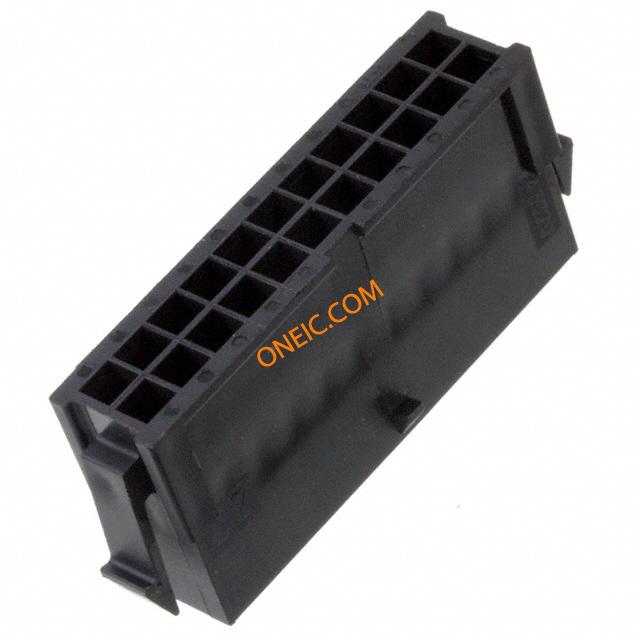

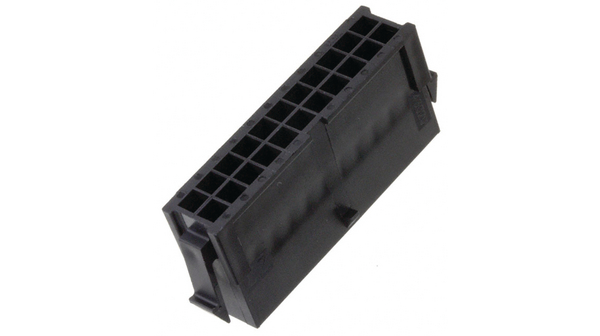

43020-2200
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 22POS 3MM DUAL ROW 2 x 11 way panel mount plug Micro-Fit Headers & Wire Housings 3MM MICRO-FIT 22 CKT Dual Row Conn Housing PL 22 POS 3mm Crimp ST Bag Male contact housing dual row Pitch3 mm Poles 2 x 11 Micro-Fit, 43020-2200, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 22 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430202200 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 350 V ac/dc | 极数 | 2 x 11 |
| 最大额定电流 | 5 A | 连接器类型 - 电压输入 | Plug |
机械参数
| 颜色 | Black | 深度 | 24.77mm |
| 间距 | 0.118" (3.00mm) | 宽度 | 6.85mm |
| 长度 | 33.85mm | 包装方式 | Bulk |
| 方向 | 直 | 排间距 | 0.118" (3.00mm) |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 引脚间距 | 0.118" (3.00mm) | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 2 |
| 壳体材料 | Polyester | 连接器颜色 | Black |
| 触点数 | 22 | 接触件端接 | Crimp |
| 位数 | 22 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 系列 | 43020 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Wire Housings | 连接方式 | Wire-Wire |
| 基础产品编号 | 43020 | 输出配置 | Panel Mount, Snap-In |
| 应用细节 | Power, Wire-to-Wire | 适用产品/相关产品 | 压接接线端子 |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
相关型号
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!
0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
43031-0010
molex
Contact M Crimp ST Cable Mount Bag Male crimp contact,26-30 awg Headers & Wire Housings MALE 26-30 AWG BULK tin Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 26AWG TO 30AWG, CRIMP CONTACT, PIN, 30-26AWG, CRIMP Micro-Fit 3.0 Crimp Terminal, Pin, w/Tin/Brass alloy plate contact, 26-30 AWG Crimp pin Male 30...26 AWG, 43031-0010, Molex Molex MICRO-FIT 3.0 系列 公 压接接线端子, 压接, 镀锡触点
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN
0430252200
Molex

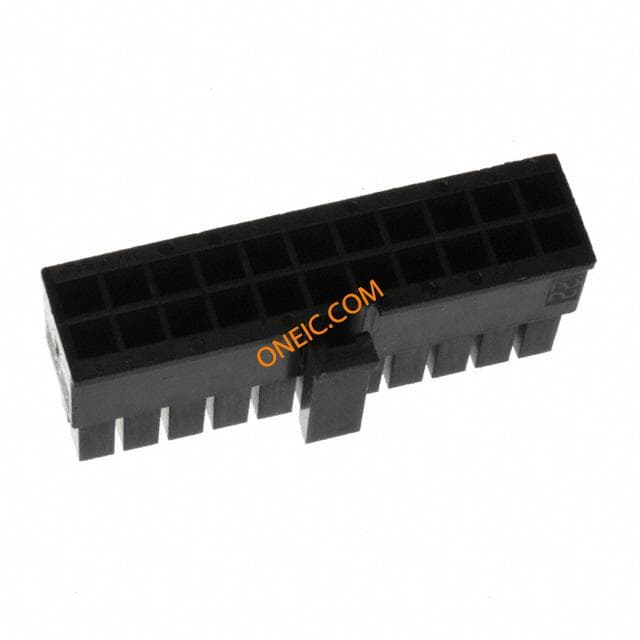

Conn Housing RCP 22 POS 3mm Crimp ST Bag CONN RECEPT 22POS 3MM DUAL ROW
