点击放大查看

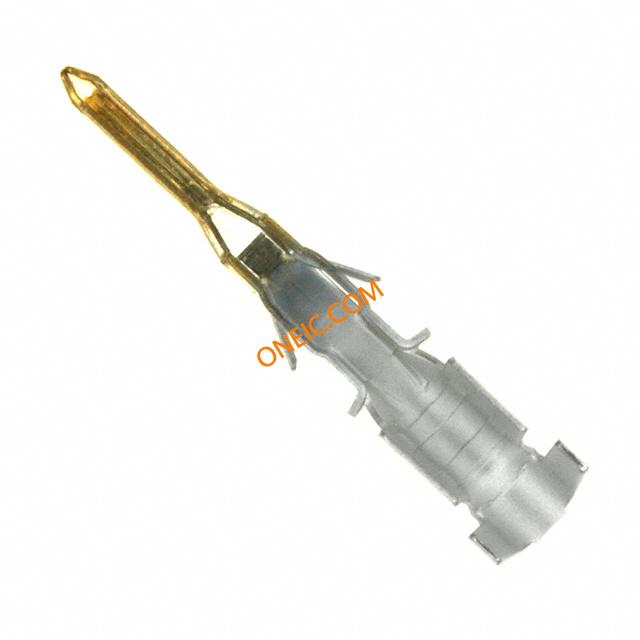

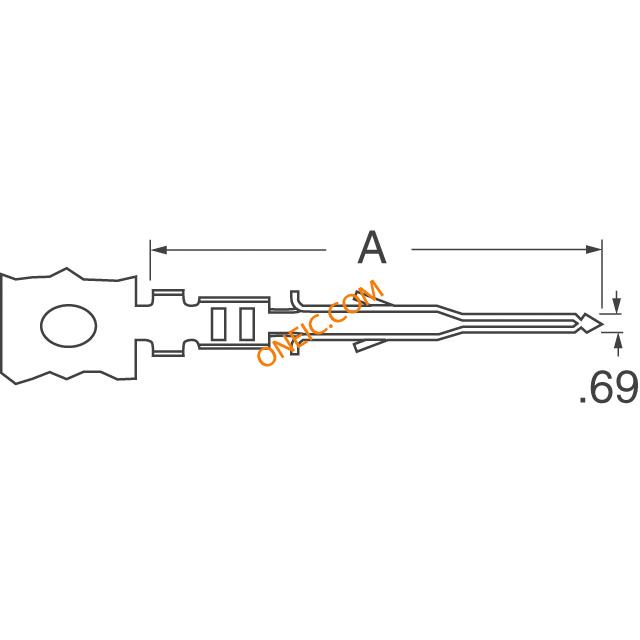

0430310002
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped |
| 分类 |
商业参数
| 其他名称 | WM1127CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 2.54 mm | 间距 | Not Required mm |
| 重量 | 1 mg | 包装方式 | Reel |
| 导线线规 | 20-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 封装形式 | tape | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 12.4 mm |
| 包装数量 | 1 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - mm² | 0.205...0.519mm2 |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 1 | 类型 | Power |
| 连接器性别 | PIN | 适配器系列 | Micro-Fit 3.0 |
| 单元数量 | 700 | 工具类型/特性 | MX-63812-0800, MX-63819-0000, MX-63901-8900 |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号

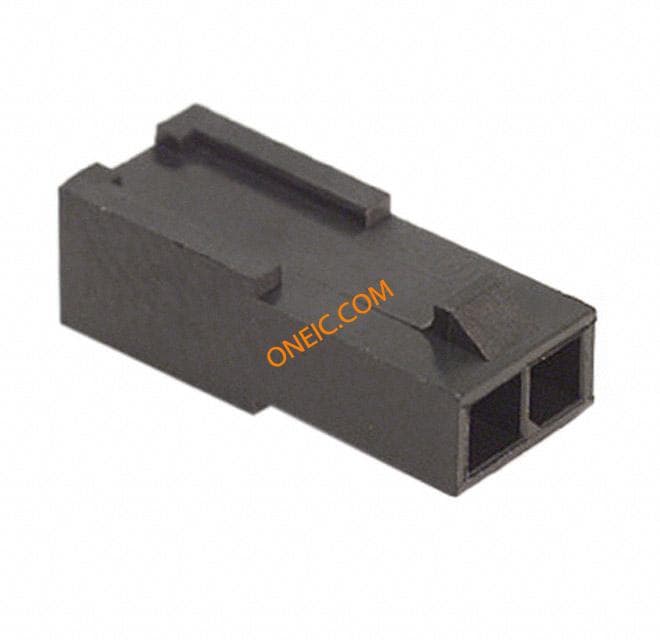

0436400201
molex
Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM SINGLE ROW Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; 5A

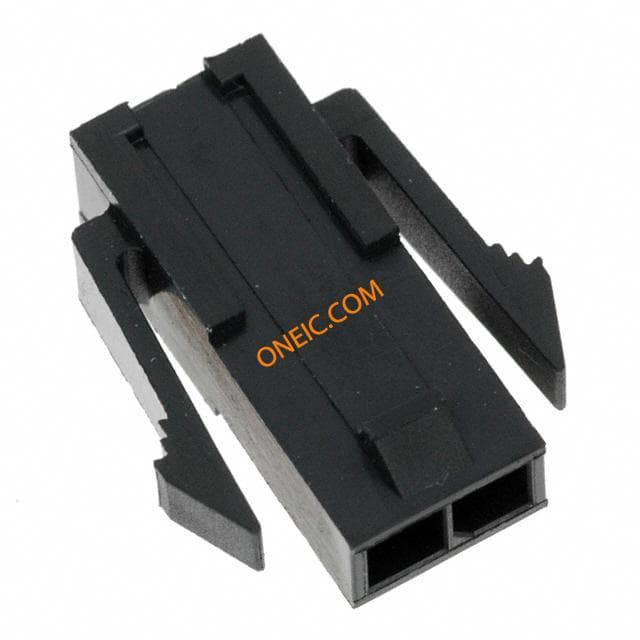

0436400200
molex
Conn Housing PL 2 POS 3mm Crimp ST Cable Mount Bag Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM SGL PANEL MNT Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; 5A
0430200400
Molex, LLC
Buy now, ships today. 0430200400 - 4 Position Rectangular Housing Connector Plug Black 0.118" (3.00mm) from Molex. View datasheets, pricing and availability from DigiKey now!
0011030043
molex
Connector Accessories Extraction Tool Extraction Tool Handtool Type TOOL HAND EXTRACT MICROFIT 3.0
0638120800
molex
INSERTION TOOL Insertion Tool For Micro-Fit 3.0 Crimp Terminal INSERTION TOOL 20-30 AWG CRIMP
0639018800
molex
FINE ADJUST APPLICATOR FineAdjust Applicator For Micro-Fit 3.0 Crimp Terminals
0639018900
molex
FINE ADJUST APPLICATOR FineAdjust Applicator For Micro-Fit 3.0 Crimp Terminals Tool: for crimping; terminals
0639118900
molex
T2 TERMINATOR ASSEMBLY T2 TERMINATOR MICRO-FIT 3.0 CRIMP TERMINALS
0639118800
molex
T2 TERMINATOR ASSEMBLY T2 Terminator Micro-Fit 3.0 Crimp Terminals
43515-0001
Molex
Headers & Wire Housings Obsolete

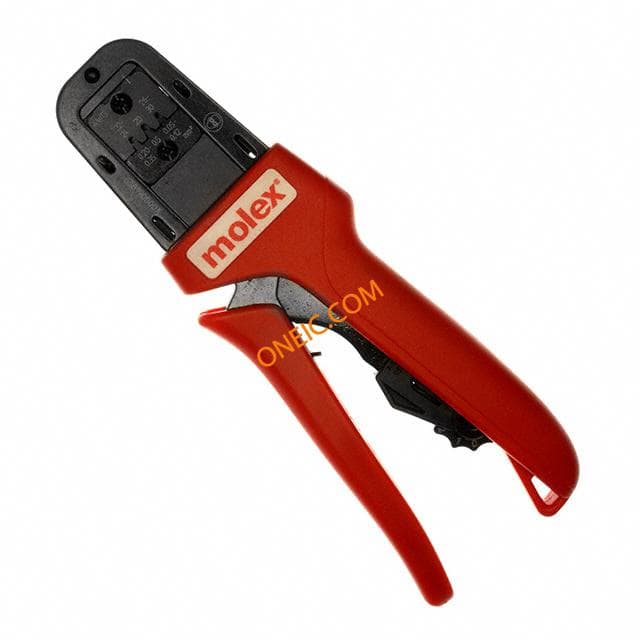

0638190000
Molex
Hand Crimp Tool TOOL CRIMP 20-30AWG MICROFIT 3.0 Connector Accessories Hand Crimp Tool Tool: for crimping; terminals; 0,05÷0,12mm2,0,2÷0,5mm2
0639004500
Molex
Fine Adjust Applicator For Micro-Fit 3.0 Crimp Terminals, Male And Female, 20-24 FINE ADJUST APPLICATOR
0640160201
Molex
Service Grade Hand Crimp Tool TOOL CRIMP CGRD KK MICROFIT SPOX
0639104500
Molex
T2 Terminator For Insulation OD 1.30-1.85mm - 20-24 Awg T2 TERMINATOR ASSEMBLY

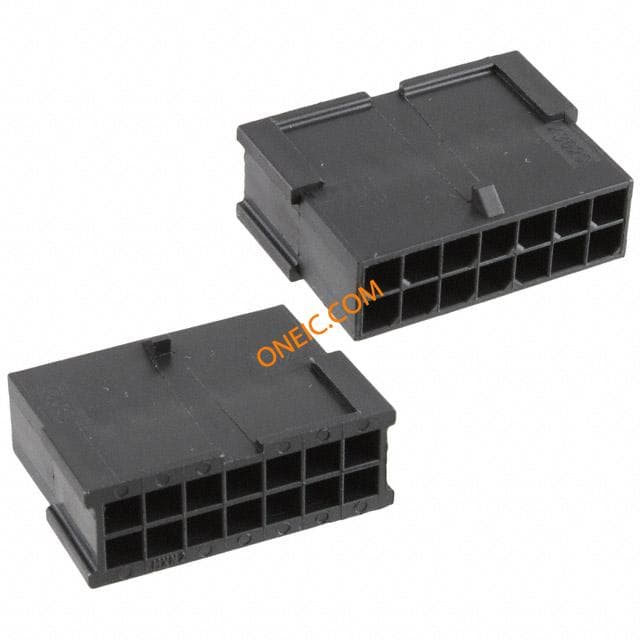

43020-1401
Molex Connector Corporation
CONN PLUG 14POS 3MM VERT DUAL 3.0mm,MicroFit,plug,2row,freehang,14w Headers & Wire Housings 14CKT PLUG HSG FREE HANGING DR 3.00mm Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, without Panel Mount Ears, 14 Circuits PLUG W/EARS; FREE HANGING; 14 CIRCUITS Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 14 路 直 公 压接连接器外壳

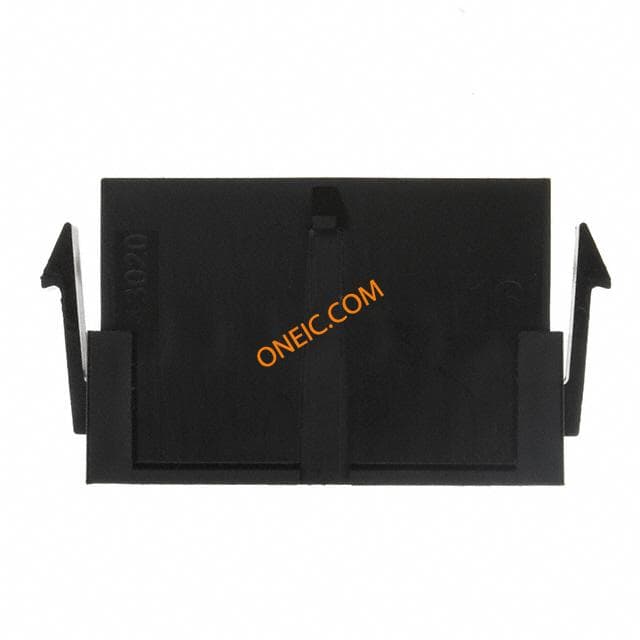

43020-1600
Molex Connector Corporation
CONN PLUG 16POS 3MM DUAL ROW 16way microfit 3mm 2row panel mount plug Headers & Wire Housings PLUG DUAL ROW 16P Conn Housing PL 16 POS 3mm ST Bag Conn Housing PL 16 POS 3mm Crimp ST Bag PLUG, PANEL MOUNT, 16WAY MICROFIT3.0PLUGDRPNLMNT16CKT Male contact housing dual row Pitch3 mm Poles 2 x 8 Micro-Fit, 43020-1600, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 16 路 直 公 面板安装 压接连接器外壳

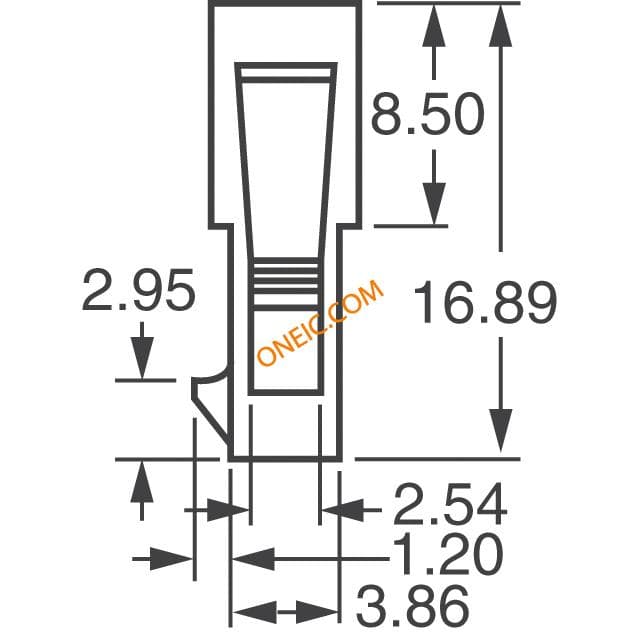

43640-1000
Molex Connector Corporation
CONN PLUG 10POS 3MM SGL PANEL MT 10 way 1 row panel mount plug,3mm pitch Headers & Wire Housings 3MM MICRO-FIT Plug House 10 CKT Conn Housing PL 10 POS 3mm Crimp ST Bag Male contact housing single row Pitch3 mm Poles 1 x 10 Micro-Fit, 43640-1000, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 10 路 直 公 压接连接器外壳
43640-1100
Molex Connector Corporation
CONN PLUG 11POS 3MM SGL PANEL MT Headers & Wire Housings 3MM MICRO-FIT Plug House 11 CKT Conn Housing PL 11 POS 3mm Crimp ST Bag

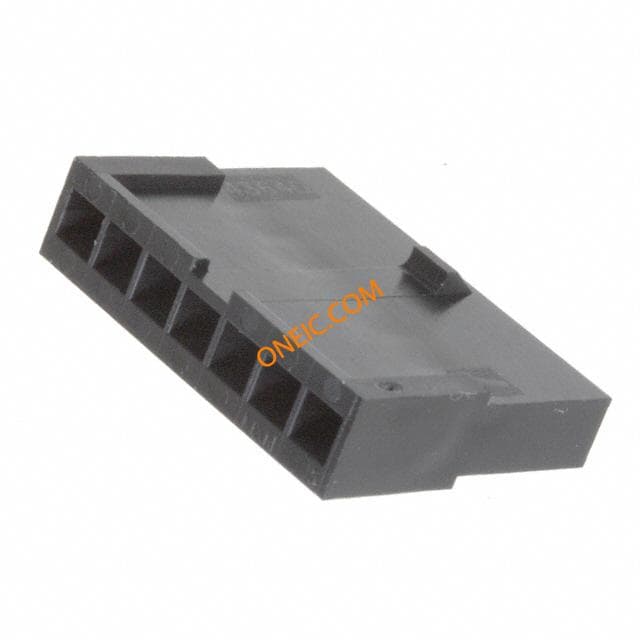

43640-0701
