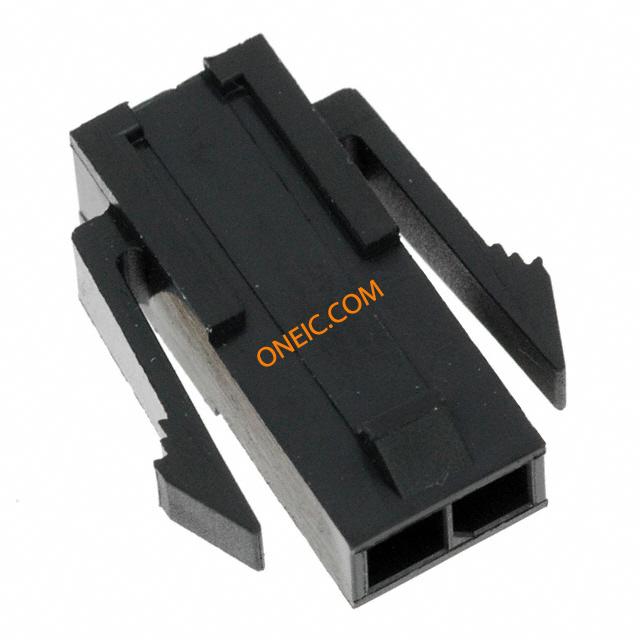

0436400200

制造商	Molex, LLC
描述	Conn Housing PL 2 POS 3mm Crimp ST Cable Mount Bag Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM SGL PANEL MNT Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; 5A
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	5A	最小输入电压	250VDC\|250VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Black	深度	24.53
间距	3 mm	重量	0.57 g
包装方式	Bag	方向	straight
触点形式	Male Pin	触头类型	Male Pin
柱间距	3mm	外壳颜色	Black
安装类型	Straight	连接器类型	Plug
紧固类型	Locking Ramp	安装样式	for panel mounting, for cable, snap fastener
排数	1	锁定特性	lock
壳体材料	Polyester	包装数量	700
连接器 - 电缆	plug	触点数	2
接触件端接	Crimp	位数	2
第一连接器安装特征	1x2

产品信息

SPG	700	备注	Contacts Not Provided
类型	Housing	连接器性别	PL
系列	Micro-Fit 3.0™ 43640	适配器系列	Micro-Fit 3.0
单元数量	1	输出配置	Panel Mount, Snap-In

文档与媒体

Micro-Fit Test Summary 12/Aug/2010

Micro-Fit Resin 20/Aug/2010

0436400200_CRIMP_HOUSINGS.pdf

43640-0200

相关型号

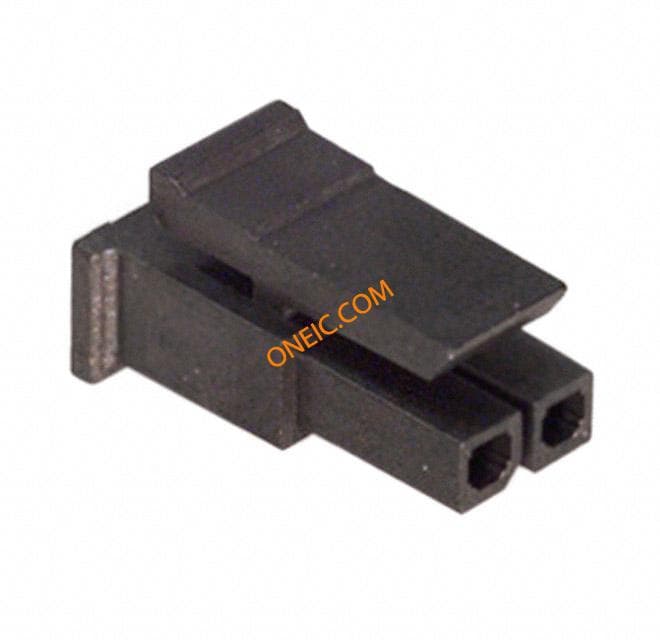

0436450200
