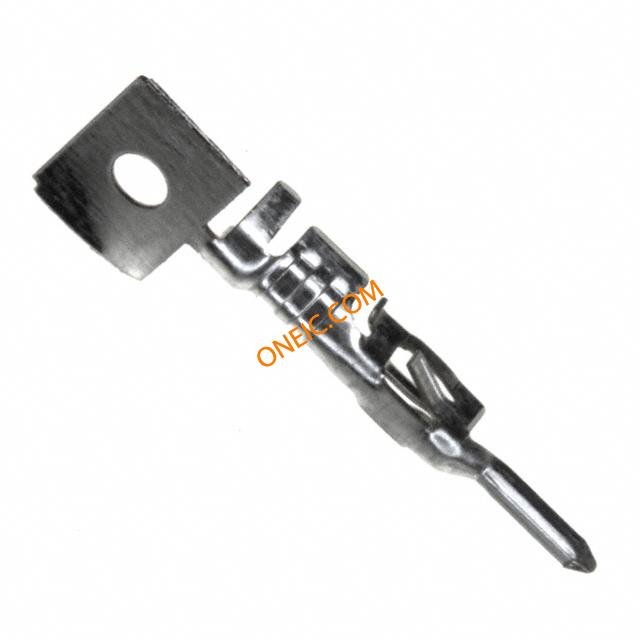

点击放大查看
0430310001
| 制造商 | Molex, LLC |
| 描述 | . 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now! |
| 分类 |
商业参数
| 其他名称 | WM1841CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250VAC | 连接器类型 - 电压输入 | Crimp |
机械参数
| 深度 | 2.54 mm | 间距 | Not Required mm |
| 重量 | 0.16 g | 包装方式 | Reel |
| 导线线规 | 20-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Cable |
| 封装形式 | tape | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 12.4 mm |
| 包装数量 | 12000 | 连接器 - 电缆 | contact |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 40µin (1.02µm) | 线规或范围 - mm² | 0.205...0.519mm2 |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 12000 | 类型 | Power |
| 连接器性别 | PIN | 系列 | Micro-Fit 3.0™ 43031 |
| 适配器系列 | Micro-Fit 3.0 | 单元数量 | 12000 |
| 工具类型/特性 | MX-63812-0800, MX-63819-0000 | ||
环境参数
| 工作温度 | -40C to 105C | ||
