点击放大查看

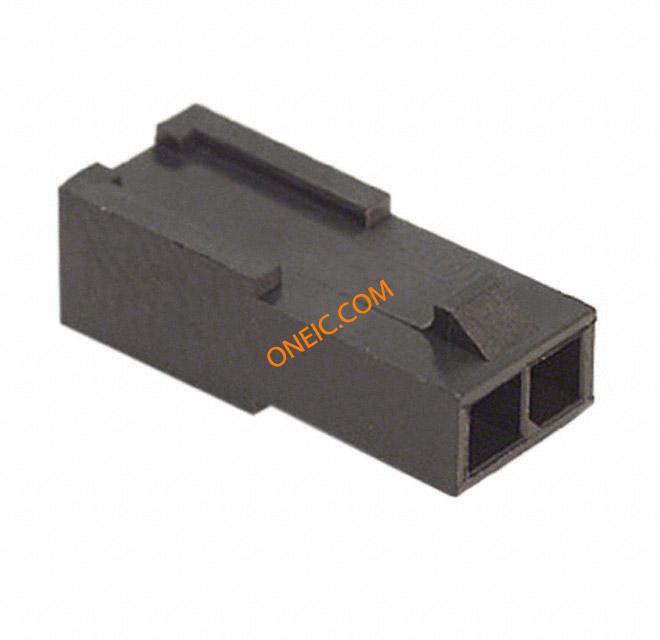

0436400201
| 制造商 | Molex, LLC |
| 描述 | Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag CONN PLUG 2POS 3MM SINGLE ROW Plug; wire-board; male; 3mm; PIN:2; Series: Micro-Fit 3.0; 5A |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 5A | 最小输入电压 | 250VDC|250VAC |
| 连接器类型 - 电压输入 | Crimp | ||
机械参数
| 颜色 | Black | 深度 | 24.53 |
| 间距 | 0.118" (3.00mm) | 重量 | 1 g |
| 包装方式 | Bag | 方向 | straight |
| 触点形式 | Male Pin | 触头类型 | Male Pin |
| 柱间距 | 3mm | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 安装样式 | for cable |
| 排数 | 1 | 锁定特性 | lock |
| 壳体材料 | Polyester | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | M |
| 系列 | Micro-Fit 3.0™ 43640 | 适配器系列 | Micro-Fit 3.0 |
| 单元数量 | 1 | 输出配置 | Free Hanging (In-Line) |
文档与媒体
相关型号
0436450200
Molex, LLC
Buy now, ships today. 0436450200 - 2 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. View datasheets, pricing and availability from DigiKey now!
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
Buy now, ships today. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. View datasheets, pricing and availability from DigiKey now!
0430310001
Molex, LLC
Buy now, ships today. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. View datasheets, pricing and availability from DigiKey now!
0430310008
Molex, LLC
Buy now, ships today. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. View datasheets, pricing and availability from DigiKey now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag

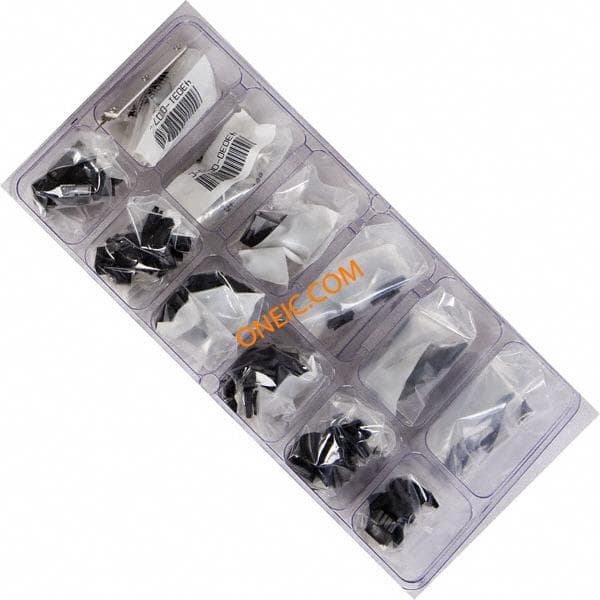

76650-0159
