点击放大查看

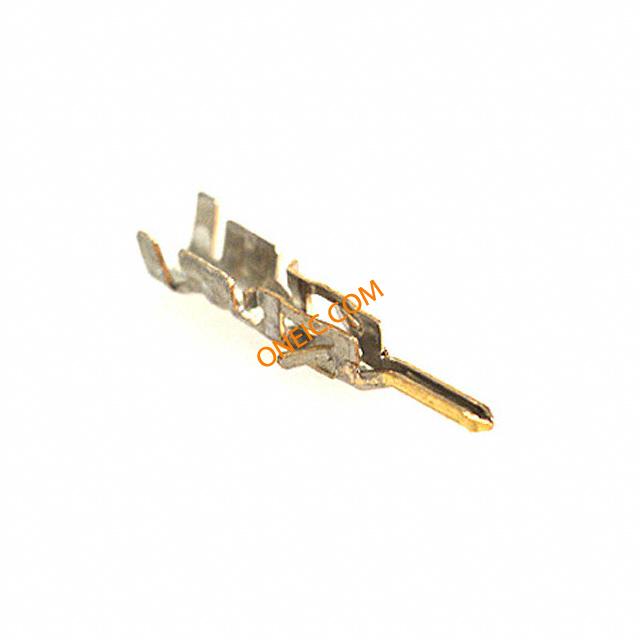

0430310009
| 制造商 | Molex, LLC |
| 描述 | Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 交货时间 | 27 Days | 子类别 | Connector Contact |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 5 A |
| 最小供电电压 | 250V | ||
机械参数
| 间距 | Not Required mm | 包装方式 | Bag |
| 导线线规 | 20-24 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 触点数 | Not Required | 接触件端接 | Crimp |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 行业别名 | 43031-0009, 430310009 | 适用产品/相关产品 | 0430310003 |
