43640-0901
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 9POS 3MM SINGLE ROW Headers & Wire Housings 3MM MICRO-FIT Plug House 9 CKT Conn Housing PL 9 POS 3mm Crimp ST Bag |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0436400901 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 2.5 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Bulk | 触头类型 | Male Pin |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 紧固类型 | Locking Ramp | 安装样式 | Panel |
| 排数 | 1 | 壳体材料 | Polyester |
| 触点数 | 9 | 接触件端接 | Crimp |
| 位数 | 9 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 系列 | 43640 | 产品子类型 | Wire Housings |
| 应用细节 | Power, Wire-to-Wire | ||
文档与媒体
相关型号
0430310012
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG GOLD
0430310002
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Reel Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; crimped
0430310007
molex
Contact M Crimp ST Cable Mount Bag Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG TIN Contact; male; 0.205÷0.519mm2; 20÷24AWG; Micro-Fit 3.0; tinned
0430310011
Molex, LLC
. 0430310011 - Pin Contact Gold 26-30 AWG Crimp Power from Molex. from now!
0430310001
Molex, LLC
. 0430310001 - Pin Contact Tin 20-24 AWG Crimp Power from Molex. from now!
0430310008
Molex, LLC
. 0430310008 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310009
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 20-24AWG GOLD Conn Contact M 1 POS Crimp ST Cable Mount Bag
0430310003
Molex, LLC
. 0430310003 - Pin Contact Gold 20-24 AWG Crimp Power from Molex. from now!
0430310010
Molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 26-30AWG TIN
0430310004
Molex, LLC
. 0430310004 - Pin Contact Tin 26-30 AWG Crimp Power from Molex. from now!

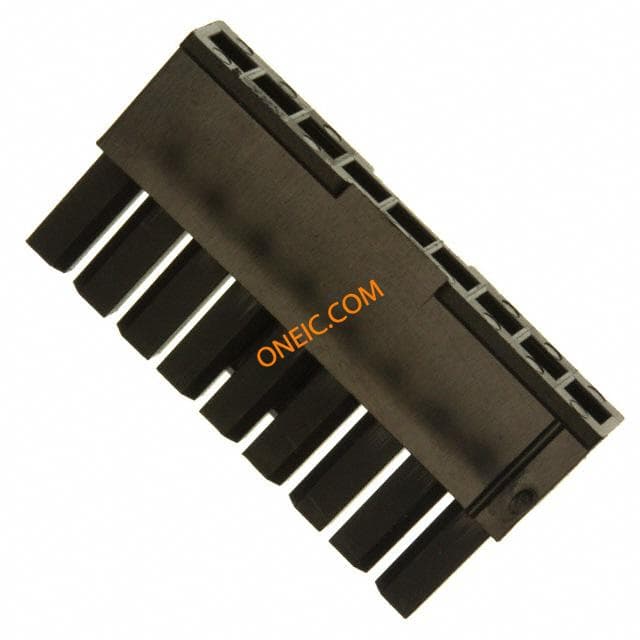

43645-0900
